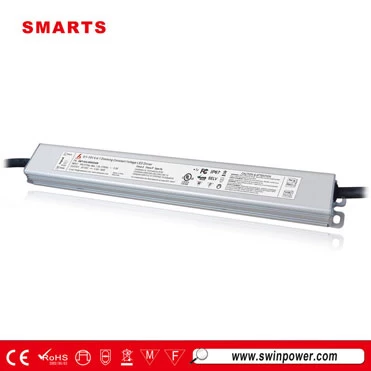

24v 96w class 2 slimline power supply for outdoor use

SMT-024-096VDSW is 24v 96w class 2 slimline power supply for outdoor use,it's IP67 design for indoor dry,wet or damp environment installations.


  • Size330*32*23mm
  • Dimming mode0-10v dimmable
  • Working Modeconstant voltage
  • Output Current4.0amp
  • Output Voltage24vdc
  • Input Voltage100-277VAC
  • CertificationcUL/UL, FCC,Class P, Type HL, RoHS

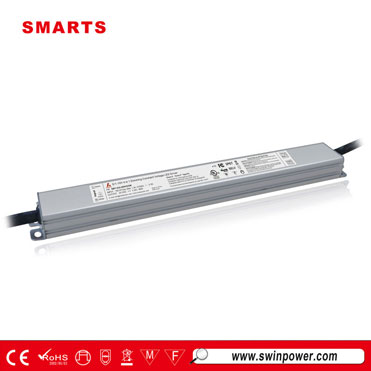

 24v 96w class 2 slimline power supply for outdoor use

Smarts 100-277vac slimline power supply class 2 24v 96w with 0-10v dimming have a widely uses, such as aluminum Channel, Mirror lighting projects ,Linear projects.


  Feture


·Output constant voltage

·Input voltage range 100-277VAC

·UL, cUL listed, class 2,Class P approval

·Built-in PFC function / Efficiency > 84% / PF> 0.99

·Dimming range: 0~100%

·Protections:short circuit/over voltage/over heat

·IP67 design for indoor dry,wet or damp environment installations

·Cooling by free air convection

·0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1

·Full protection aluminum housing, for dry, damp, wet location

·Strong compatibility, flicker-free dimming

·Suitable for LED lighting and moving sign applications

·Compliance to worldwide safety regulations for lighting

·7 years warranty





24v dimmable led power supply


  Specification



model

SMT-012-100VDSW

SMT-024-096VDSW

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

8.33Amp

4Amp

Rated power

100W

96W (class 2)

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC

Frequency Range

47~63HZ

Power Factor ( Typ.)

PF>0.99/110V ;  PF>0.95/277V

THD(Typ. ) @ full load

<10%@120VAC  <15%@277VAC

Full Load Efficiency(Typ.)

84%@120VAC, 86%@277VAC

85%@120VAC, 88%@277VAC

AC Current(Typ.)

1.40A

Inrush Current(Typ.)

11A,50%,1.04ms@110V, 27A,50%,960us@277V

Leakage current

<0.50mA

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Loading

≤120% shut down o/p voltage, re-power on to recover

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40~+60℃

Working Humidity

20~95%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

UL8750 ,CAN/CSA-C22.2 No.250.13

Withstand voltage

I/P-O/P: 1.88KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC 47 CFR Part 15 ,Subpart B

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,,11, ,

Alight industry level

Others

Weight

0.55Kg

Size

330*32*23mm (L*W*H)

packing

360*27*17.5mmmm , 50PCS/CTN



Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,

Rated load and 25℃of ambient temperature.

2. Tolerance:includes set us tolerance,line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
