24v 96W triac & 0 10v constant voltage dimmable led driver power supply junction box

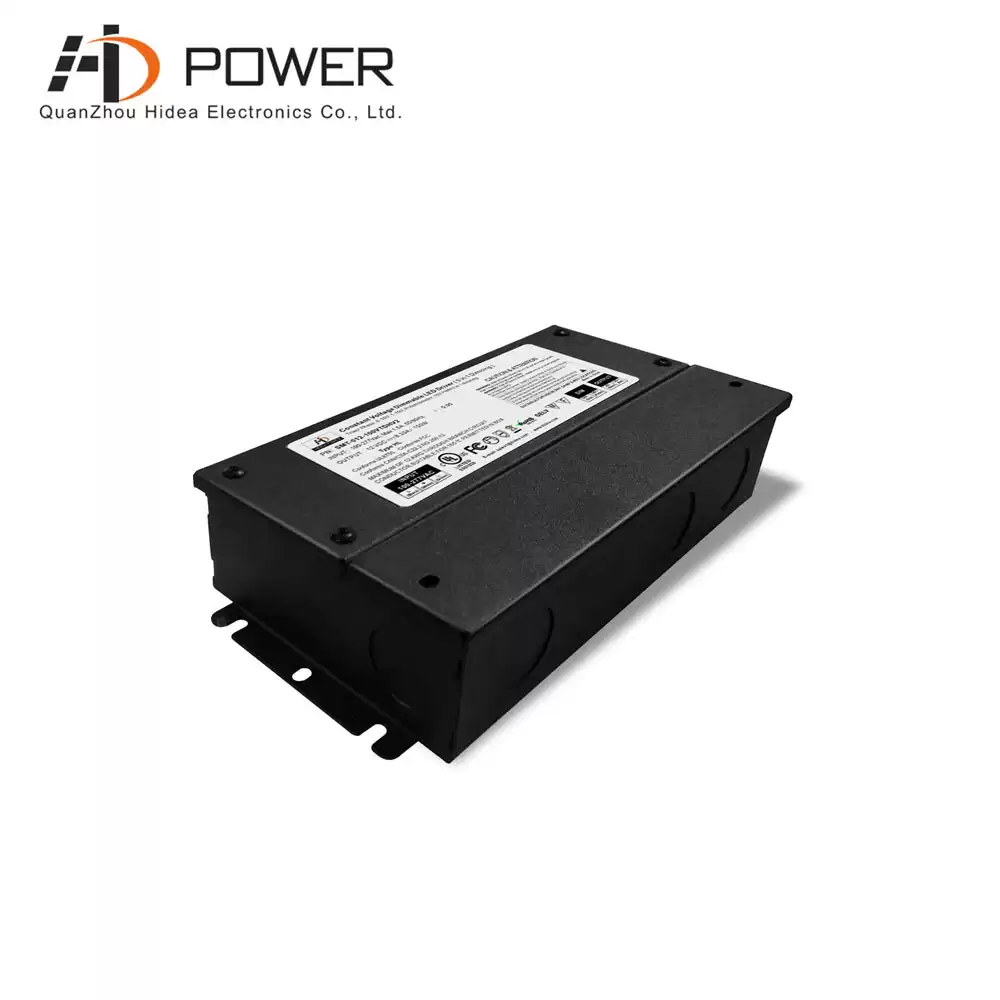

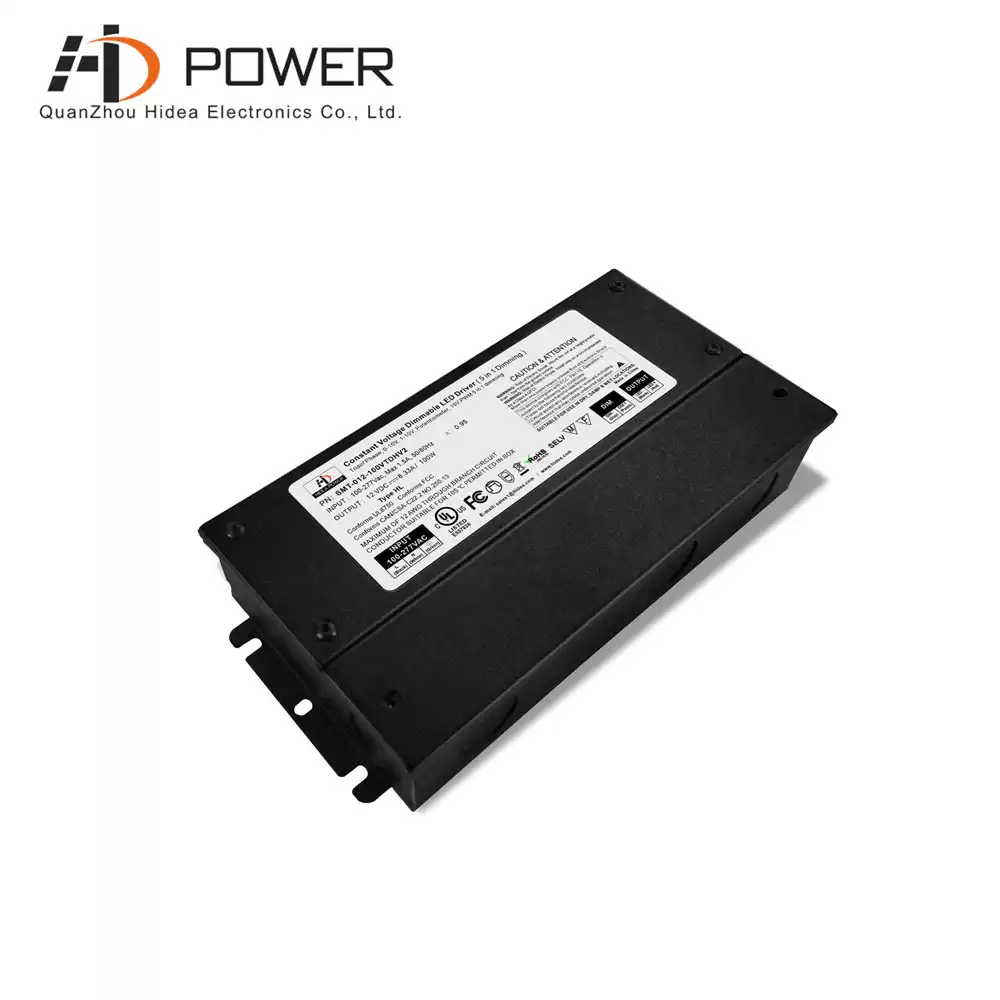

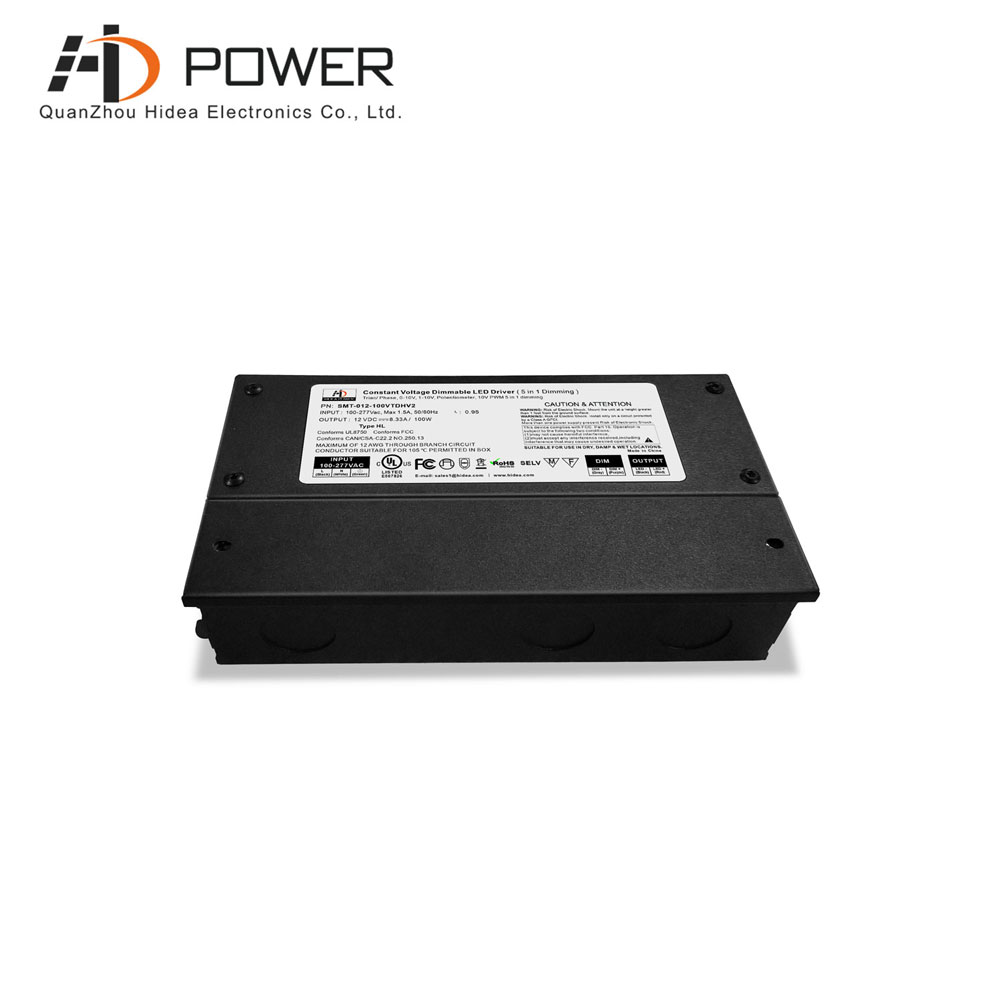

This 24v 96W dimmable led power supply is integrated with the junction box. It has a metal shell with good heat dissipation and is easy to install. The dimming mode is triac & 0 10v dimmable. It is UL certified and complies with global safety lighting regulations. 7-year warranty
Specification
|
model
|
SMT-012-100VTDHV2
|
SMT-024-096VTDHV2
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
8.33A
|
4.0A
|
|
Voltage Tolerance
|
±0.5V
|
|
Load Regulation
|
±1%
|
|
Rated power
|
100W
|
96W
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(Typ.)@ full load
|
0.98@120VAC 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@ full load
|
83% @120Vac 86%@277Vac
|
|
AC Current(Max.)
|
1.3A@100VAC
|
|
Inrush Current (Typ.)
|
20A, 50%, 1.6ms
|
|
Leakage current
|
<0.50mA
|
|
protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
About 1.3Kg
|
|
Size
|
220*94.5*40mm (L*W*H)
|
|
packing
|
10PCS/CTN (L*W*H)
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type
No flicking 100-277vac input triac +0-10v 5 in 1 dimmable led driver 12v 100w,is UL,Class P, type HL, can matched with our Lumens linear lighting optical acrylic to meet UL together.
Related Products

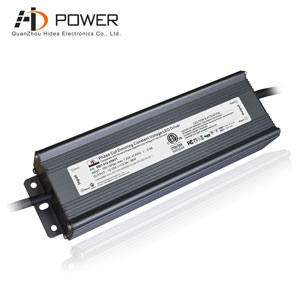

12v 96W triac dimmable led driver input voltage is 170-265vac, waterproof grade ip67, aluminum shell design, easy and fast installation, suitable for outdoor lighting project installation and use, with 5-year warranty
Mode：SMT-012-096VT
intput voltage：170~265V AC
Efficiency > 83%
Size：230*68*45MM （L*W*H）
Weight：1.2Kg/pcs
|
