24v constant voltage 60w led driver for led lighting

100-240vac non- waterproof IP20 plastic case 24v 60w class 2 led driver for led lighting


  • Certificationce
  • Dimming modenon-dimmable
  • Size185*63.5*22.5mm
  • Working Modeconstant voltage
  • Output Current2.5amp
  • Output Voltage24vdc
  • Input Voltage100-240V

24v constant voltage 60w led driver for led lighting

SMT-024-060VWP class 2 constant voltage 24v constant voltage led driver which is Input:100~240vAC / 47-63HZ,Output : 24V @2.5A 60W, Energy transfer: AC-DC, 2 years warranty led driver.

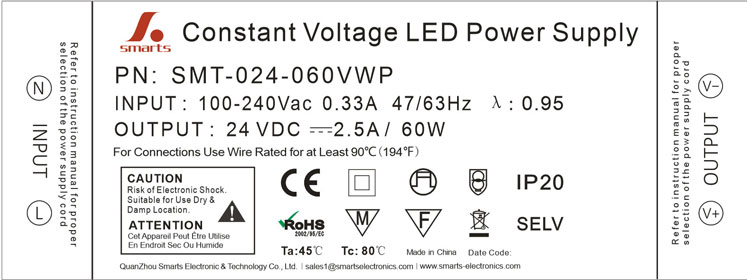

  Label for 60w led driver:

60w constant voltage led driver


  Specification:

MODEL SMT-012-060VWP
SMT-024-060VWP
OUTPUT DC VOLTAGE 12V
24V
RATED CURRENT 5.0Amp 2.5Amp
VOLTAGE RANGE 0-5.0A 0-2.5A
RATED POWER 60Watt 60Watt
RIPPLE&NOISE(max) 300mV 300mV
VOLTAGE TOLERANCE ±5% ±5%
LINE REGULATION ±1% ±1%
LOAD REGULATION ±2% ±2%
INPUT VOLTAGE RANGE 100-265VAC 100-265VAC
FREQUENCY RANGE 47-63Hz 47-63Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.) ﹥83% ﹥83%
AC CURRENT(Typ.) 0.69A/110VAC, 0.34A/220VAC 0.69A/110VAC, 0.34A/220VAC
PROTECTION SHORT CIRCUIT Protection type:recovers automatically after condition is removed
OVER CURRENT overload protected@145-160% above peak rating
OVER LOAD 5.7A 3.2A
OVER VOLTAGE Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT WORKING TEMP. -10~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY 20~99% RH non-condensing
STORAGE TEMP.,HUMIDITY -40~+80℃,10~99%RH
SAFETY&EMC SAFETY STANDARDS EN61347-1;EN61347-2-13; CE /ROHS approval
WITHSTAND VOLTAGE I/P-O/P:2KVAC  I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC Test Standards EN55015;EN61000-3-2;EN61000-3-3;
EN61547;EN61000-4-2,3,4,5,6,8,11;
NOTE 1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25 of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.


  Applications:


Our products are widely used in various industries, such as
* indoor LED illuminating lights
* LED Neon
* LED urban Decoration
* LED Lighting Advertising,
* LED Display
* Safety Protection Apparatus
* Telecommunications
* Networks
* Vehicle Lights Controller Panels,etc.



  Packing:



led driver 220v

MOQ: 1 PCS

Payment : T/T  Western union  Paypal  Credit Card

Delivery : within 7 working days for sample order ,  13 working days for 500pcs

Shipping term : FedEx  DHL  UPS  TNT  Air /Sea Transportation


  Question:

Can ordinary power supply be operated at low temperature? To work in the outdoor -40C, how long is the warranty period?

  Answer:

Do not work at ultra-low temperatures. -40 It's too cold. The startup will be abnormal. A typical power supply is at the limit of -20 degrees. If you are low, it will not start or work abnormally.
To achieve ultra-low temperature, you need to change the special large capacitor at the input to reach about -30 degrees.
