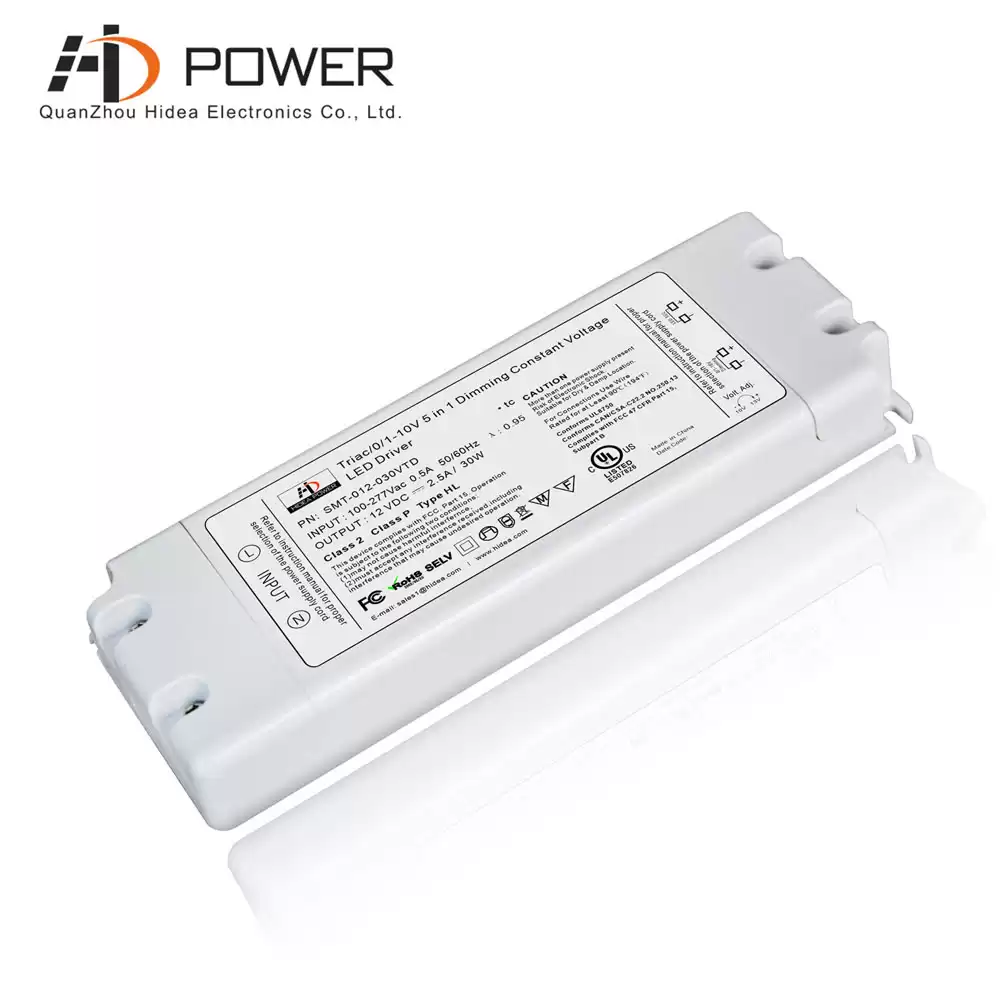

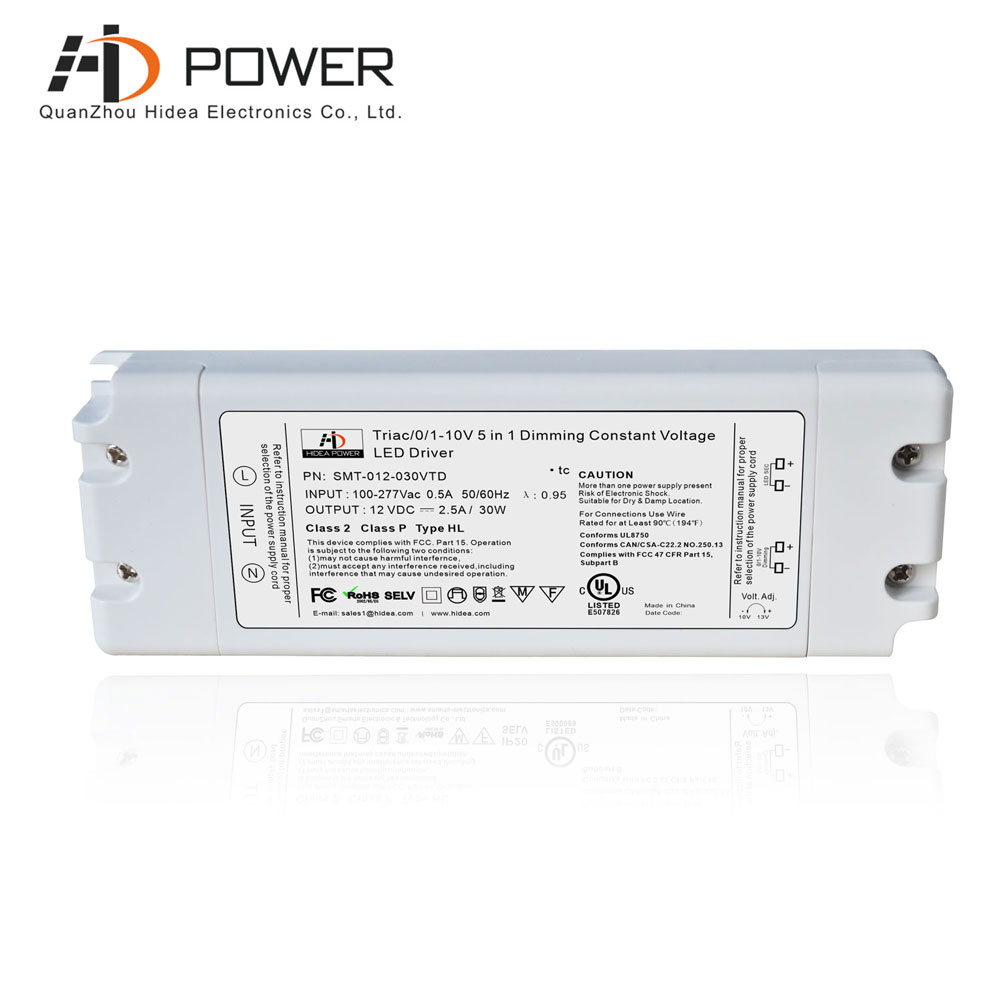

24v constant voltage triac & 0 10v dimmable led driver power supply selv ip20
This 30W dimmable led power supply has built-in PFC function, PF>0.97, constant voltage working mode, working efficiency up to >80%, and can be very compatible with Amax Lighting’s 30W LED downlight to achieve smooth flicker-free dimming.
Specification
|
model
|
SMT-012-030VTD
|
SMT-024-030VTD
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
2.50A
|
1.250A
|
|
Load Regulation
|
±1%
|
|
Rated power
|
30W
|
30W
|
|
Input
|
Voltage Range
|
100-277V AC
|
|
THD(Typ. ) @ full load
|
<20%@120VAC &277VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
0.99@120VAC 0.98@277VAC
|
0.99@120VAC 0.95@277VAC
|
|
Full Load Efficiency(Typ.)
|
79%@120VAC 80%@277VAC
|
79%@120VAC 80%@277VAC
|
|
AC Current(Typ.)
|
0.5A
|
|
Inrush Current (Typ.)
|
7A, 50%, 420us @120VAC; 12A, 50% , 480us @277VAC
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Loading
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20 - 95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40 - +80℃,10 - 95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0 - 50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310 , CAN/CSA-C22.2 No.250.13
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
Others
|
Weight
|
About 0.25Kg
|
|
Size
|
155*54*20mm (L*W*H)
|
|
packing
|
Carton size: 350*240*130mm , 40PCS/CTN (L*W*H)
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type
300pcs high quality leds built on FPCB board will give off super bright light to light up whole room, bedroom, living room, kitchen, mirror, TV, under counter, wardrobe after installed with triac dimmable led drivers. My Beauty Lights dimmable led strips are with high color rendering feature(Ra≥70), which will make us see goods clearly to better protect eyes.
Related Products
|
 30W triac dimmable led driver with plastic shell, constant voltage working mode, dimming range from 0-100%, suitable for indoor lighting projects in dry areas, with 5-year warranty
Mode：SMT-012-030VT
Dimming Mode : triac Dimming
Output Power : 30W
intput voltage：170-265VAC
Size：180*60*34mm （L*W*H）
|
