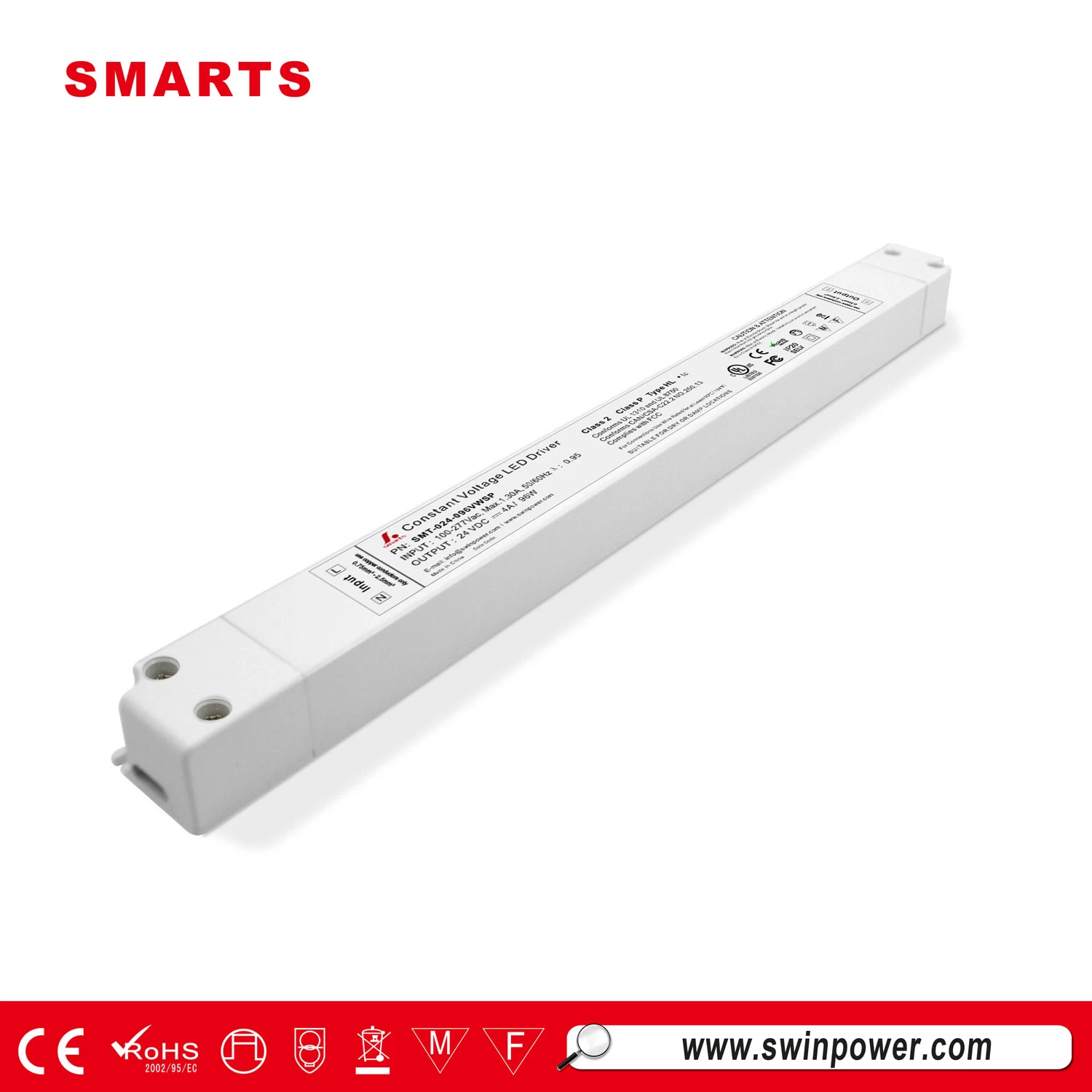

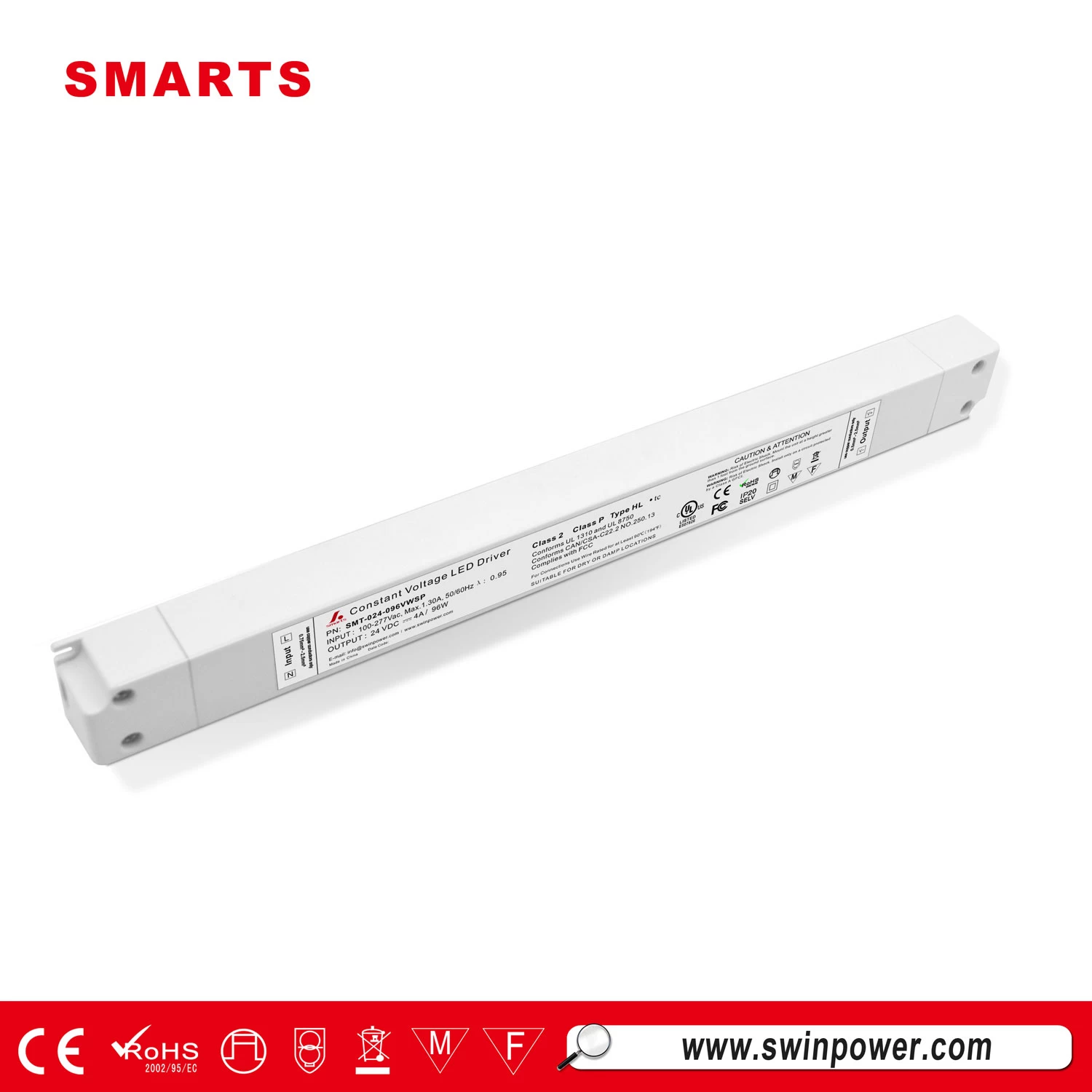

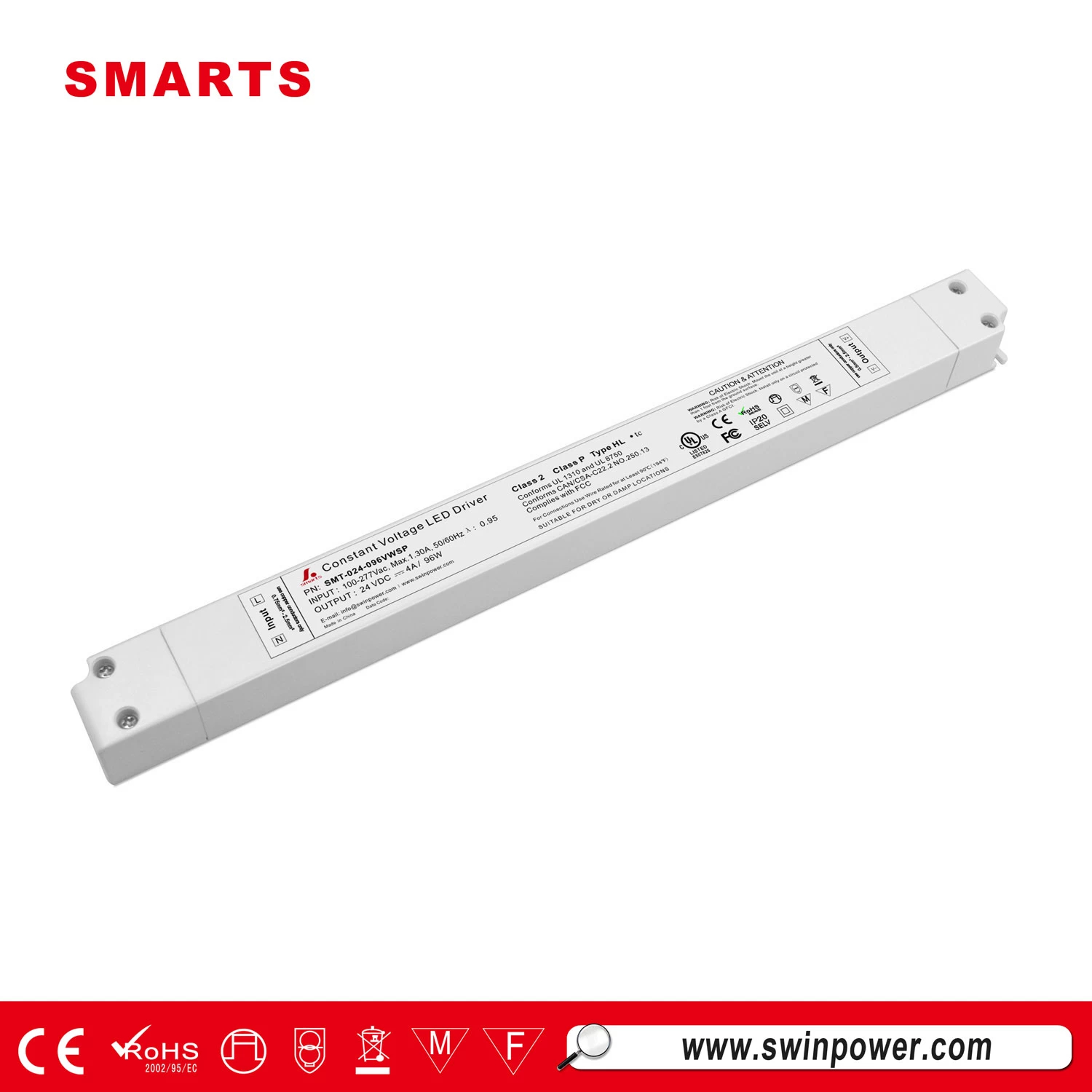

24V DC Small LED Driver Electronic LED Strip Light Transformer
SMT-024-096VWSP Series is a range of 100W IP20 rated PFC LED lighting led driver transformer offering 100 ~ 277VAC wide ranging AC input voltages, compliance to worldwide safety regulations for lighting. UL1310 Class 2 power unit.
What LED Drivers Smarts Electronics do?
LED Lighting Power Supplies from Smarts Electronics are available in ranges from 6W to 6000W and come in many different forms for both indoor and outdoor LED lighting installations. Our Constant Current LED Lighting Power Supply range offers currents from 350mA to 2100mA; whilst the Constant Voltage LED Lighting Power Supply range starts at 12V going through to 48V.
Both types of LED lighting power supply offer high efficiencies, PFC, are available with Class II or Class I Input; IP ratings against dust and moisture from IP20 through to IP67 and protection for short circuit, over voltage, overload and over temperature conditions. With additional options such adjustable outputs and PWM, 1-10V, Resistive or triac dimming functions.
Features :
·Output constant voltage
·Input voltage range 100-277VAC
·CE listed, Class 2, Class P, CE, ROHS approval
·Built-in PFC function / E fficiency > 84% / PF> 0.99
·Protections:short circuit/over voltage/over heat
·IP67 design for indoor dry environment installations
·Cooling by free air convection
·IP20 type for dry location
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·7 years warranty
|
model
|
SMT-012-100VWSP
|
SMT-024-096VWSP
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
8.33Amp
|
4Amp
|
|
Rated power
|
100W
|
96W (class 2)
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
0.99@120VAC; 0.98@230VAC; 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<15%@120VAC <20%@230VAC <20%@277VAC
|
|
Full Load Efficiency(Typ.)
|
83%@120VAC; 85%@230VAC; 85%@ 277VAC
|
|
AC Current(Typ.)
|
1.4A/100VAC / 0.82A/230VAC / 0.43A/277VAC
|
|
Inrush Current(Typ.)
|
7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC; 12A,50%480us@277VAC
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13
|
|
Withstand voltage
|
I/P-O/P: 3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100M Ohms/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance to EN55015,EN61000-3-2 (≥60%load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry
|
|
Others
|
Weight
|
0.40Kg
|
|
Size
|
330*30*22mm (L*W*H)
|
|
packing
|
50PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 220VAC, 277VAC input ,
Rated load and 25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|

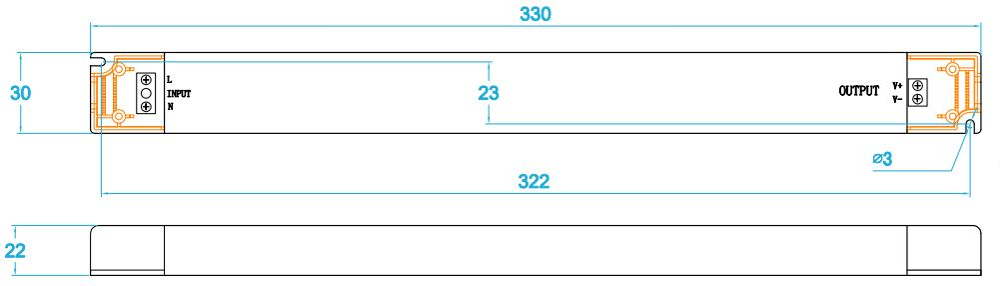

Mechanical Specification for 100 watt led driver:
² Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
² Output: Red is(Possitive +),Black is(Negative -)

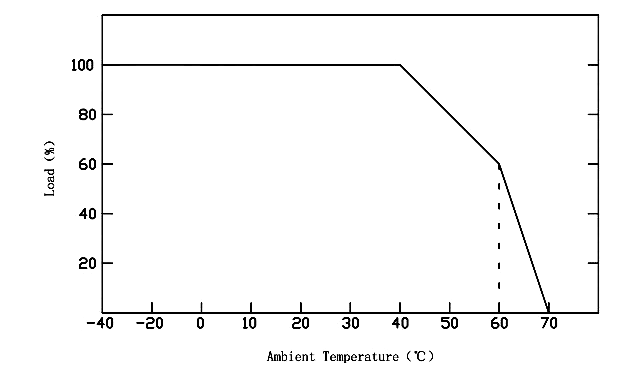

Derating Curve for LED transformer 12V:
Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life

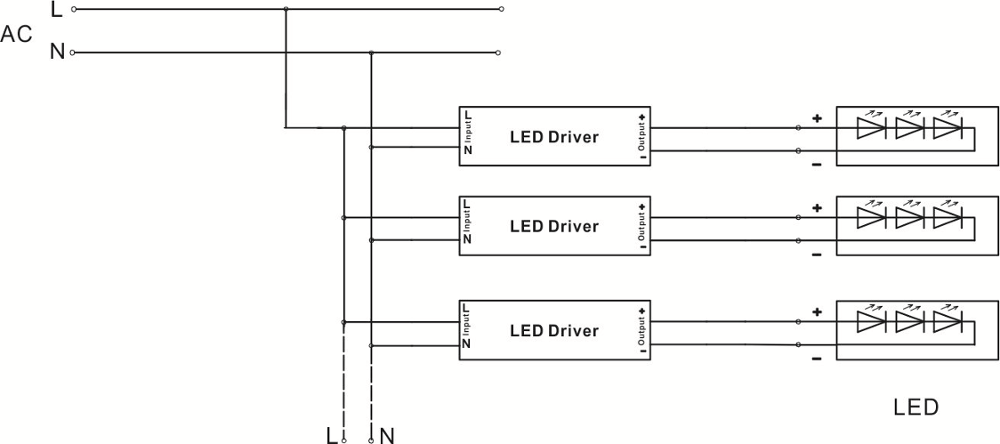

Connecting Diagram for LED transformer 100W:
