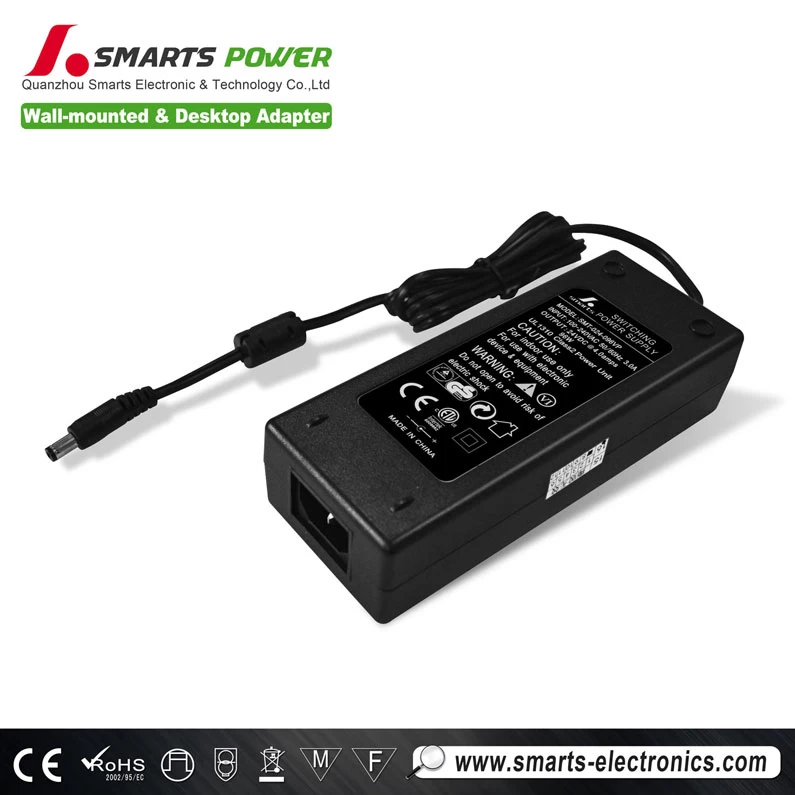

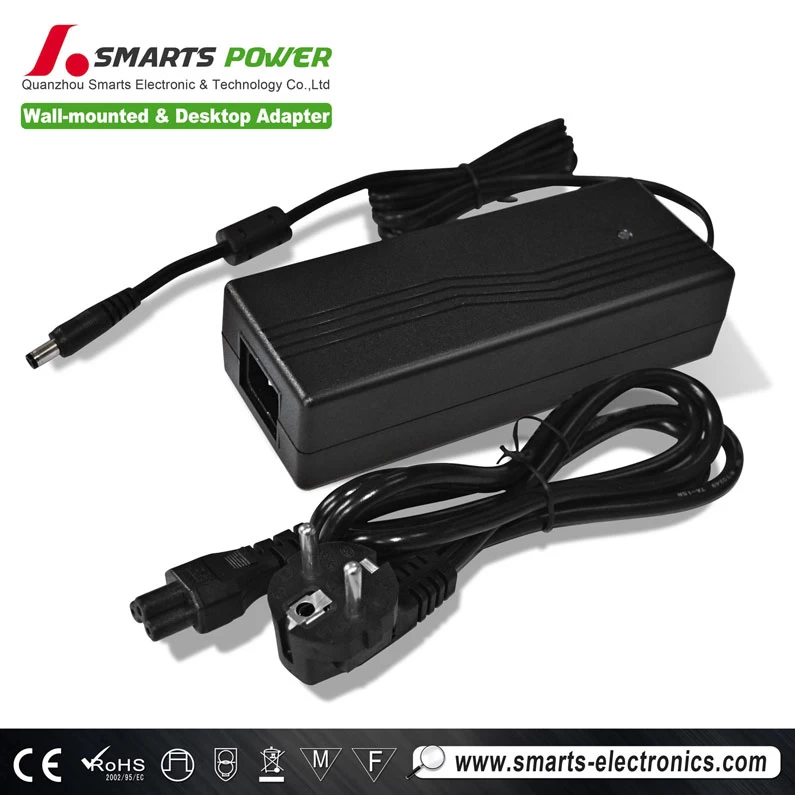

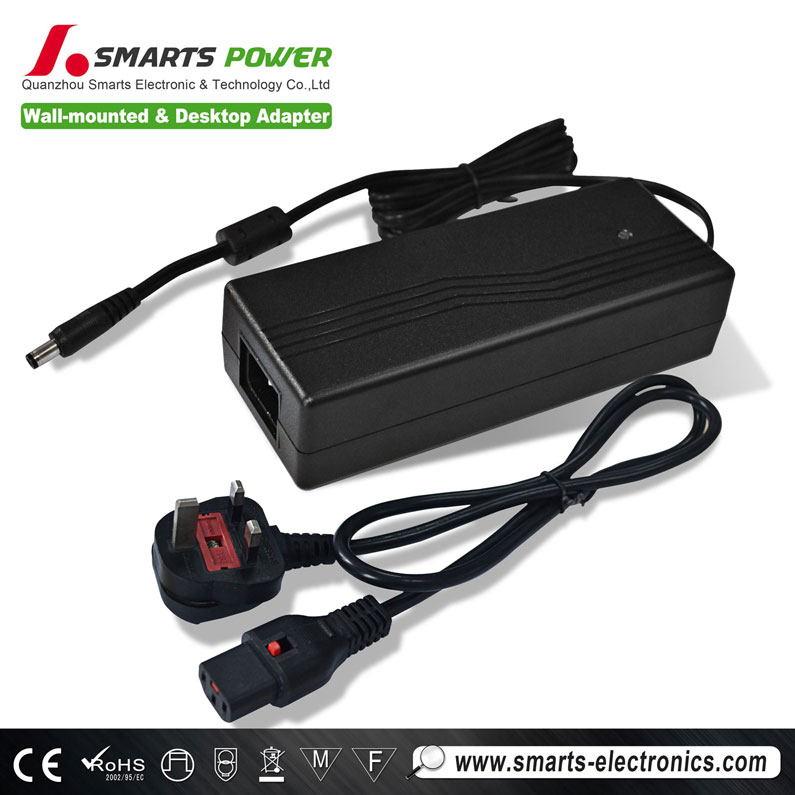

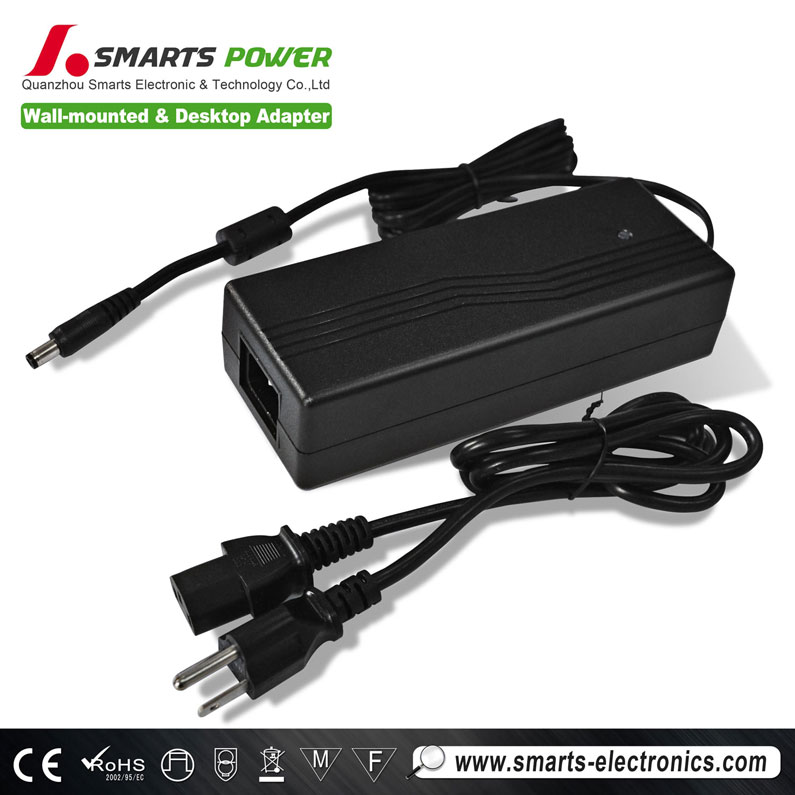

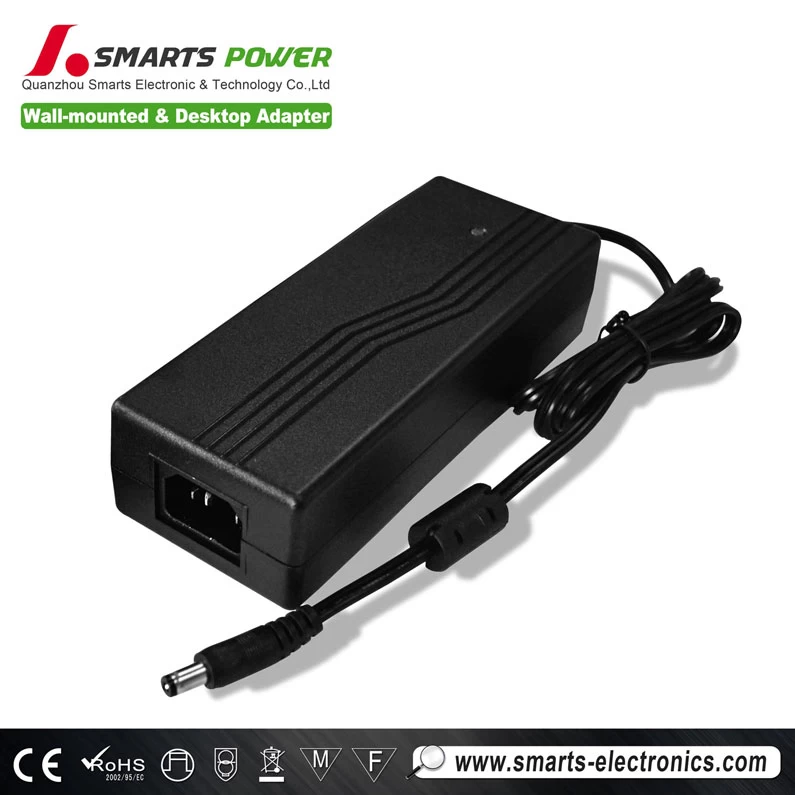

24v desktop100w power adapter
Features :
• Universal AC input: 100~240Vac
• Protections: Short circuit / Overload
• No load power consumption < 0.5W /Over voltage
• 2 pole US / European type plug
• Fully enclosed plastic case
• Class II power (without earth pin)
• Pass LPS for 12V, 24V
• Full output 12v, 24v safety approved
• 18 months warranty
Feature:
AC-DC power adapter
output: 12V ,24v ; Universal AC input:100-240v; 47-63Hz
Low ripple&noise regulation
Ac cord;EU standard ac plug,
DC cord:1.2m EU standard cord with male plug
Protections: Short circuit / Overload
No load power consumption < 0.5W /Over voltage
2 or 3 pole US / European type plug
Fully enclosed plastic case IP20
Class II power (without earth pin)
CE approval
1.5 years warranty
General Description:
AC input voltage range ............. 100~240VAC / 0.5A for18W; 100~240VAC / 0.7A for 25W
AC inrush current (max.) ........... Cold start, <30A peak at 115VAC or <50A peak at 230VAC
Overload protection................... Hiccup mode, auto-recovery
Over voltage protection ............. Clamp by zener diode > 120%
Withstand voltage...................... I/P-O/P: 4242VDC, 1minute
Working temperature.................. 0~40°C @ 100% load, 50°C @ 70% load
Safety standards........................ EN61347-1-2, CSA 22.2, TUV EN60950-1
EMC standards.......................... EN55022-B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,11
Length of output cable................ 180cm of 20AWG
Standard DC plug....................... P1J: 2.1øx5.5øx10mm or 2.5øx5.5øx10mm / -C+, turning fork type
desktop type LED strip power adapter:
• 2 or 3 pole AC inlet • Fully enclosed plastic case
• Class I power (with earth pin) • Pass LPS for 12V, 24V
• Full output 5V~48V safety approved • LED indicator for power on
• Protections: Short circuit / Overload / • Approvals:CE
Over voltage • 18 months warranty
General Specification:
AC input voltage range ............. 100~240VAC / 1.9A
AC inrush current (max.) ........... Cold start, <40A at 230VAC
Overload protection................... Hiccup mode, auto-recovery
Over voltage protection .............110~140% rated output voltage
Hold up time............................... 16ms at full load
Withstand voltage...................... I/P-O/P: 42VDC, 1minute
Working temperature.................. 0~40°C @ 100% load, 50°C @ 70% load
Safety standards........................ TUV EN60950-1 approved
EMC standards.......................... EN55022-B, EN61000-3-2,3
Length of output cable................180cm of SPT-1,18AWG x2C
Standard DC plug....................... P2J: 2.1x5.5x10mm / C+, barrel type
|
Item No.
|
output voltage
|
current
|
power
|
Tol.
|
R&N
|
Effi.
|
IP Rate
|
|
SMT-012-100VP
|
12V
|
8.3A
|
100W
|
±4%
|
100mV
|
>81%
|
IP20
|
|
SMT-024-100VP
|
24V
|
4.16A
|
100W
|
±4%
|
180mV
|
>81%
|
IP20
|
