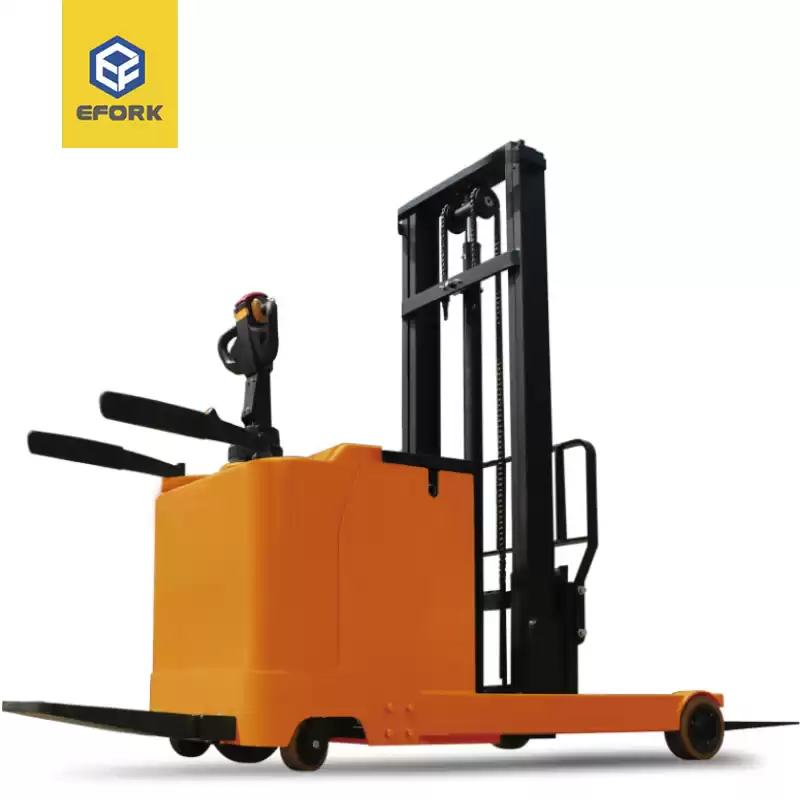

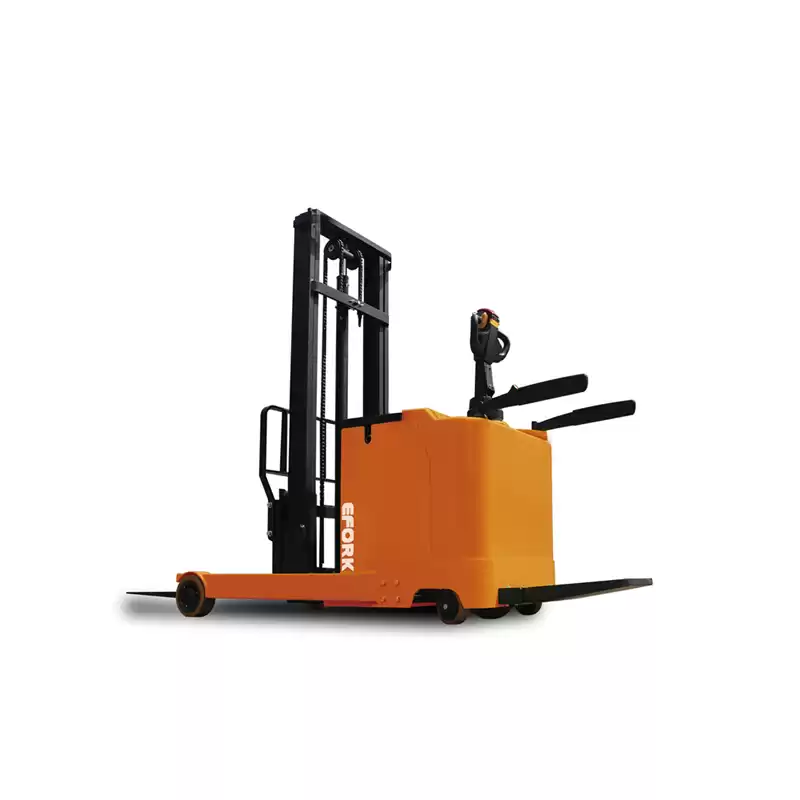

Product Name:24V Small Standing-On Drive Reach Truck
Product Advantage:
The Electric Reach Truck with large forward stroke brings smaller channel experience, battery electric drive.
●Horizontal handling and stacking of medium cargo;
●Medium and long distance transportation and stacking;
●Also can be used in closed pallet, pallet height from the ground is very small and shelves at the bottom of the leg space and other occasions;
Applicable to：
Medium storage density and high working turnover rate;
Narrow aisle stacking;
Specification
|
Name
|
Electric reach truck（Standing type）（24V）
|
|
Model
|
Unit
|
CQD15A-25
|
|
Capacity
|
Kg
|
1500
|
|
Mast type
|
|
Duplex mast
|
|
Max. lifting height
|
H（mm）
|
2500
|
|
Load center
|
C（mm）
|
500
|
|
Wheel type
|
|
Polyurethane tire （PU）
|
|
Fork size
|
（mm）
|
1070*100*35
|
|
Fork spread
|
（mm）
|
210-680
|
|
Overall length include fork
|
L（mm）
|
2335
|
|
Overall width
|
S(mm)
|
1034
|
|
Mast reach distance
|
(mm)
|
500
|
|
Height--Mast Lowered
|
H1（mm）
|
1840
|
|
Mast height,fork raised(with load-backrest)
|
H2（mm）
|
3416
|
|
Min.stacking.aisle
|
(mm)
|
2675
|
|
Turning radius-pedal closed
|
WQ（mm）
|
1740
|
|
Max.Walking Speed
|
Km/h
|
4.0/5.0
|
|
Grade ability
|
%
|
5-8
|
|
Total Weight
|
Kg
|
1900
|
|
Driving wheel
|
mm
|
Ø230*75
|
|
Front wheel
|
mm
|
Ø210*85
|
|
Balance wheel
|
mm
|
Ø150*50
|
|
Battery capacity
|
V/Ah
|
24/210
|
|
Charger
|
|
24/30
|
|
Driving motor
|
Kw
|
1.5
|
|
Lifting motor
|
Kw
|
2.2
|
|
Drive Controlling Type
|
|
1.5（AC）
|
|
Walking Adjustable Type
|
|
Holzer accelerator
|
|
Quote
|
RMB
|
|
Basic configuration：
1、USCURTIS Control system，Stepless speed regulation；
2、24V/210AH Lead acid battery；
3、24V/30A External intelligent charger
4、Imported ZF gearbox, AC drive motor
5、Special channel steel formast
6、High wear resistant polyurethane wheel
7、Electromagnetic brake
8、Electronic steering
