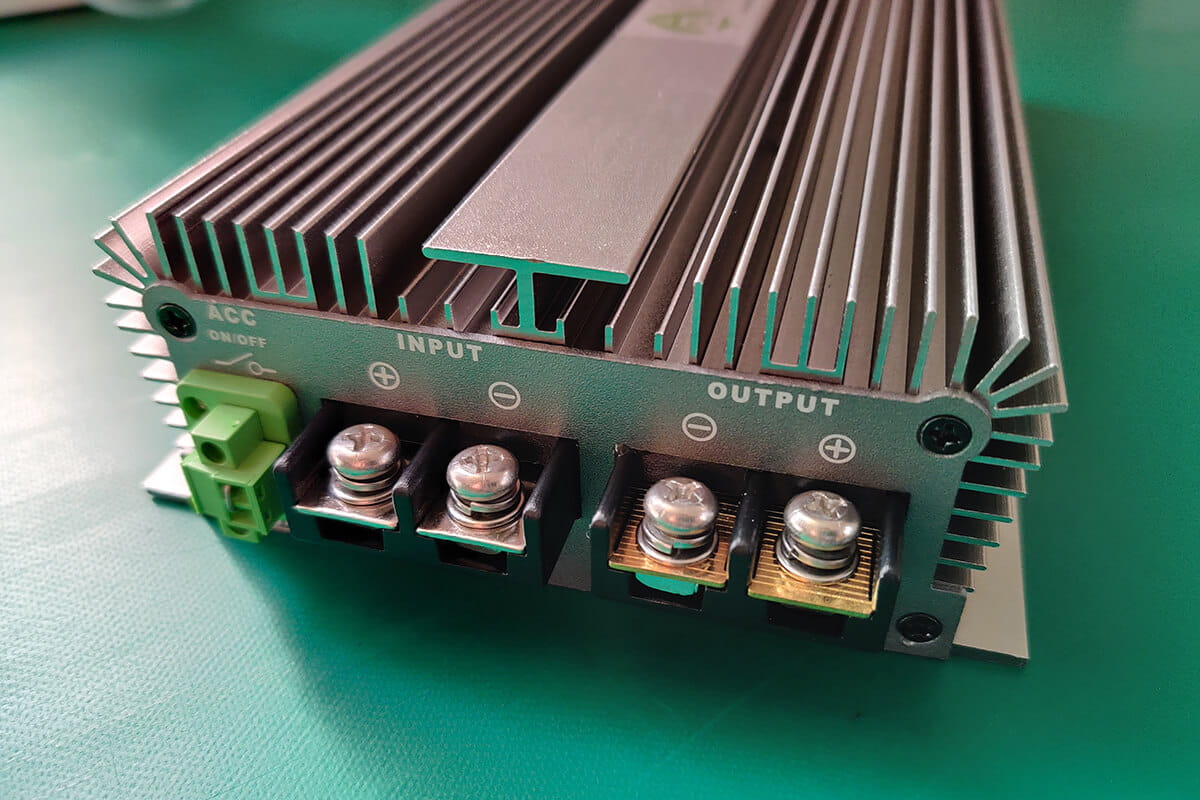

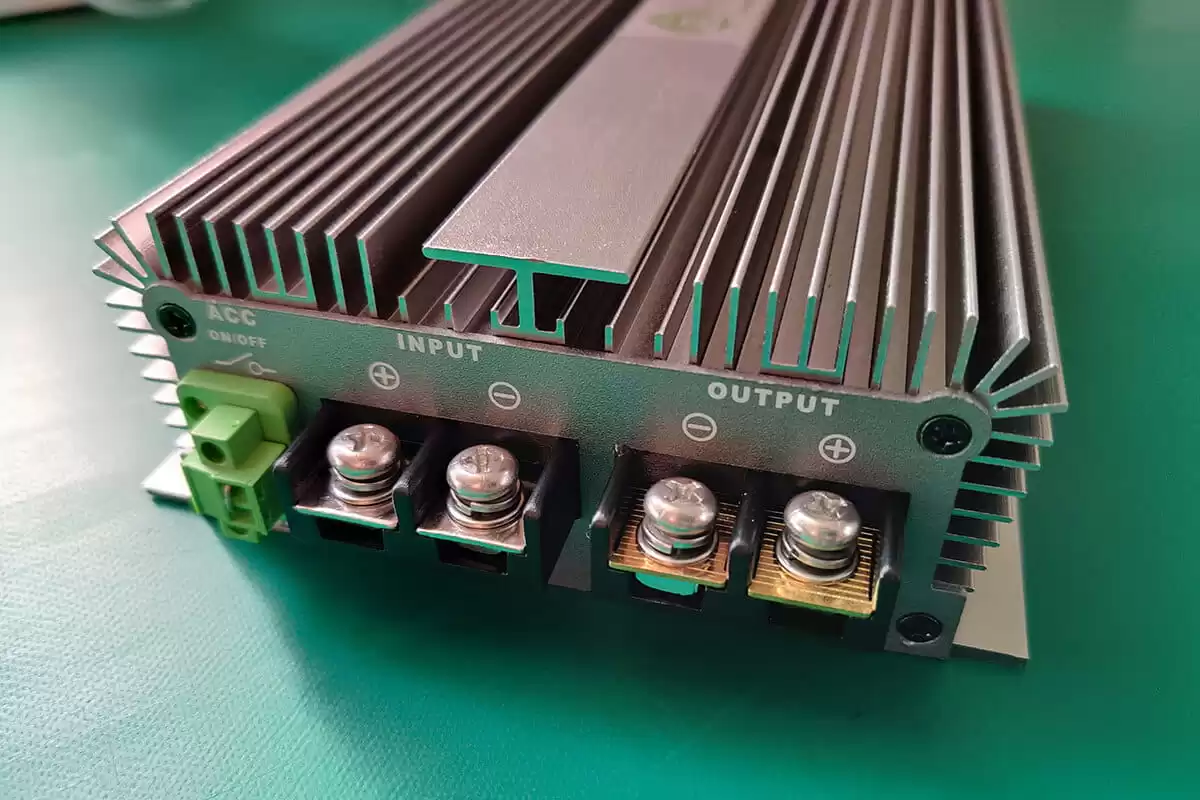

24V to 29.2V 20A DC to DC booster converter 600W boost module voltage regulator
Voltage Boosting Capability: The AJPOWER 24V to 29.2V 20A DC to DC Booster Converter has the ability to boost the voltage from 24V to 29.2V, providing compatibility with higher voltage systems or devices.
High Power Output: This booster converter can manage heavy power loads and supply enough power for a variety of applications with a maximum power output of 600W.
Efficient Voltage Regulation: The voltage regulator maintains a dependable and constant power supply for attached devices or systems by ensuring steady and precise voltage output.
Wide Range of Applications: This booster converter is suitable for a wide range of applications, including solar power systems, electric vehicles, or other systems that require a specific voltage level within the given range.
Compact and Reliable Design: The AJPOWER booster converter features a compact and reliable design, allowing for easy installation and ensuring long-lasting performance and durability.
 |
MODEL |
AJP2429JL600E |
| Rated output power (W) |
600W |
| Rated input voltage (V) |
24VDC |
| Rated output voltage (V) |
29VDC |
| |
|
Input
Characteristics
|
Voltage (V) |
22~34VDC |
| I/O with dual isolation |
With double battery isolation |
| No-load power consumption (W) |
＜0.4W |
| Typical Efficiency |
94% |
| |
|
Output
Characteristics
|
Voltage (V) |
29 VDC |
| Current (A) |
20A |
| Voltage regulation rate |
1% |
| |
| Characteristic |
Load Regulation |
3% |
| Ripple Voltage（mvp-p） |
< 200mv External 22UF capacitor ESR﹤0.1Ω100KHZ |
| Protection circuit and others |
Overcurrent Protection |
In the case of rated output, if it is greater than 20% of the rated current, the overcurrent protection will operate, the power will be limited and the voltage will be reduced, and it will automatically recover after the overcurrent disappears. |
| Output short circuit protection |
YES |
| Insulation |
Input-Output |
non-isolation |
| Waterproof |
Fully sealed glue filling and waterproof |
| Other |
Size |
220*130*50mm |
| Weight |
2200g |
| Rated temperature rise (°C) |
45℃ |
| Reliability |
＞100000h |
| cooling method |
Natural cooling is designed for natural cooling and heat dissipation (differences in the use environment and installation location affect the power usage), pay attention to ventilation and heat dissipation when using high power. |

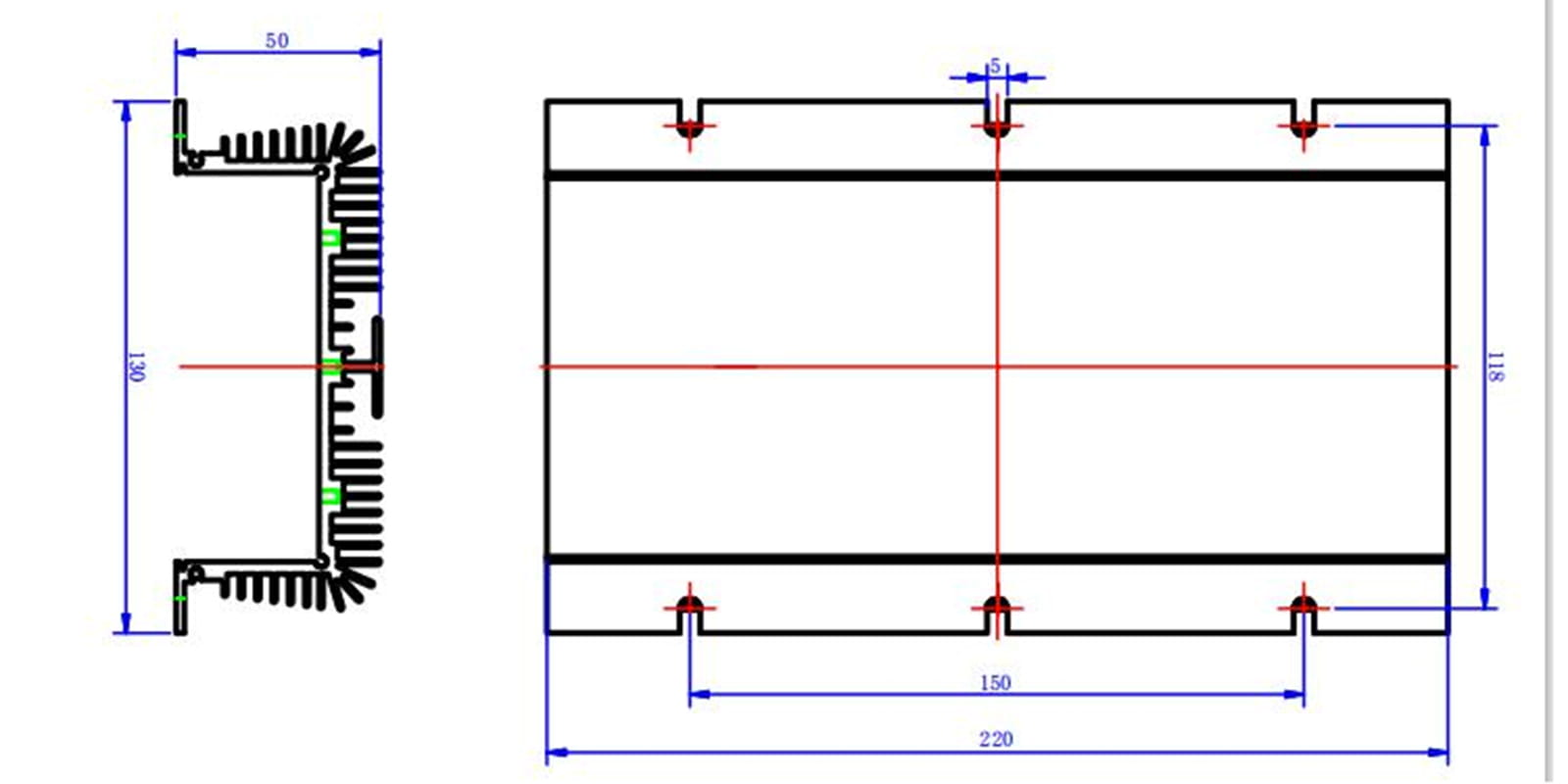

| Installation dimensions |
|
|
|

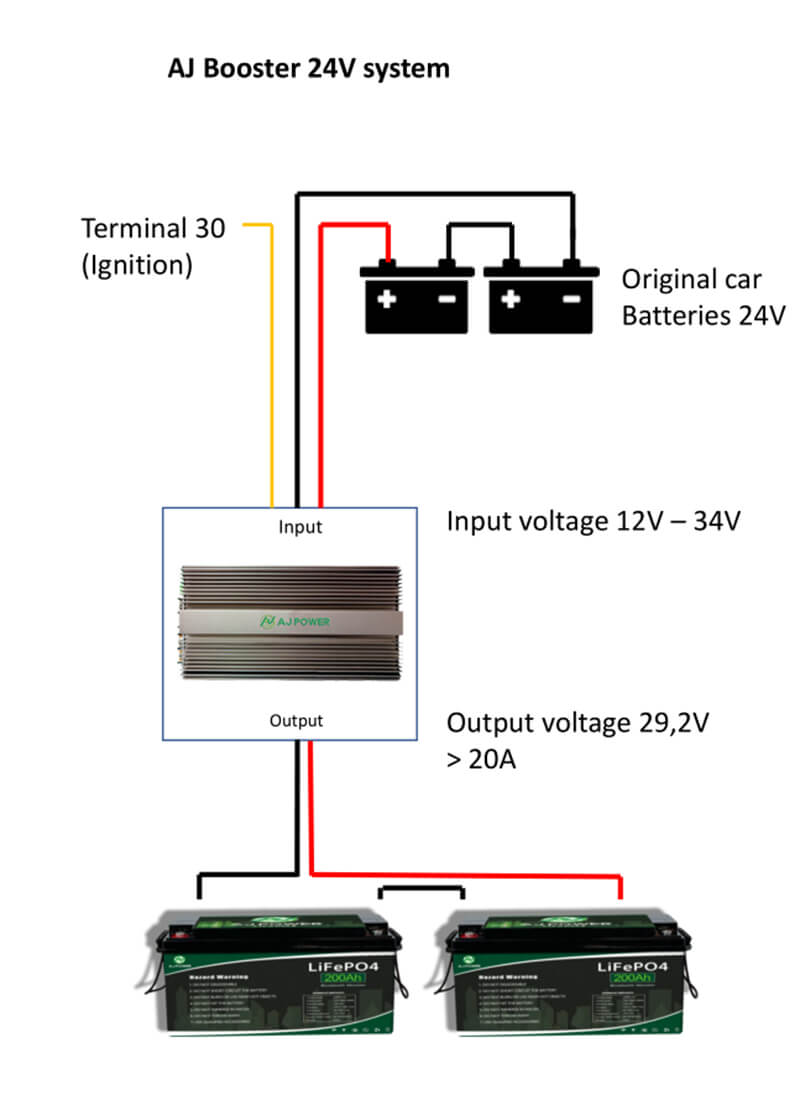

Note: The RV automatically recognizes the DC-DC charger for charging. After the original car generator is started, the DC-DC charger will automatically turn on to charge the auxiliary battery. After the original car generator is turned off, it will automatically stop charging to avoid consuming the power of the original car starter battery.
|
|
|
| 1 |
Design meeting RoHS / CE |
| 2 |
High efficiency: 94% |
| 3 |
Non-isolated between input and output |
| 4 |
Internal capacitor: NCC & NICHICON (high reliability) |
| 5 |
100% full load burn-in test |
| 6 |
Over load, Over temperature and Over voltage protections |
| 7 |
Fully sealed glue filling and waterproof |
| 8 |
12 months warranty |
