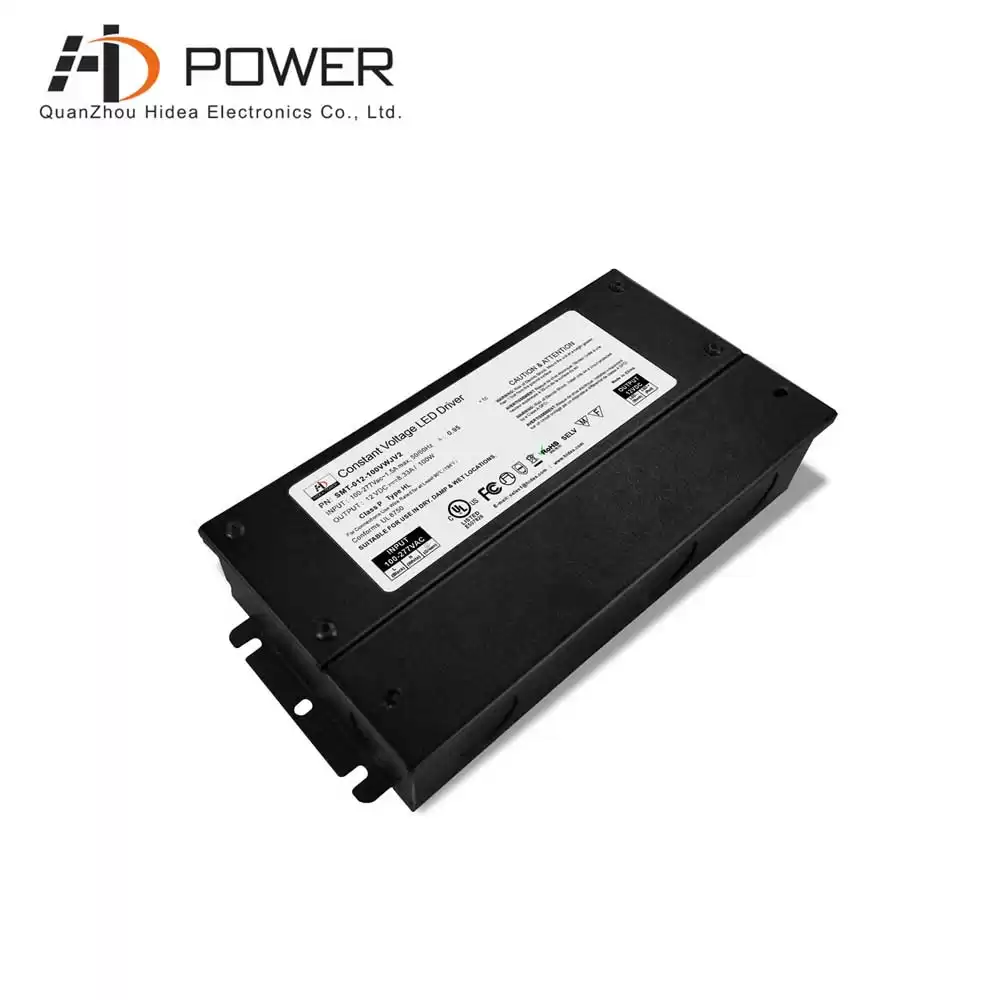

SMT-024-080VWJ is 24 volt 80w strip light power supply, AC to DC single output power supply. The aluminum case material is can be installed with Delviro Led Lighting Commercial High Bay 2′ & 4′ lengths.
Specification
|
model
|
SMT-024-080VWJ (1.0 version)
SMT-024-080VWJV2 (2.0 version)
|
|
Output
|
DC Voltage
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
|
Rated current
|
3.33A
|
|
Rated power
|
80W
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(Typ.)@ full load
|
0.99@120VAC 0.97@230VAC 0.95@277VAC
|
0.99@120V ; 0.96@230V ;0.97@277V
|
|
THD(Typ.)@ full load
|
<15%@120VAC <20%@230VAC <20%@277VAC
|
|
Efficiency(Typ.)@ full load
|
80% @120VAC 85%@230VAC 84%@277VAC
|
83%@120V 87%@230V 86%@277V
|
|
AC Current(Max.)
|
1.2A (100VAC)
|
|
Inrush Current (Typ.0
|
20A,50% ,1.6ms@120V ; 30A,50% 200us@230V ; 25A,50% 1.2ms@277V
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle, period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
1.3Kg
|
|
Size
|
1.0 version: 220*93*40mm (L*W*H) / 2.0 version: 220*94.5*40mm
|
|
packing
|
10PCS/CTN 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Compatible Light Type
UL,Class 2, Class P, CE, ROHS certification, 220*93*40mm dimension, 7 years long time warranty 24v 80w strip light power supply can match Delviro Led Lighting Commercial High Bay Commercial & Industrial grade.
Related Products
|

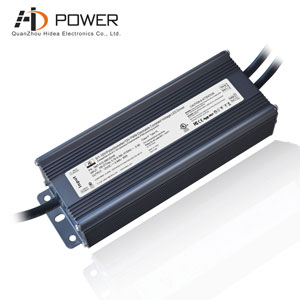

 Non-flicking 0-10v dimmable led driver, UL,FCC certificated, 7 years warranty, without load, could work well with Lutron dimmer...
