24V Water Circulation Pump For Water Heater Manufacturer
A hot water circulation pump, also known as a recirculation pump or a hot water recirculating pump, is a device used in plumbing systems to maintain a constant supply of hot water to faucets and fixtures throughout a building. The pump helps to eliminate the need to wait for hot water to reach the desired location, reducing water waste and improving overall convenience.
Thermo hot water circulation pump CRP060B is built-in the electric water heater, gas condensing boiler, instant water heater, solar water heater etc to keep hot water moving throughout the plumbing system so that it’s always available in an instant. It re-routes the cold water back to the storage tank to be heated. Basically, it creates a loop from the tap to the hot water system and back again, on a continual basis, to achieve no waiting of hot water. This micro dc pump with boosting feature, its also can be used for hot water booster or other boosting applications.

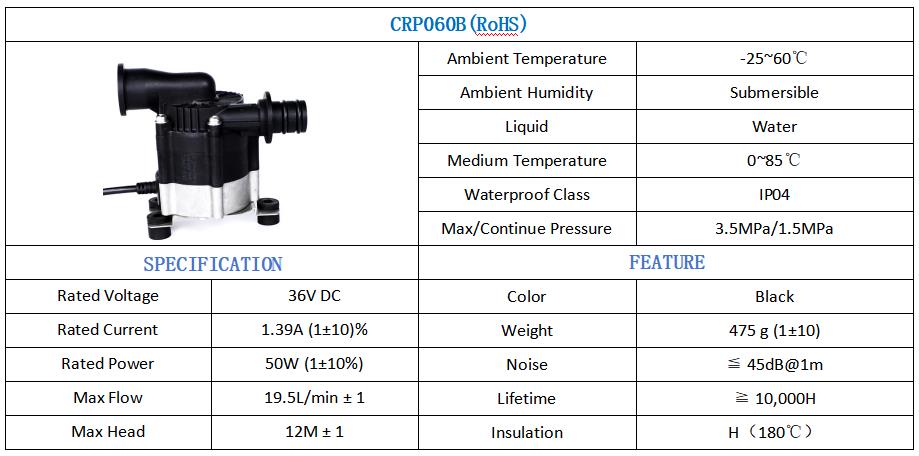

The feature of THERMO Water Circulation Pump CRP060B is:
l Compact and small size with light weight 475g
l Long lifetime ≥200,000 Times
l Lower noise ≤45dB@1m
l Dry-running protection
l Over-current protection
l Blocked protection
l Over-voltage protection
l Lower-voltage protection
l Over-temperature protection
l Constant power
l Reverse protection
l PWM Control & FG Signal Customization
l Liquid temperature range from 0~85β, Ambient temperature range from -25~60β
l Static seal design to prevent leakage

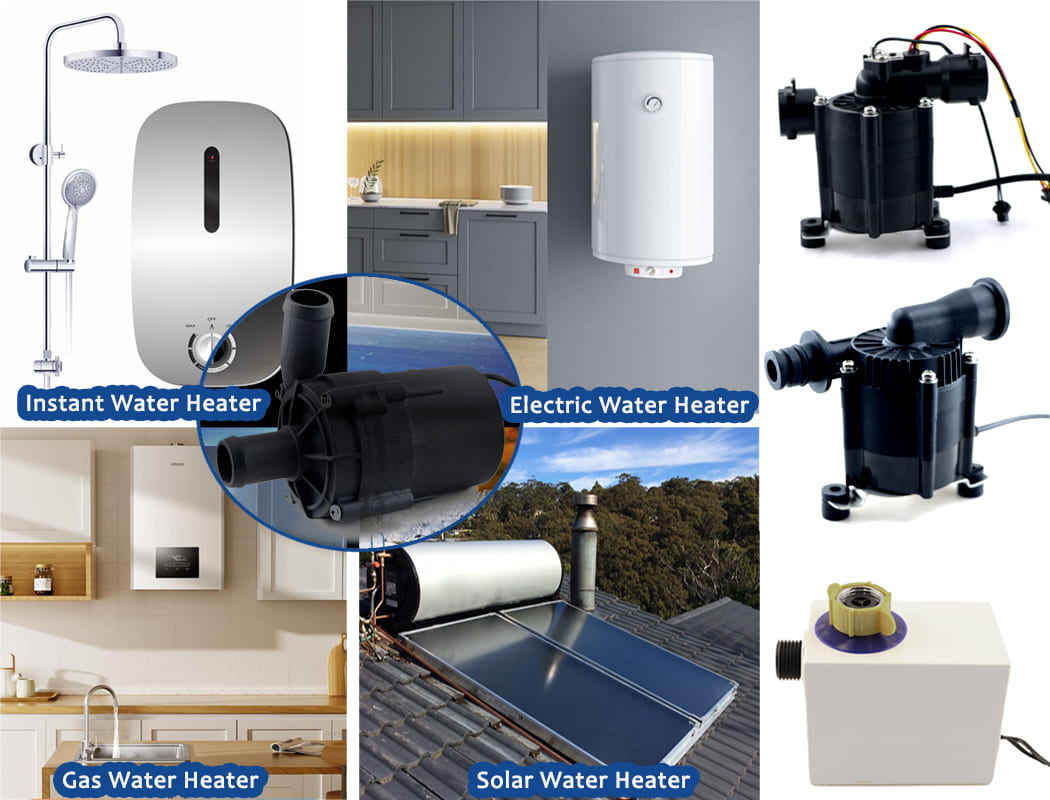

Typical Applications:
- Hot Water Circulation Systems
- Heating Systems
- Water recirculation Systems
- Boosting applications
- Electric Water Heater
- Instant Water Heater
- Electric Shower
- Air Source Water Heater
- Solar Water Heater
- Gas Water Heater
- Gas Condensing Boiler
