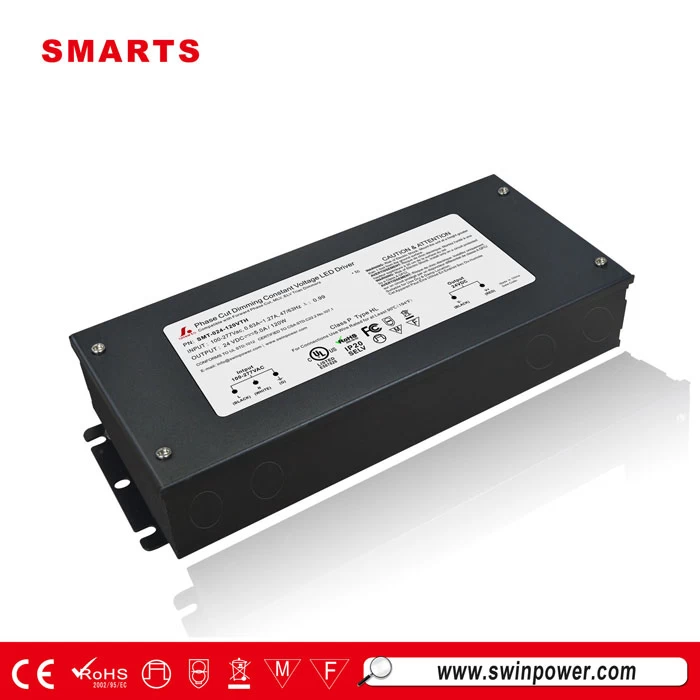

24vdc 120w Class P TYPE HL triac Dimmable LED Driver

SMT-024-120VTH is an excellent quality UL Listed 5.00A 120W 24v dimmable led transformer. Compatible with most AC wall dimmer including Lutron, Leviton and most other household dimmers.

  • Output Current5.0amp
  • Working Modeconstant voltage
  • Dimming modetriac dimmable
  • Size220*92.5*43mm
  • Certificationul,ce,rohs,fcc
  • Output Voltage24vdc
  • Input Voltage110-277VAC
Facebook Twitter Pinterest LinkedIn 分享

24vdc 120w Class P TYPE HL triac Dimmable LED Driver


Our 277VAC SMT-024-120VTH  is an excellent quality 24v dimmable led transformer. Compatible with most AC wall dimmer including Leviton, Lutron and most other household dimmers. Can be used for many LED lights including strip light, puck light, module light,led bar light and many other applications. Requires no minimum load and it is very quite without any buzz or humming noise.


  Features

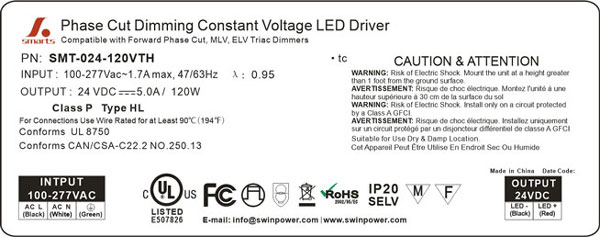

   Label

·Output constant voltage

·Input voltage range 120-277VAC

·Built-in PFC function, PF> 0.97

·Efficiency > 85% / load:0~100%

·Protections:short circuit/over voltage/over heat

·IP20 design for indoor installations

·Cooling by free air convection

·Work with leading edge and trailing edge triac dimmers available

·PWM output, does not change the color index

·Full protection aluminum housing, for dry, damp, wet location

·Strong compatibility, flicker-free dimming

·Suitable for LED lighting and moving sign applications

·Compliance to worldwide safety regulations for lighting

·7 years warranty






  Specification


model

SMT-012-120VTH

SMT-024-120VTH

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

±0.5V

Voltage Regulation

±0.5%

Load Regulation

±2%

Rated current

10.00A

5.00A

Rated power

120W

Input

Voltage Range

120~277V AC

Frequency Range

47~63HZ

Power Factor ( Typ.)

0.99@120VAC  0.96@277VAC

0.98@120VAC  0.96@277VAC

Full Load Efficiency(Typ.)

>82%

>83%

AC Current(Typ.)

1.7A@100VAC

Leakage current

<0.50mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition is removed

Over Loading

≤120% constant current limiting, auto-recovery

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Over voltage

≤140VAC(100~130V) , ≤270VAC(170~277V)

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750, UL1012

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547

Alight industry level (surge4KV)

Others

Weight

1.3Kg

Size

220*93*41mm (L*W*H)

packing

329*279*176mm , 10PCS/ctn

Notes

Can we make the 120w 150w 200w 250w constant volatge led drivers into one output?

Answer:  Yes.



Triac dimmable led driver
 dali led power supply
 0-10v led driver
 slim size led driver


  Our service & FAQ



Q1.    What's the trade terms you can do??
A1:    We accept EXW,FOB..(Optional)

Q2.    What's shipping mode can we choose?
A2:    Express, Ocean and air transportation (optional).

Q3.    What's the MOQ?
A3:    Our MOQ is 10pcs. better price for large quantity;

Q4.    What can you do if the product is broken?
A4:    We promise to replace new ones to you if there is any defective happen during the warranty period.

Q5.    Can i get products with my own logo??
A5:    Sure, you can, MOQ is 500pcs.



Q6.    Can i get a sample for testing??
A6:    Sure, but sample fees should be charged on your account.

Q7.    What's the mormal lead time??
A7:    7 working days for samples, 15 working days for mass production.

Q8.    What's the payment conditon?
A8:    All are paid before production or 30% deposit and 70% before delivery (optional)

Q9.    What's the Payment do you have?
A9:    We accept payment be sent via T/T, L/C,  Trade Assurance, WESTERN UNION, PAYPAL.
