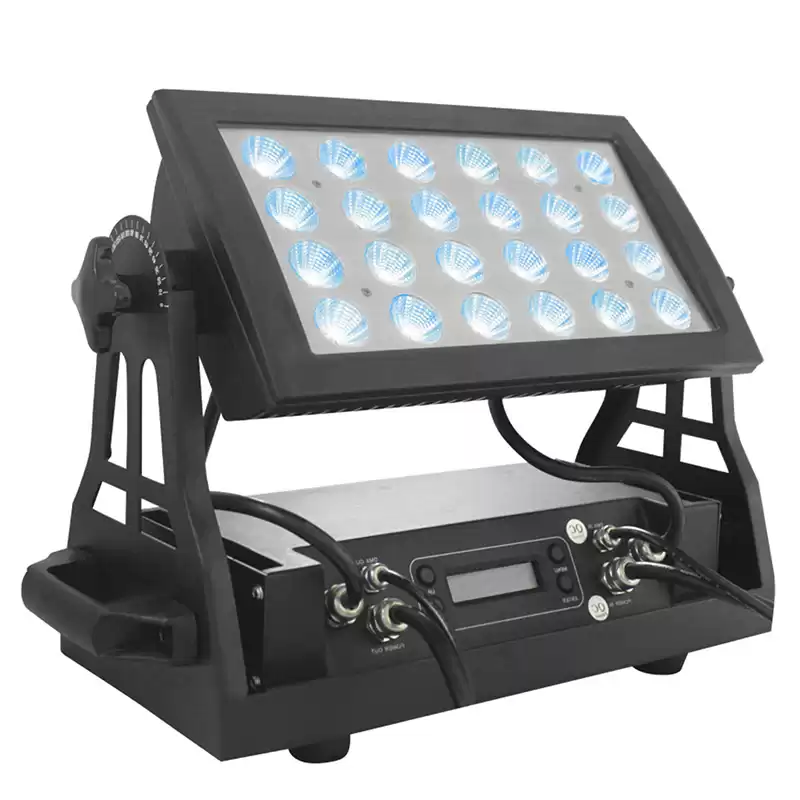

It is a uniquely designed luminaire, which can completely replace the traditional optical luminaire with excellent optical lenses. 24x10 w 4 in 1 RGBW LEDs. The lens uses shadowless technology ... Perfect curve dimming, light board The internal temperature test function makes the device more stable. The 4-state LCD screen is password protected. Channel: 3/4/5/6/11. IP: 65.
● Optics
. LED : 24x10W RGBW LED, uniform and delicate color mixing effect
. Beam angle: 45 °
. Life span: 50000H, low power consumption, energy saving and environmental protection
● Colour
. Uniform RGBW color mixing system
. White balance can be adjusted manually
● Specification
. 5 DMX channel modes: 3CH / 4CH / 5CH / 6CH / 11CH international standard DMX512 channels
. 2 control modes: DMX512, master-slave
. 10 programs can be customized and edited, and can be called from the console.
. Beam angle: 45 °
. 0-20HZ strobe
. Dimming: 0-100% linear dimming, which can control the change of light and dark of
4 colors and light off at the same time
● Display
. LCD display
. Four function buttons
● Software
. 4 dimming speeds
. LED dimming mode: LED mode and halogen lamp mode
● Other functions
. LED temperature detection system to protect the life of lamp beads
● Power / DMX connection
. Power connection: Waterproof power line input and output
. DMX connection: Waterproof signal line input and output
● Power supply
. AC100-240V 50 / 60HZ
. Power consumption : 200W
● Protection class
. Housing material: die-cast aluminum
. Waterproof level: IP65
● Working environment
. Indoor working temperature: -20 ° C ～ + 40 ° C
● Size and weight
. Packing size: 515x260x350mm
. Net weight: 13.5KG
. Gross weight: 15KG
● Certification
. CE,ROHS
