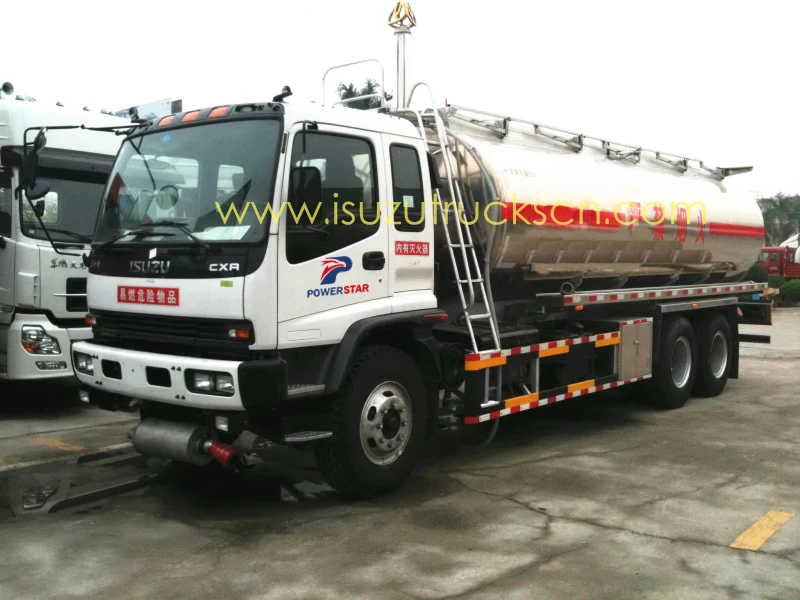

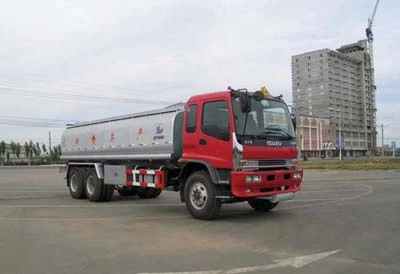

25,000L Custom Aluminum Alloy Tanker Truck ISUZU
Description:
Fuel Tanker Isuzu (also called Isuzu truck fuel tanker, oil fuel tank truck, fuel tanker, oil trucks, oil bowser, fuel bowser truck, Fuel tank truck with gear pump, Fuel bowser truck, Oil lorry truck, oil transport truck, fuel truck with dispenser) is used to transport oil, diesel, gasoline, kerosene, etc.
Our range of refueling tank truck is designed for the transport and storage of gasoline, light diesel oil, kerosene and other fuels which boast no corrosive action on the tank body, oil pump and oiling machine, etc. It has found a wide range of applications. For instance, it can be used for refueling of itself and other vehicles as well, and it can serve as a pump to transfer fuels to other containers. Hence, our refueling tank truck is commonly seen in filling stations and transport companies.
The refueling tank truck manufactured by PowerStar Trucks is designed based on latest technologies and production techniques, and it comes with rational structure, reliable performance, esthetical appearance and simple operation, etc.

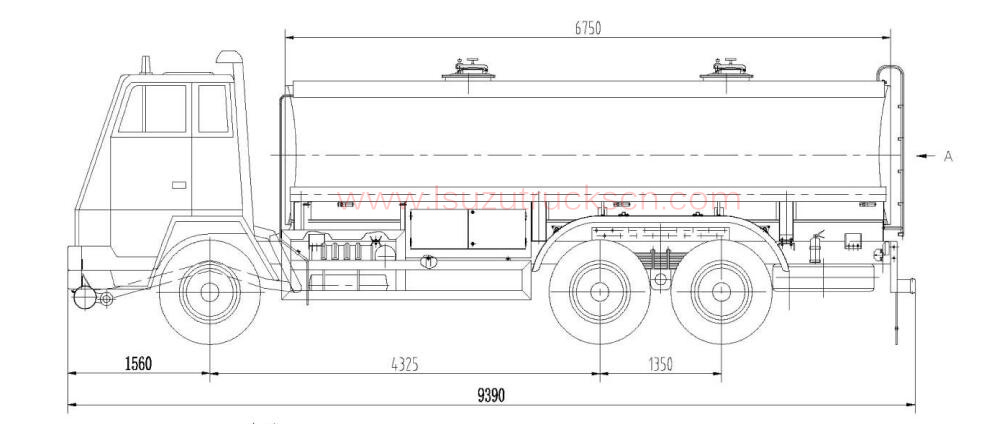

Technical drawings:
The Isuzu fuel tank transportation series, as to the whole tank truck, usage for transport the gasoline, light diesel oil, petroleum and other non-corresive fuel properties, rarely impact the damage for oil pump, generator, refullering gun,etc.
Fuel Tank Body Work:

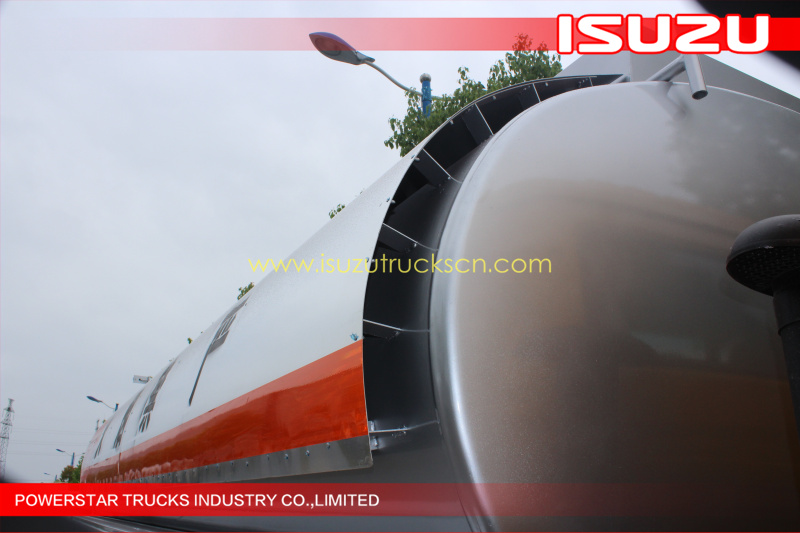

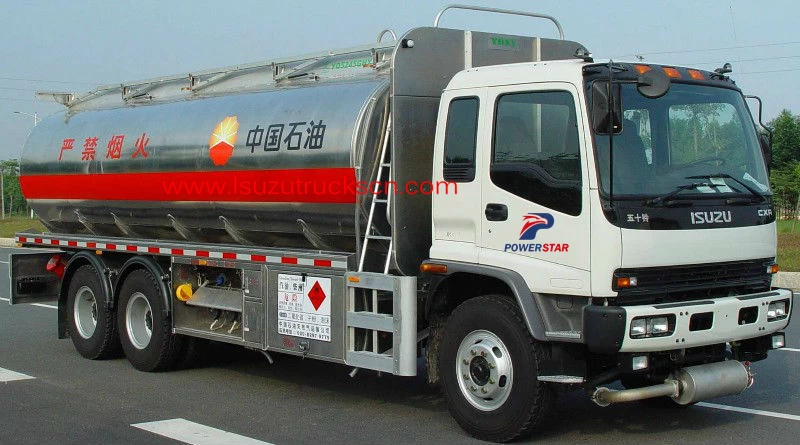

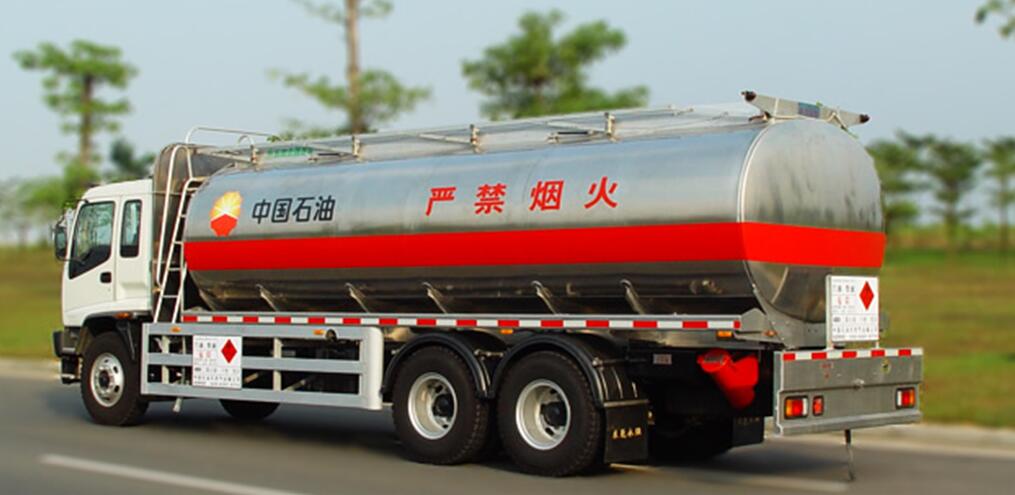

Details picture of ISUZU Fuel Tanker Truck
Optional Equipment of ISUZU Fuel Tanker Truck
 |
|
 |
|
 |
|
 |
| Computer Fuel Dispenser |
|
API Adaptor Valve |
|
Bottom Valve |
|
Manhole Cover |
 |
|
 |
|
 |
|
 |
| Ball Valve |
|
Three Ways Set Ball Valve |
|
Level Gauge |
|
Oil and Gas Recovery Valve |
Main specifications:
Model
|
PT5250GJY
|
Driving Type
|
6x4 (Left hand drive)
|
Wheelbase
|
4350+1300 mm
|
Engine
|
206 kw (280hp)
|
Tyre
|
12.00-20
|
Tank
|
Material:
|
Carbon steel(Q345)
|
Shell Body
|
5 mm nominal thickness
|
Head
|
6 mm nominal thickness
|
Baffles
|
3mm nominal thick, wave shape, four pieces with Ø 500mm service port
|
Tank shape
|
Ellipse
|
Capacity
|
Full capacity 18000L
|
Compartment
|
No
|
Shell Finish
|
Shot blasted with 1anti-rust, 1 base coat and 1 finishing coat, the color of tank is according to customer requirement.
|
Testing Pressure
|
36kPa, Water pressure test
|
Tank Fittings
|
Top inlet port
|
2pieces
|
Manhole Cover
|
Aluminum alloy, 20” self-latching manhole cover, with air-van.
|
Outlet port:
|
One pneumatic sea valve which at the front of tank, the size of outlet port is 3 inches, fix all connector.
|
Pipe box:
|
It made of PVC material, round shape which on the both sides of tank, one plastic pipe (5m)
|
Anti –Static System:
|
Static electricity plate , copper plate and earth cable reel
|
Tank Accessories
|
Ladder:
|
Stainless Steel ladder fixed at rear of tank
|
Walkway Platform:
|
It fixed on the top of tank with anti – skid surface treatment.
|
Handrail:
|
No
|
Fire Extinguisher Housing:
|
2 units, suitable for 4 kg’s fire extinguisher
|
Pump Device
|
Yes
|
Flow meter
|
Yes
|
Tool box
|
Small box
|
Color
|
As option
|

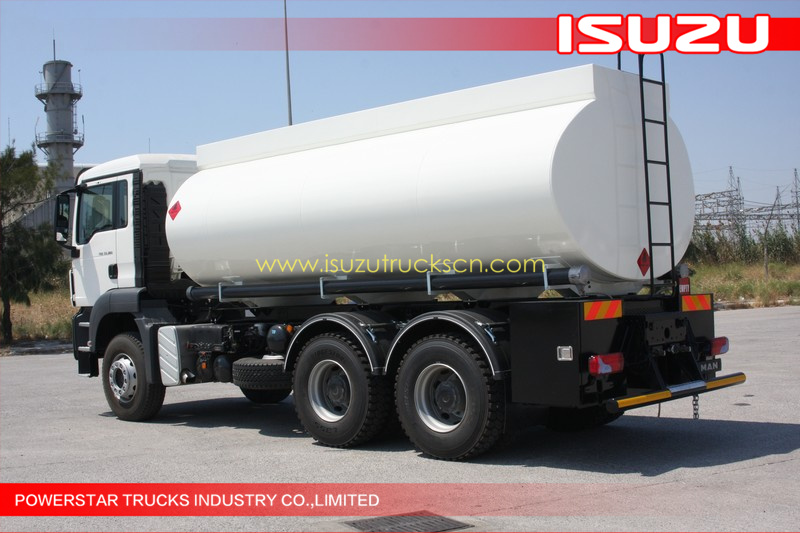

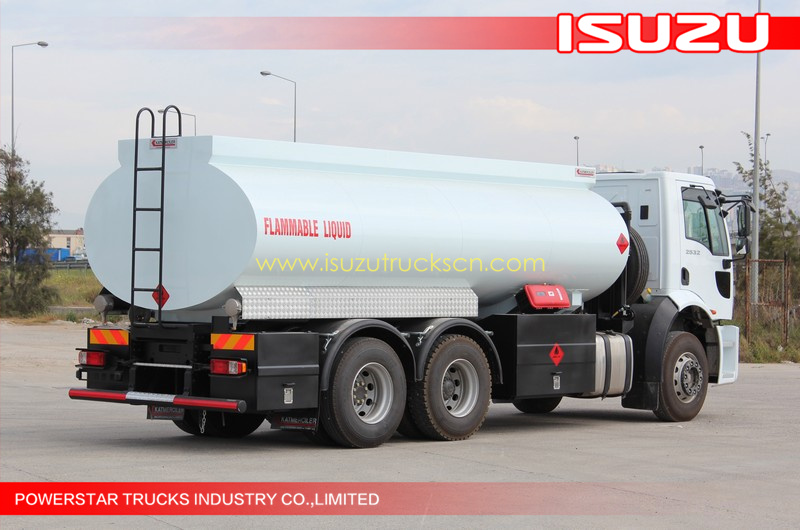

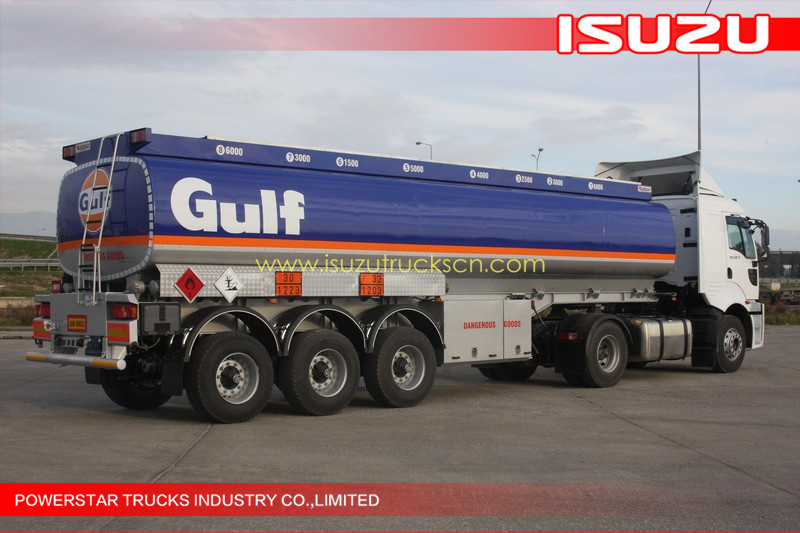

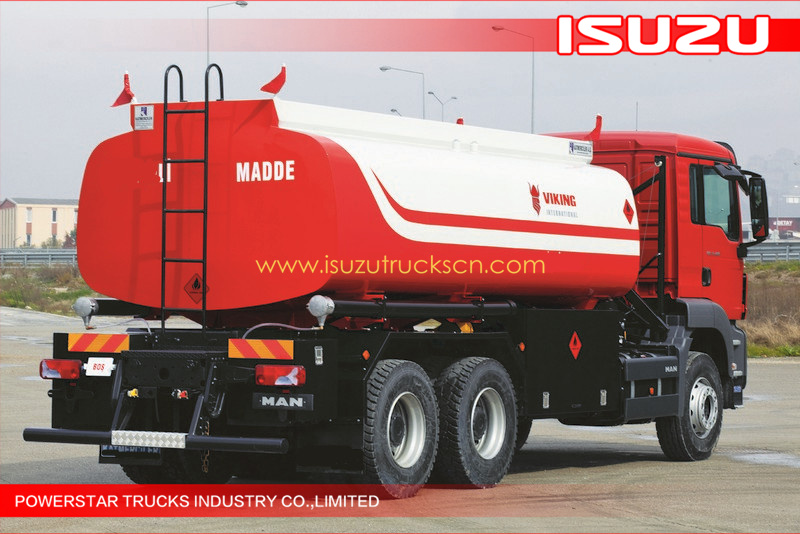

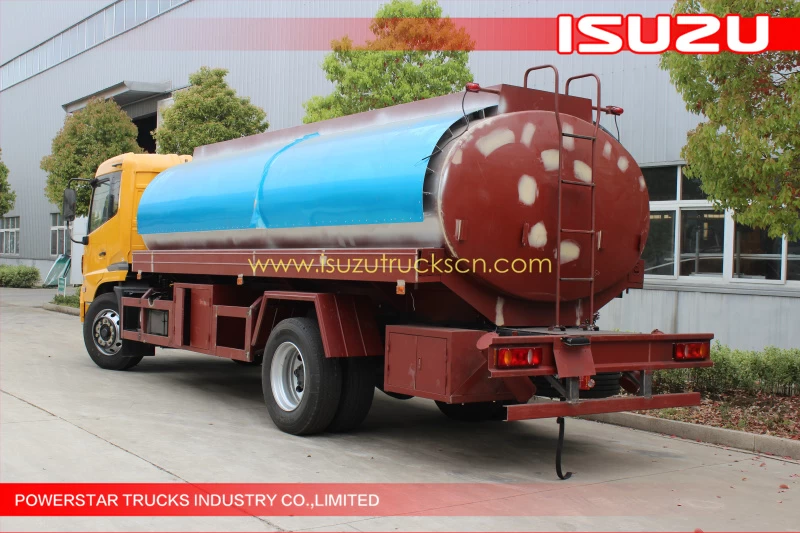

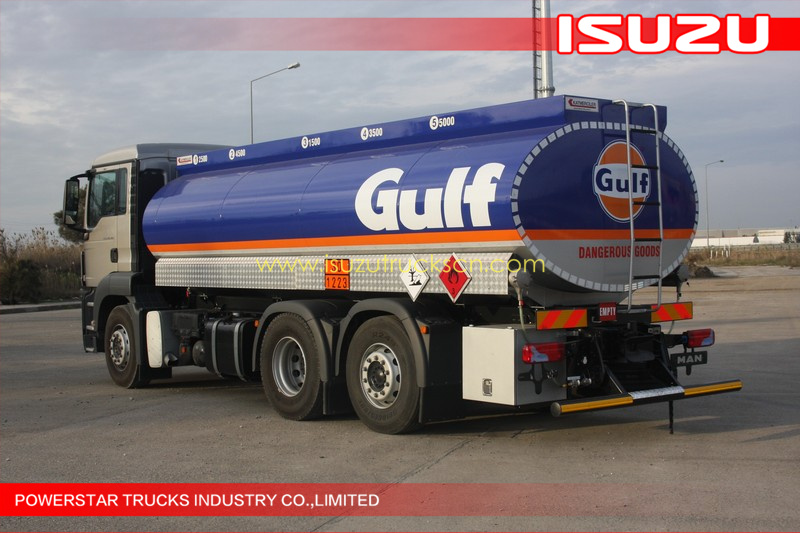

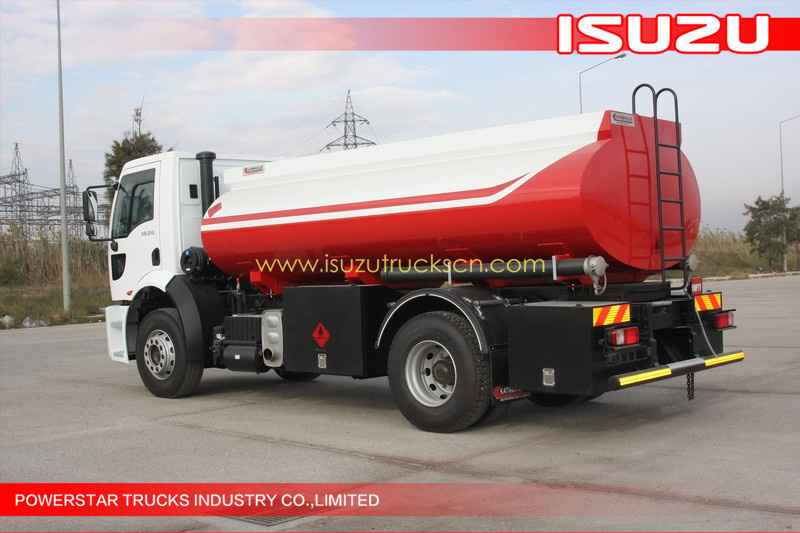

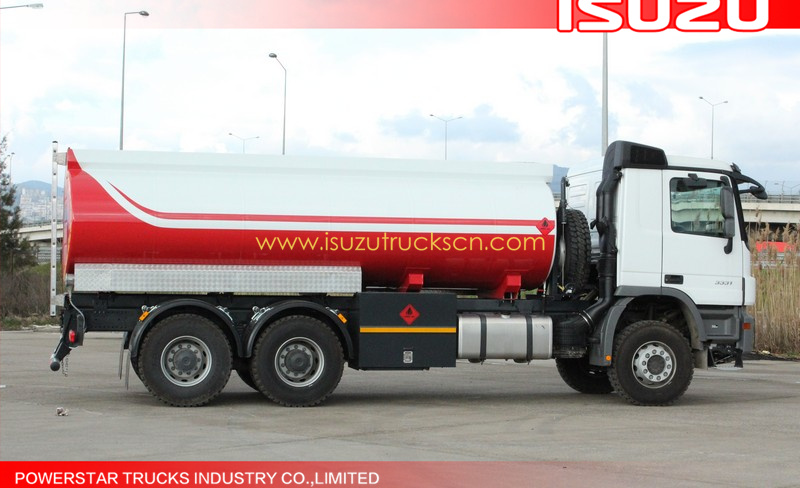

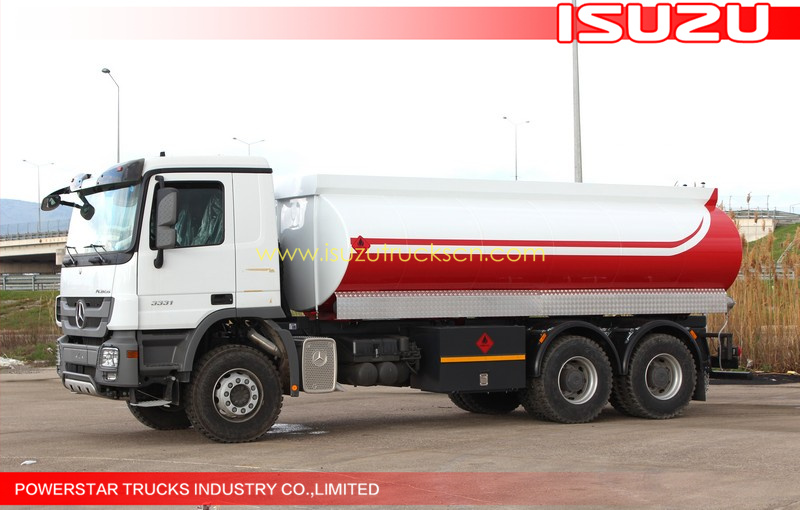

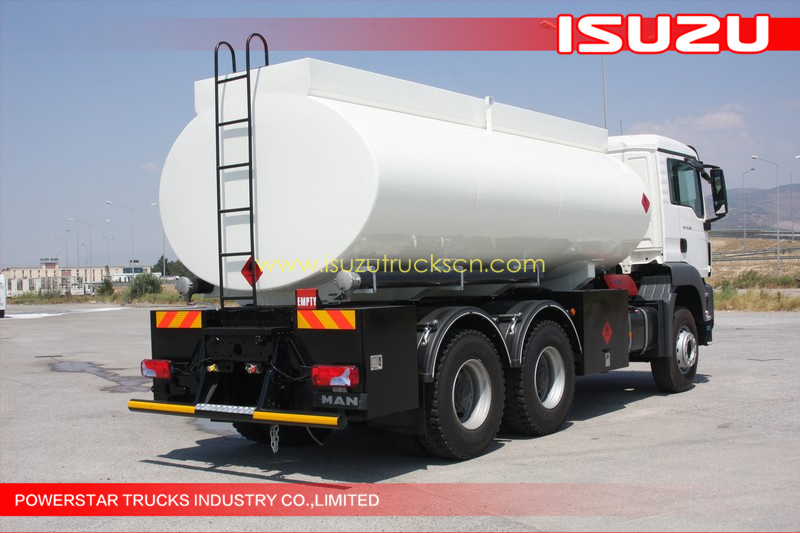

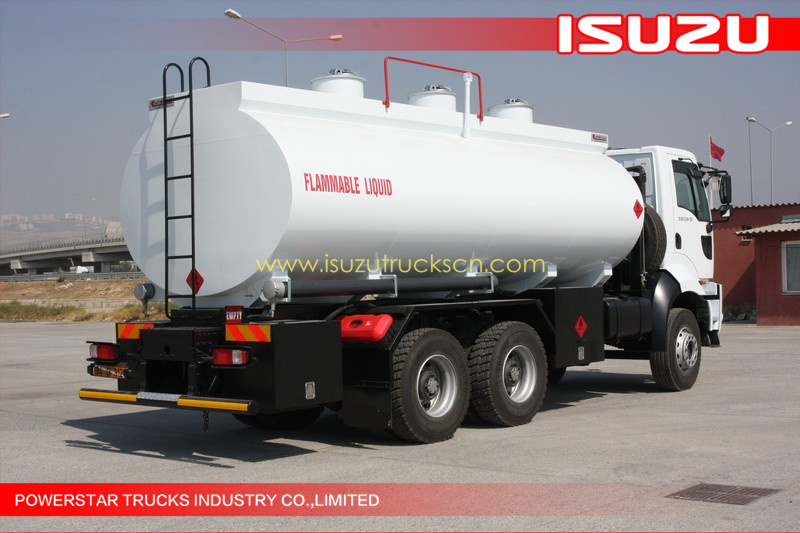

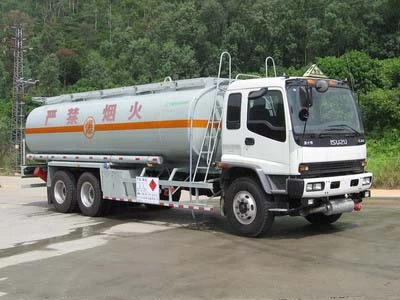

Customer build example of Isuzu Fuel Tanker Truck
