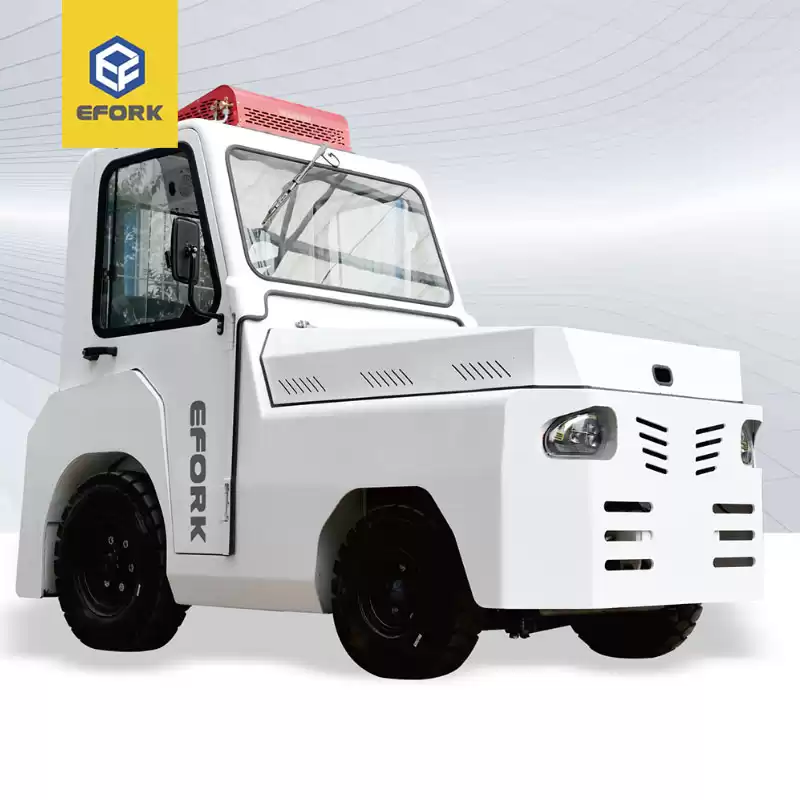

Product Name: 25 Ton Electric Luggage Tractor
EPQ250 electric luggage tractor is widely used in cargo transportation and traction.
Product Advantage :
●Equipped with a full AC drive system, it has the characteristics of strong climbing ability, maintenance-free, regenerative braking, good working stability and high efficiency. It eliminates the trouble of replacing the carbon brushes of the DC motor and does not require more maintenance and maintenance.
●Curtis electronic control, with multiple automatic protection systems, provides a higher level of functional safety.
●Suspension torsion beam structure is adopted for the front and rear axles, and damping leaf spring buffer dampers are installed to reduce the shaking of the vehicle and maintain the stability of the vehicle.
●The main structure of the whole vehicle is composed of square tube welding, streamlined shape, beautiful and generous appearance, which is suitable for traction and pushing operation.
●The vacuum assisted braking system is adopted for braking, which increases the pressure of the hydraulic system, makes the braking light and enhances the braking performance. Combined with the design of front disc and rear drum, the braking effect is improved, the ventilation and heat dissipation are good, the braking is linear, the control is good, and the driving safety and comfort are improved.
●The unique arched design cab is strong. It adopts a two-door design with a double-row seat layout, and can be equipped with fans, parking air conditioners, etc.
Parameters
|
Product model
|
EPQ250
|
|
Operation type
|
Seated Type
|
|
Power type
|
Lithium battery
|
|
Characteristic
|
Maximum hook traction
|
KN
|
22.5
|
|
Rated hook traction
|
12
|
|
Maximum traction weight
|
trailer
|
Kg
|
25000
|
|
Maximum travel speed
|
Forward (no load)
|
Km/h
|
22
|
|
Backward
|
10
|
|
Minimum turning radius
|
mm
|
2800
|
|
Maximum climbing capacity(no load)
|
%
|
30
|
|
Maximum braking distance
|
No towing
|
m
|
5.7
|
|
Rated towing weight
|
4.7
|
|
dimension
|
Total length (including traction bolt)
|
mm
|
3085
|
|
Total width
|
1403
|
|
Total height (with cab and warning lights)
|
2270
|
|
Front wheel track
|
1220
|
|
Rear wheel track
|
1190
|
|
Wheelbase
|
1600
|
|
Towing hitch towing height up / down
|
310/400
|
|
Minimum ground clearance
|
165
|
|
Wheel
|
Tyre specification
|
Front wheel
|
6.50-10PR
|
|
Rear wheel
|
7.00-15PR
|
|
Weight
|
Vehicle weight (with cab)
|
Kg
|
5310
|
|
No-load axle load (with cab)
|
Front axle
|
1820
|
|
Rear axle
|
3490
|
|
Drive
|
Rated rotating speed
|
rpm
|
2065
|
|
Rated power
|
kW
|
23
|
|
Rated torque
|
N·m
|
106.5
|
|
Rated power
|
kW
|
2.5
|
|
transmission gear ratio
|
23.5
|
|
Battery
|
Voltage / capacity
|
V/Ah
|
80V /600Ah
|
|
battery charger
|
Voltage / current
|
V/A
|
80V/80A
|
|
steering
|
Hydraulic Power Steering
|
