High temperature deep groove ball bearings
High temperature bearings can be divided into ordinary high-temperature bearings and special high-temperature bearings in terms of structural technology.
The high temperature bearing produced by our company is the crystallization of high technology and new materials. Through redesigning and optimizing the internal parameters and modifying the material, it can maintain a good working condition in high temperature environments.
All bearings have temperature limits. Usually the material weakens above a certain temperature and the bearing can no longer handle any meaningful load or speed. Provided a suitable lubricant is used, alloy steel bearings can handle temperatures up to 350°C, full ceramic bearings can be used at temperatures of up to 1200°C.
Feature for high temperature deep groove ball bearings ：
- higher using temperature
- bigger clearance
- harsh conditon of oil
Application :
- automatic wafer baking ovens in the food and beverage industry
- industrial furnaces
- chains
- ceramics industry
- glass plants
- conveyors
- dryers
- kilns and kiln cars
- stokers
- soot blowers
- oil guns
- gypsum board
- veneer dryers

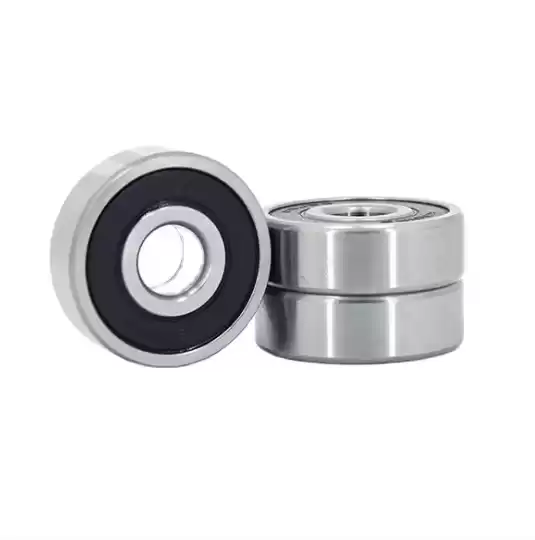

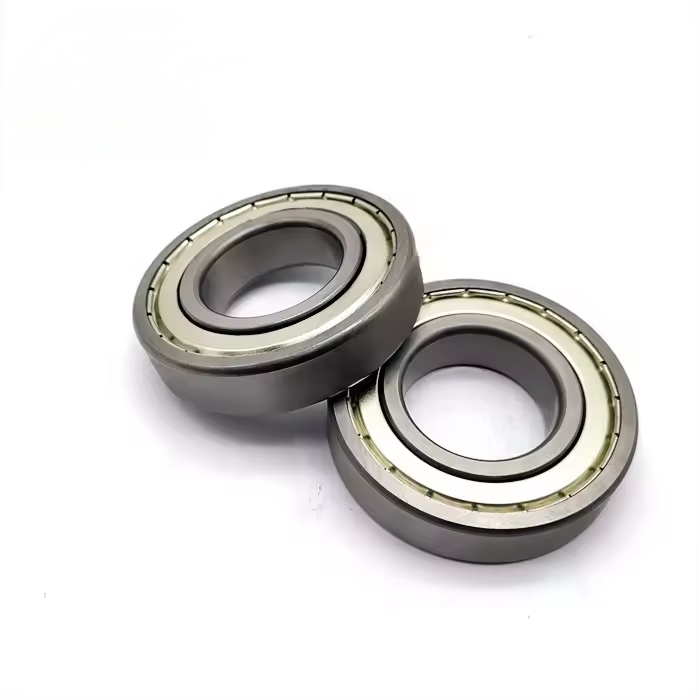

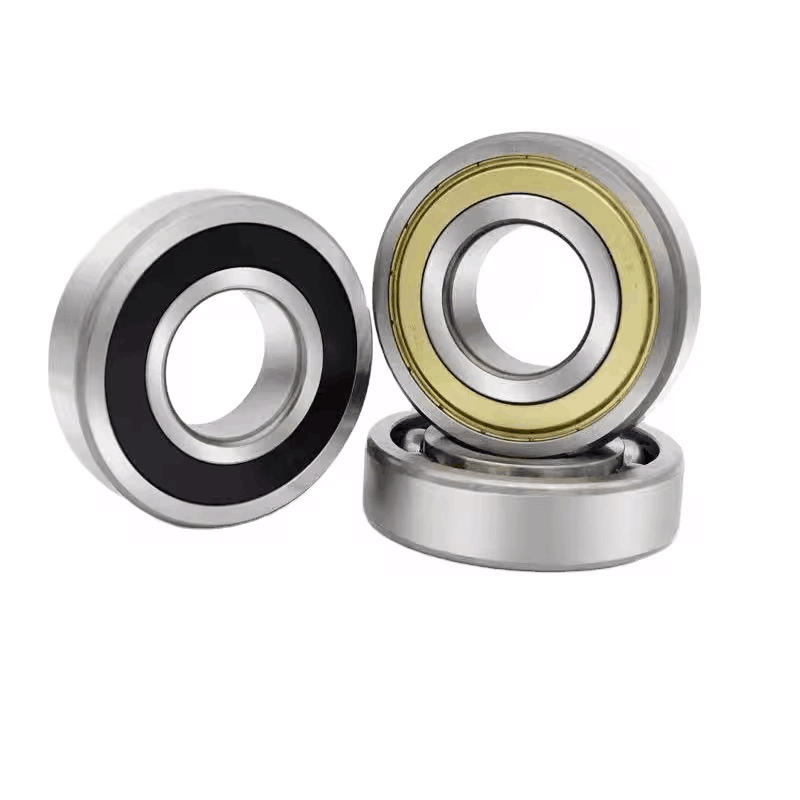

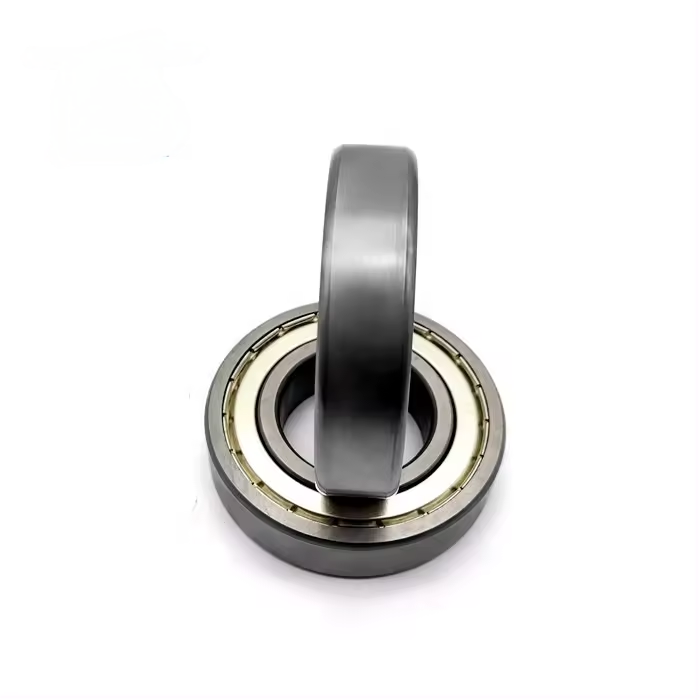

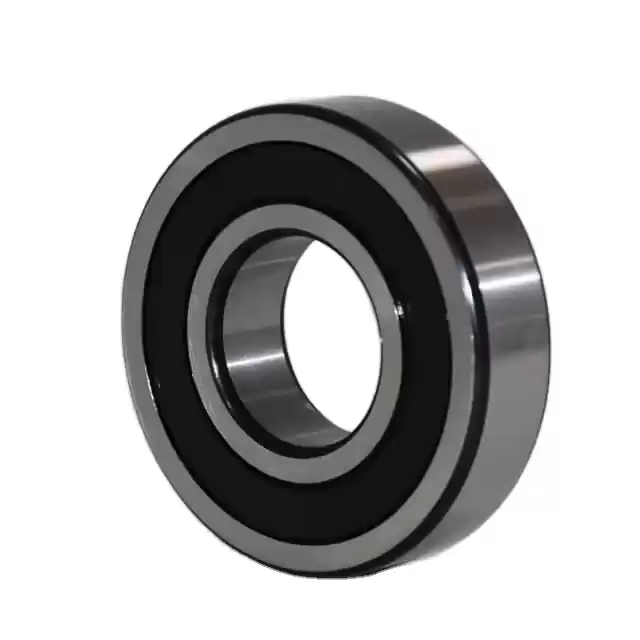

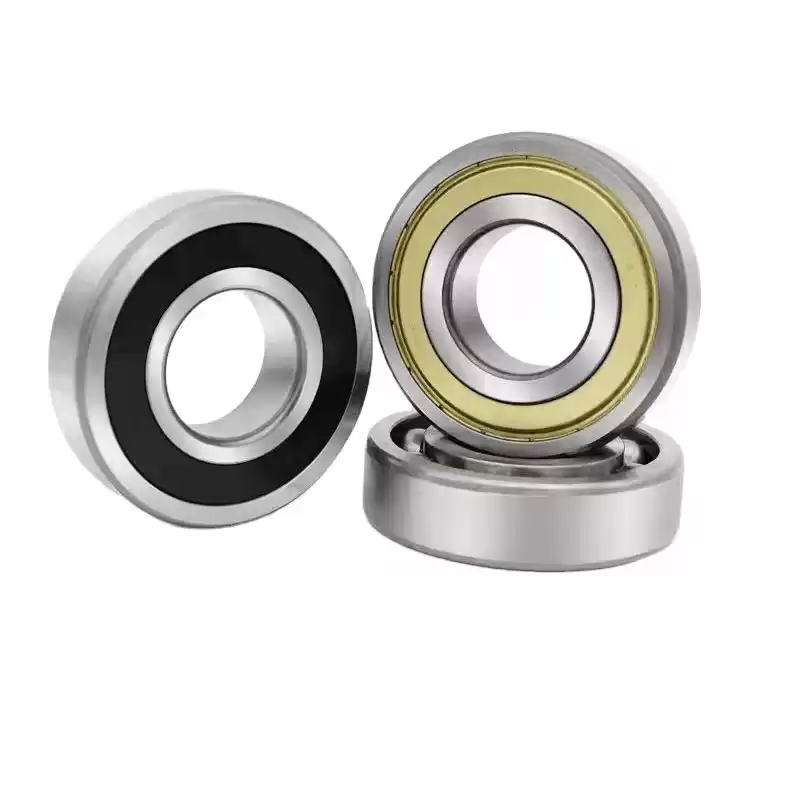

Photo:
High temperature deep groove ball bearings catalogue:
|
Bearings Models
|
Bearing Size (mm)
|
|
OPEN
|
Z
|
ZZ
|
RZ
|
2RZ
|
RS
|
2RS
|
d
|
D
|
B
|
|
6300
|
6300-Z
|
6300-ZZ
|
6300-RZ
|
6300-2RZ
|
6300-RS
|
6300-2RS
|
10
|
35
|
11
|
|
6301
|
6301-Z
|
6301-ZZ
|
6301-RZ
|
6301-2RZ
|
6301-RS
|
6301-2RS
|
12
|
37
|
12
|
|
6302
|
6302-Z
|
6302-ZZ
|
6302-RZ
|
6302-2RZ
|
6302-RS
|
6302-2RS
|
15
|
42
|
13
|
|
6303
|
6303-Z
|
6303-ZZ
|
6303-RZ
|
6303-2RZ
|
6303-RS
|
6303-2RS
|
17
|
47
|
14
|
|
6304
|
6304-Z
|
6304-ZZ
|
6304-RZ
|
6304-2RZ
|
6304-RS
|
6304-2RS
|
20
|
52
|
15
|
|
6305
|
6305-Z
|
6305-ZZ
|
6305-RZ
|
6305-2RZ
|
6305-RS
|
6305-2RS
|
25
|
62
|
17
|
|
6306
|
6306-Z
|
6306-ZZ
|
6306-RZ
|
6306-2RZ
|
6306-RS
|
6306-2RS
|
30
|
72
|
19
|
|
6307
|
6307-Z
|
6307-ZZ
|
6307-RZ
|
6307-2RZ
|
6307-RS
|
6307-2RS
|
35
|
80
|
21
|
|
6308
|
6308-Z
|
6308-ZZ
|
6308-RZ
|
6308-2RZ
|
6308-RS
|
6308-2RS
|
40
|
90
|
23
|
|
6309
|
6309-Z
|
6309-ZZ
|
6309-RZ
|
6309-2RZ
|
6309-RS
|
6309-2RS
|
45
|
100
|
25
|
|
6310
|
6310-Z
|
6310-ZZ
|
6310-RZ
|
6310-2RZ
|
6310-RS
|
6310-2RS
|
50
|
110
|
27
|
|
6311
|
6311-Z
|
6311-ZZ
|
6311-RZ
|
6311-2RZ
|
6311-RS
|
6311-2RS
|
55
|
120
|
29
|
|
6312
|
6312-Z
|
6312-ZZ
|
6312-RZ
|
6312-2RZ
|
6312-RS
|
6312-2RS
|
60
|
130
|
31
|
|
6313
|
6313-Z
|
6313-ZZ
|
6313-RZ
|
6313-2RZ
|
6313-RS
|
6313-2RS
|
65
|
140
|
33
|
|
6314
|
6314-Z
|
6314-ZZ
|
6314-RZ
|
6314-2RZ
|
6314-RS
|
6314-2RS
|
70
|
150
|
35
|
|
6315
|
6315-Z
|
6315-ZZ
|
6315-RZ
|
6315- 2RZ
|
6315-RS
|
6315-2RS
|
75
|
160
|
37
|
|
6316
|
6316-Z
|
6316-ZZ
|
6316-RZ
|
6316-2RZ
|
6316-RS
|
6316-2RS
|
80
|
170
|
39
|
|
6317
|
6317-Z
|
6317-ZZ
|
6317-RZ
|
6317-2RZ
|
6317-RS
|
6317-2RS
|
85
|
180
|
41
|
|
6318
|
6318-Z
|
6318-ZZ
|
6318-RZ
|
6318-2RZ
|
6318-RS
|
6318-2RS
|
90
|
190
|
43
|
|
6319
|
6319-Z
|
6319-ZZ
|
6319-RZ
|
6319-2RZ
|
6319-RS
|
6319-2RS
|
95
|
200
|
45
|
|
6320
|
6320-Z
|
6320-ZZ
|
6320-RZ
|
6320-2RZ
|
6320-RS
|
6320-2RS
|
100
|
215
|
47
|
Advantage of WISON Bearing:
With over 15 years bearing industry experience ,we have perfect group pf technical engineers give you best support
- Competitive price and small MOQ
Direct manufacturer of bearings can offer you lowest price with small MOQ
WISON bearings can provide OEM and ODM service as to your sample or drawings.
We focus on quality during production and guarantee 100% quality inspection before delivery
WISON bearings give you on time delivery
