Product Model：700C Clincher bike rims 58mm Deep carbon clincher rim
58mm Deep clincher rim,newest style U shape 27mm wide carbon rims, profile makes this clincher rims pretty stiff.better aerodynamic performance,durable and strength.
27mm wide tubeless rims made of Full carbon Toray T700, 250°C high TG resin stystem,high TG brake surface.
UD appearance to be more resistant to high temperature.Tubeless ready design,easy for tire mount.
This 58mm Deep carbon wheels have classical clincher and tubeless styles.
Our Factory offer high quality carbon clincher rims with competitive price,fast delivery.
Features:
1.Newest model for 58mm Deep 27mm wide clincher carbon rims.
2.250°C High TG resin temperature with 250°C brake track from braking in road bicycle clincher wheels.
2.Full Toray T700 & T800 carbon fiber, Super lightweight rims,best strength to weight ratio with no expense spared.
3.This 58mm Deep clincher tubeless rims have faster braking heat elimination.
4.27mm wide U sahpe design,for better aerodynamics and stiffness.new bead lock system,better tire holding,prevent air leaking.
5.We offer decal and painting service for OEM your brands.
6.We can customized Different patterns of brake surface .
7.Strong technical force and fast delivery.
7. 5 years warranty
Specification:
|
Model
|
TR58C-27
|
R58C-27
|
|
Size
|
700C
|
700C
|
|

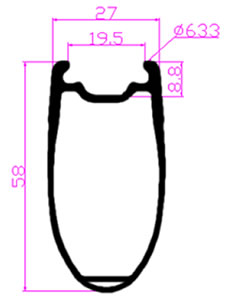

Sectional Drawing
|
|
|
|
Material
|
Toray T700 & T800
|
Toray T700 & T800
|
|
Depth
|
58mm
|
58mm
|
|
Wide
|
27mm
|
27mm
|
|
Weight
|
545+/-15g
|
555+/-15g
|
|
Appearance
|
3K/UD OrCustomized
|
3K/UD OrCustomized
|
|
Spokes holes
|
18-36#Customized
|
18-36#Customized
|
|
ERD
|
524mm
|
524mm
|
|
Assembly Hole Dia.
|
7.6mm
|
7.6mm
|
|
Spokes hole Dia
|
4.2mm
|
4.2mm
|
|
Valve hole Dia.
|
6.6mm
|
6.6mm
|
|
Flatness
|
<0.25mm
|
<0.25mm
|
|
Roundness
|
<0.5mm
|
<0.5mm
|
|
Max Spoke Tension
|
>300kg
|
>300kg
|
|
Ultimate Strength
|
>300kg
|
>300kg
|
|
Torsion Strength
|
>50kg
|
>50kg
|
|
Tire Size Recommended
|
700*25-28c
|
700*25-28c
|
|
Max Tire Pressure
|
125psi/8.6bar
|
125psi/8.6bar
|
Factory production manufacture
100% Quality Inspection:
Our rims are made of 100% Full carbon fiber material to ensure the high quality of the goods. Each carbon rim by us has its unique serial ID number, which follow every step of the product. And confirm every rim to ensure the best after-sale service.
5 years warranty:
The warranty covers five years form the initial pruchase of the product.
The warranty applies to the original purchaser and the assignmnet is invalid.
The warranty requires proof of pruchase,product serial number and defect picture.
Please keep your proof of purchase for any future warranty problems.
This warranty does not cover:
1. Normal wear and tear and depreciation.
2. Any man-made damage caused by accident,misuse,etc.
3. Improper installation,maintenance or other conduct by an unauthorized technician.
