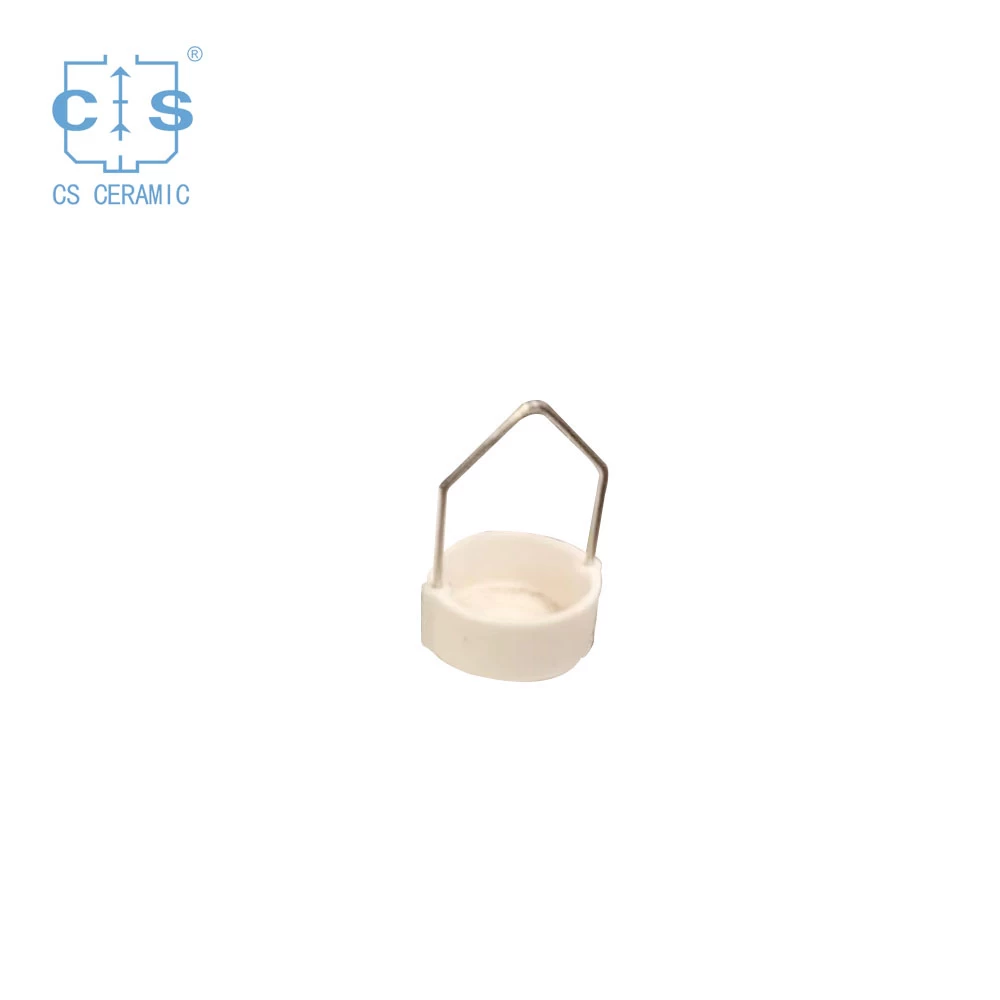

Product Item: 250μl Ceramic Sample Pans for TA SDT Q600 PN. 952018.909
Item info :
|
Type
|
Sample pan /crucible
|
|
Suitable for
|
TA SDT Q600
|
|
Part NO
|
TA 952018.909
|
|
Volume μL
|
250 μL
|
|
Handle
|
With
|
|
Material
|
Alumina Ceramic and platinum
|
|
Cover
|
Without
|
|
Temperature range
|
Room temperature to 1600℃
|
|
QTY/PKG
|
3PCS/BOX
|
|
Brand
|
CS CERAMIC
|
|
Original
|
MADE IN CHINA
|
Usage:
TA alumina crucible(sample pans) is made of high-purity aluminum powder, with application of advanced sintering process, to produce small sized crucible that specified for thermal analysis, with four features below to fulfill various kinds of thermal analysis test.
Feature
1.High thermal conductivity: heat transfer between sample and crucible is very fast, so temperature difference between them is very small and temperature distribution is homogeneous.
2.Stable structure: high-purity powder and precise controlled sintering process, to make dense and homogeneous micro crystal phase, so to ensure stable structure and no physical or chemical reaction during the process of usage.
3.High temperature stability: with wide working temperature range, available up to 1600- 1800℃
4.High repeated utilization ratio: wash by water or 10% hydrochloric acid and dry the crucible after using, it can be used again and without disturbance to analysis test.
Shipping: We do international shipping for clients.
Special offer: Most of our crucibles are produced to OEM order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
