250A Separable Cable Connector European Type Cable Accessories

The IEC 250A Separable Cable Connector with Interface A is a fully insulated, touch-safe solution ideal for secure power distribution. Made from durable EPDM, it’s waterproof, moisture-proof, and compliant with EN50180/50181 standards. These connectors support 8.7/15/17.5 kV XLPE cables (25-120 mm²) and are suitable for ring main units (RMUs), transformers, and medium-voltage applications, providing reliable insulation and enhanced safety.

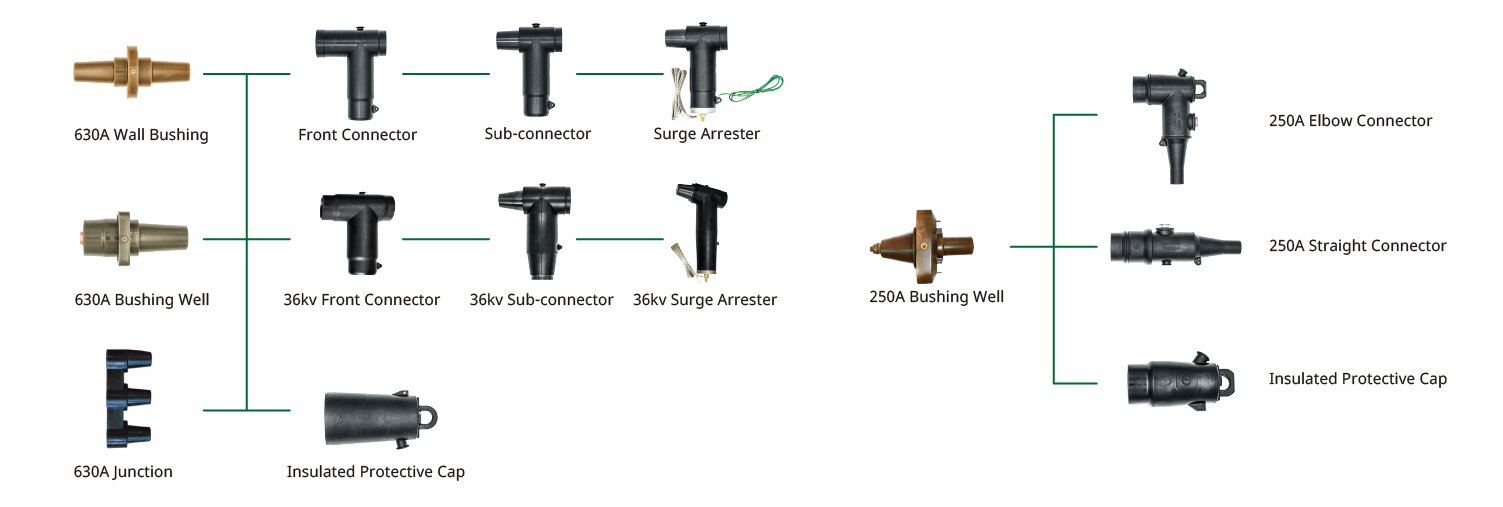

  • IEC Standard European Type Cable Accessories Overview

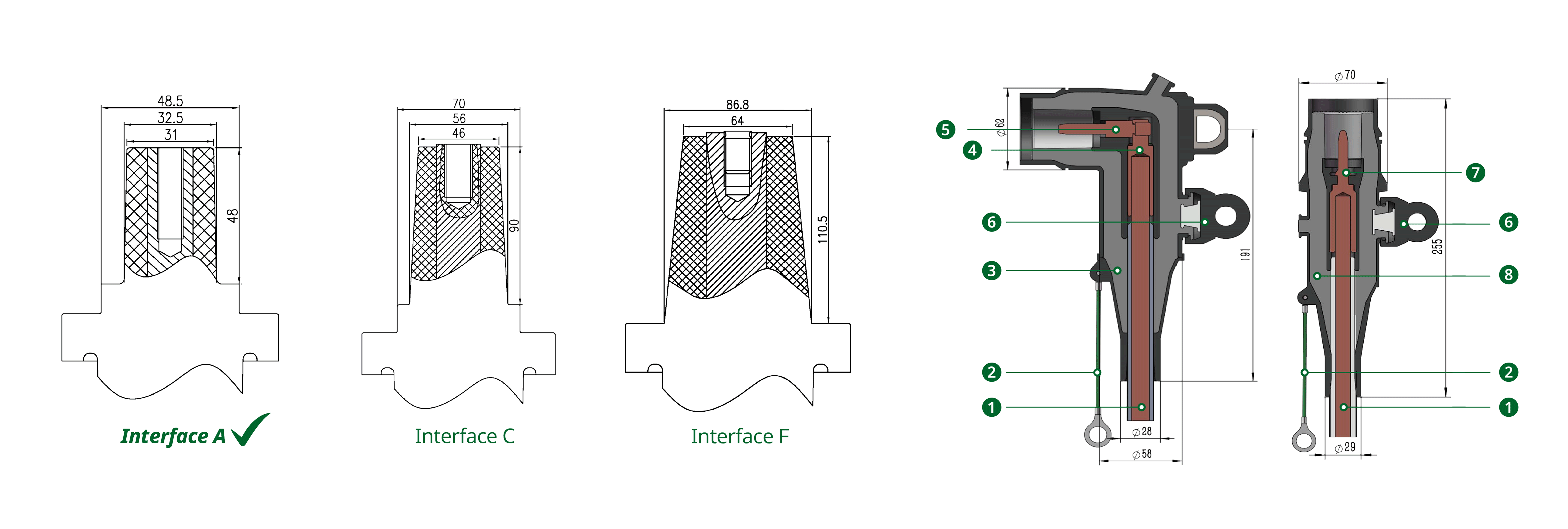

  • 15kV 250A IEC Separable Cable Connector Diagram

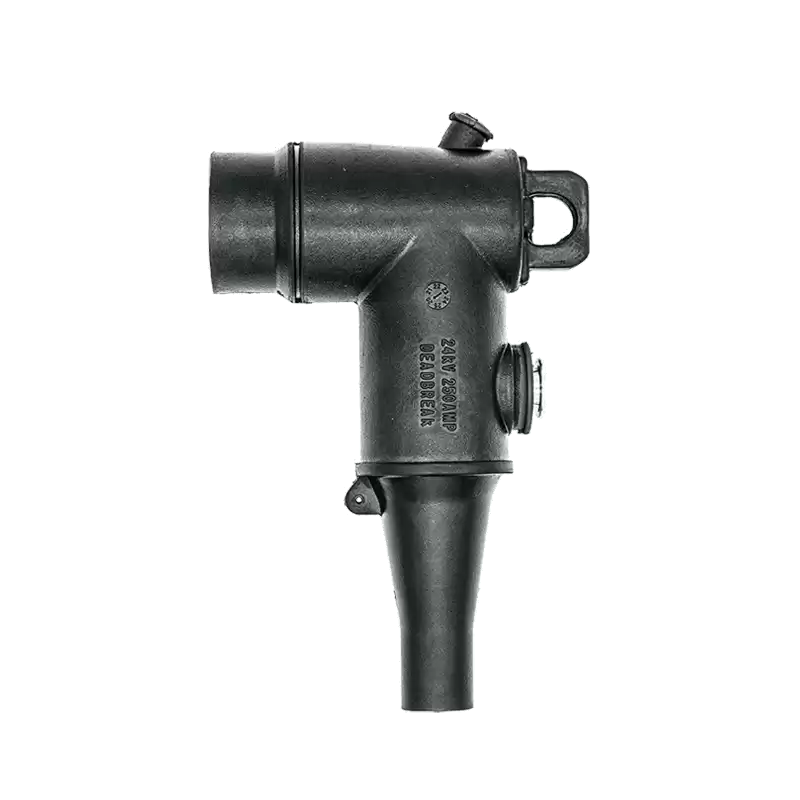

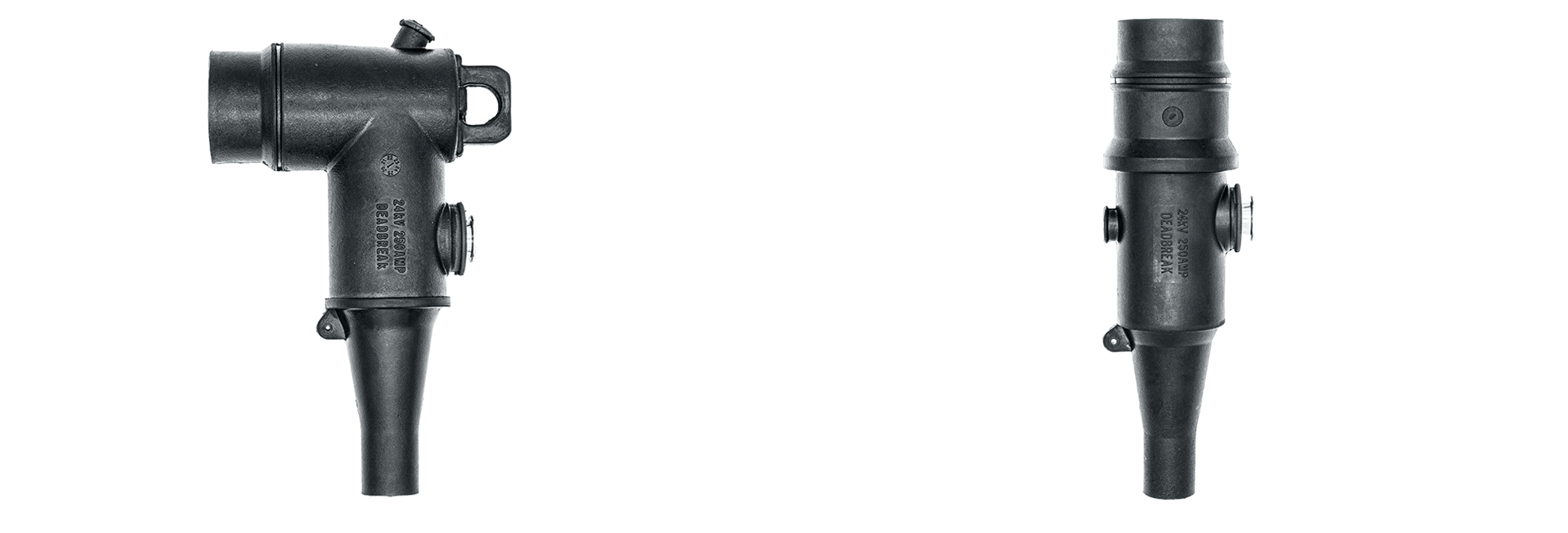

15KV 250A Screen Elbow Connector





1. Cable

2. Ground Wire

3. Elbow Connector Body

4. Compression Lug





5. Linking Rod

6. Test Cap

7. Linking Rod

8. Straight Connector Body













  • Features



Safety & Protection

Standards & Compatibility

Applications

Compact, Insulated, and Fully Shielded Connector

High-Quality EPDM Housing, Waterproof, Moisture-Proof

Interface A, EN50180/50181 Compliant

Compatible with 8.7/15/17.5 kV XLPE Cables (25-120 mm²)

Ideal for Ring Main Units and Transformers













  • Specifications



Rated Voltage 8.7/15(17.5)kV 12/20(24)kV
Rated Current 250A 250A
Withstand Voltage 39kV/5MIN 54kV/5MIN
Partial Discharge ≤10pC(15kV) ≤10pC(20kV)
Lighting Impulse Withstand Voltage 95kV 125kV
Thermal Short-Circuit Current 3.5kA/3S 3.5kA/3S
Dynamic Short-Circuit Current 10kA 10kA
Conductor Cross Section 25-120mm² 25-120mm²
