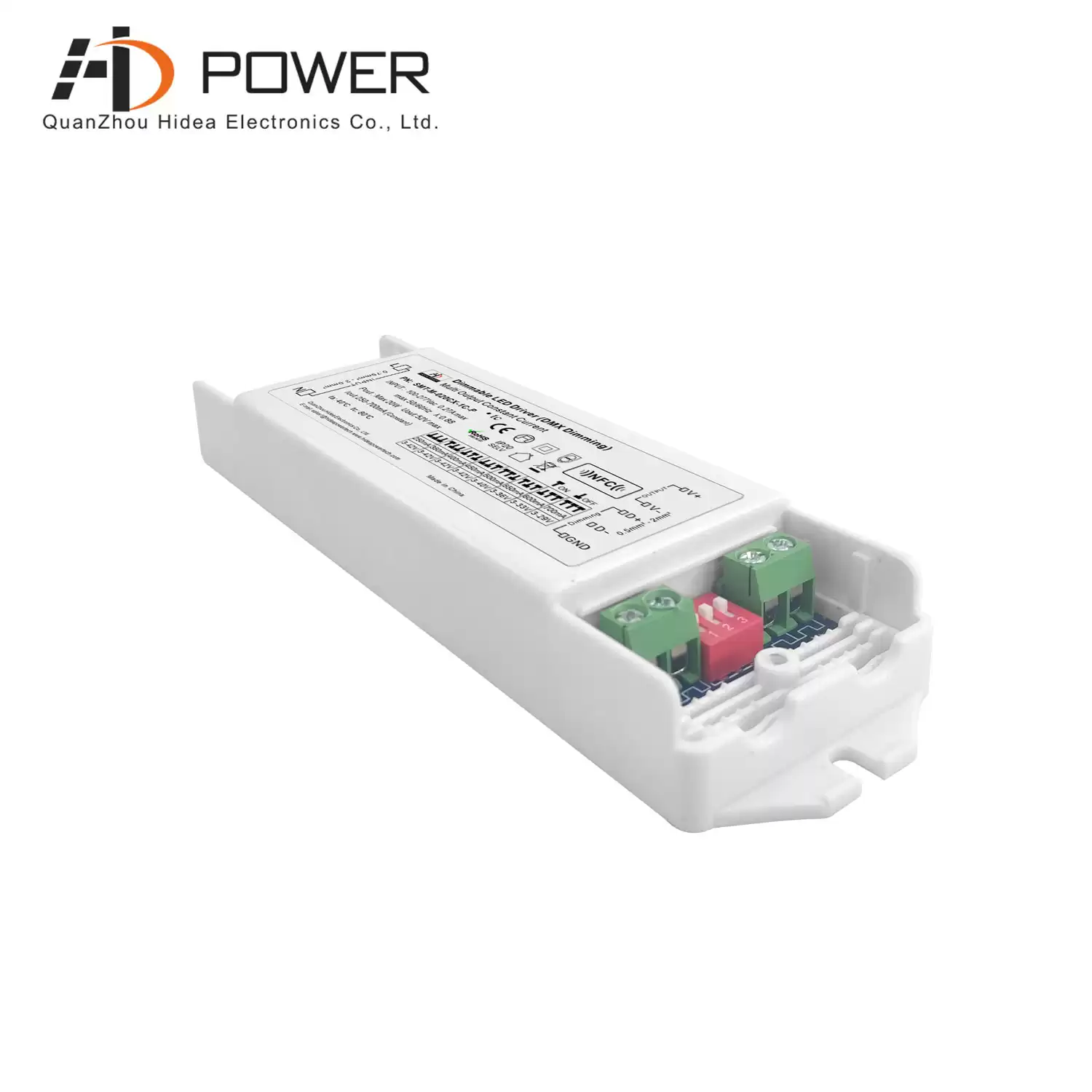

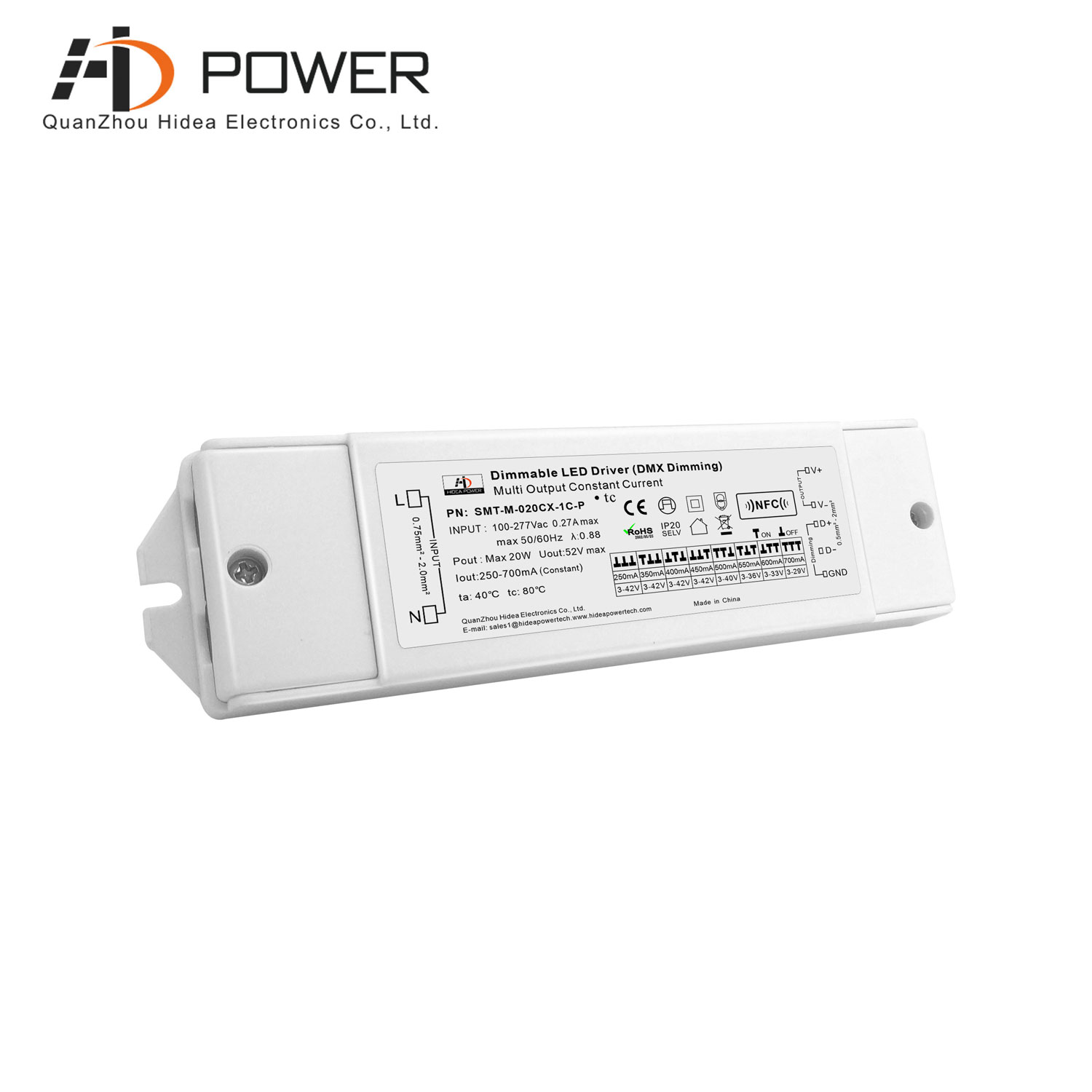

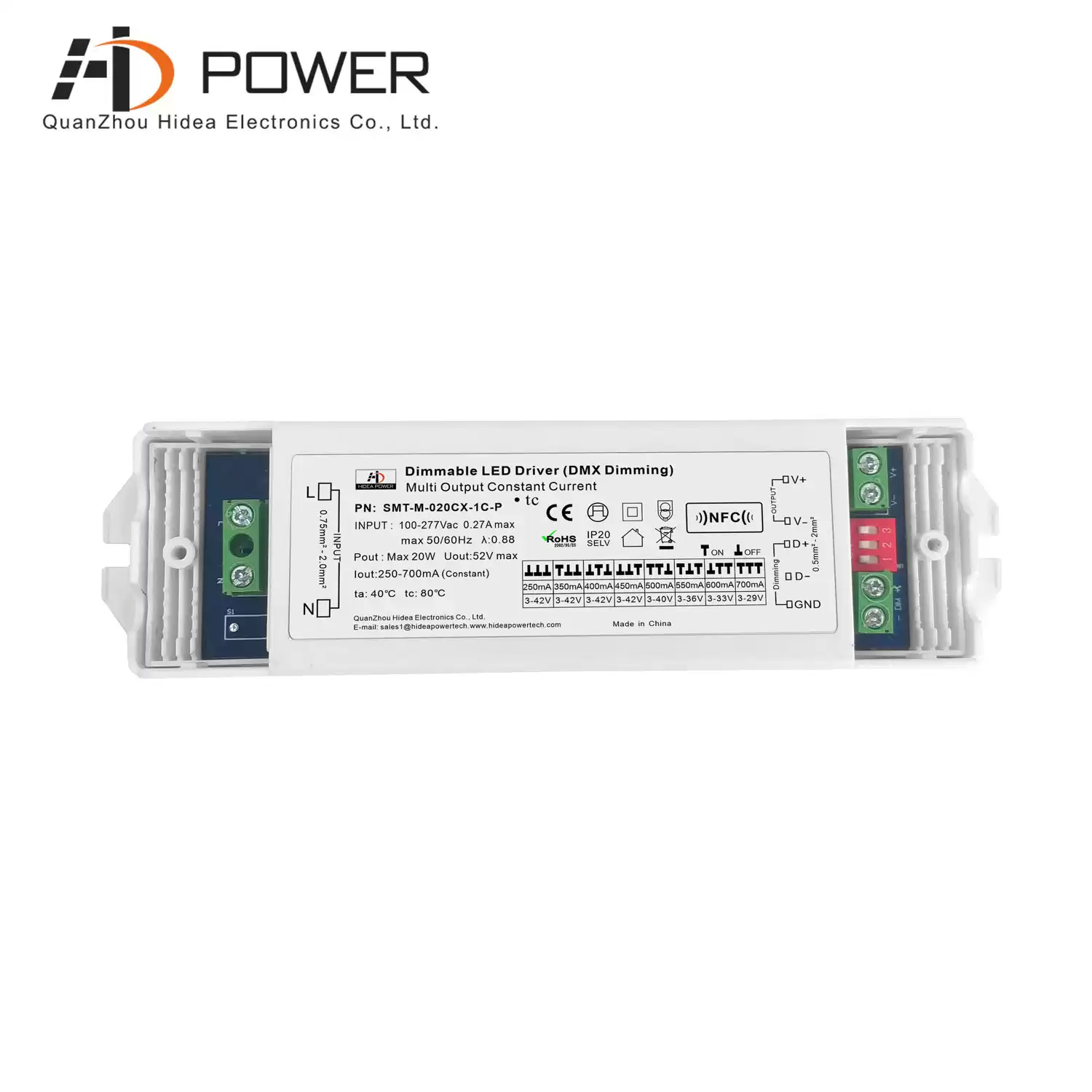

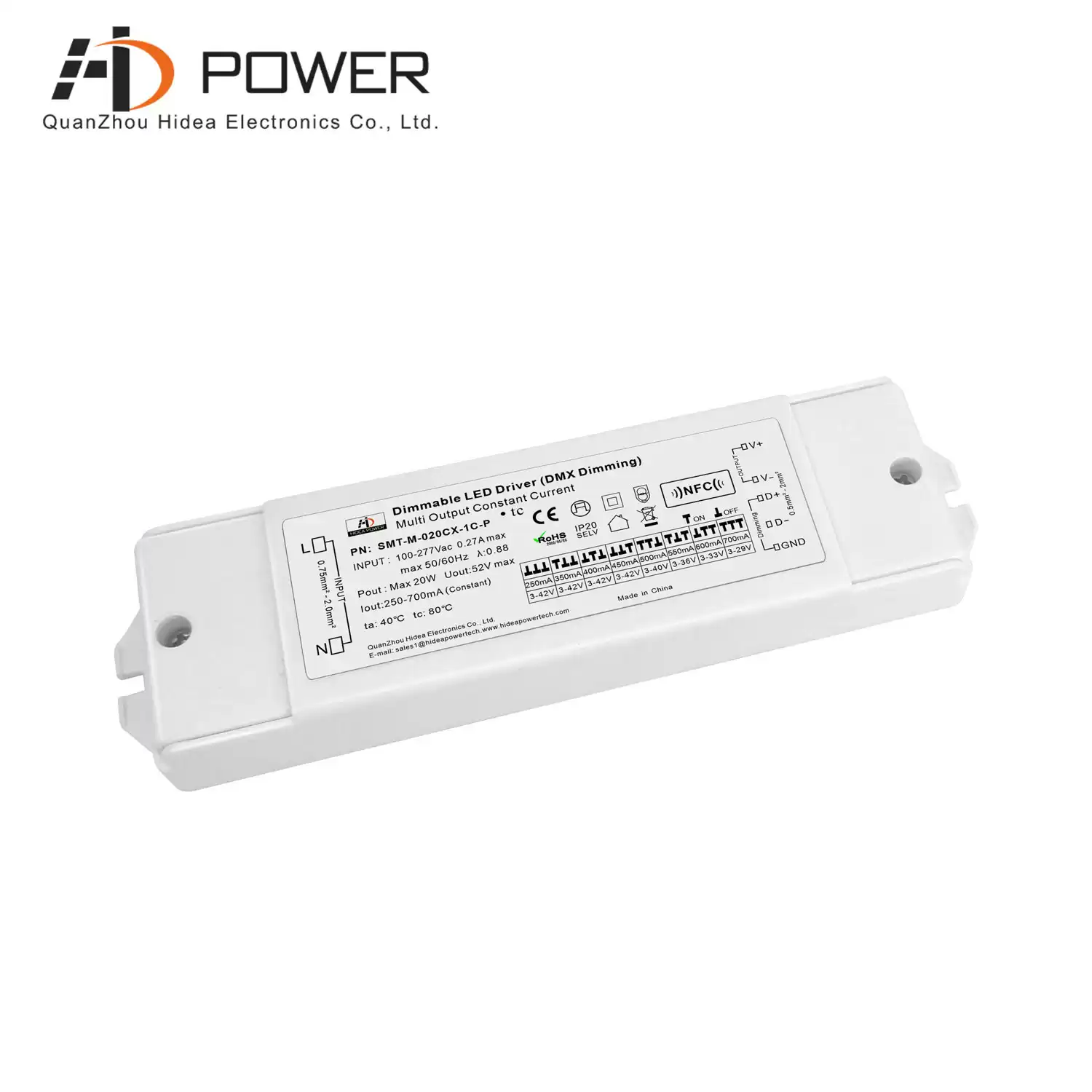

250MA-700MA DMX512 dimmable led constant current driver light power supply 20W

277vac input range Multi-current dip 20W led driver constant current operating mode, efficiency up to 83%, plastic housing design ip20 waterproof rating, suitable for indoor lighting project installation

Weight0.15KG
Size159.5*43*20mm
Output Current250mA-700mA
Shape & SizeMini Size
Input Voltage100-277Vac
Output Power(Watt)20W
CertificationUL/cUL
Working ModeMulti-Output Current Driver
Dimming ModeDMX Dimming
Warranty7 years warranty

Facebook Twitter Pinterest LinkedIn 分享

Description

250MA-700MA DMX512 dimmable led constant current driver light power supply 20W

20w multi-current dip led driver input activity range of 100-277vac work efficiency of up to 83%, with short circuit, overload, overtemperature protection design, can be compatible with RAB Lighting 20W LED floodlight

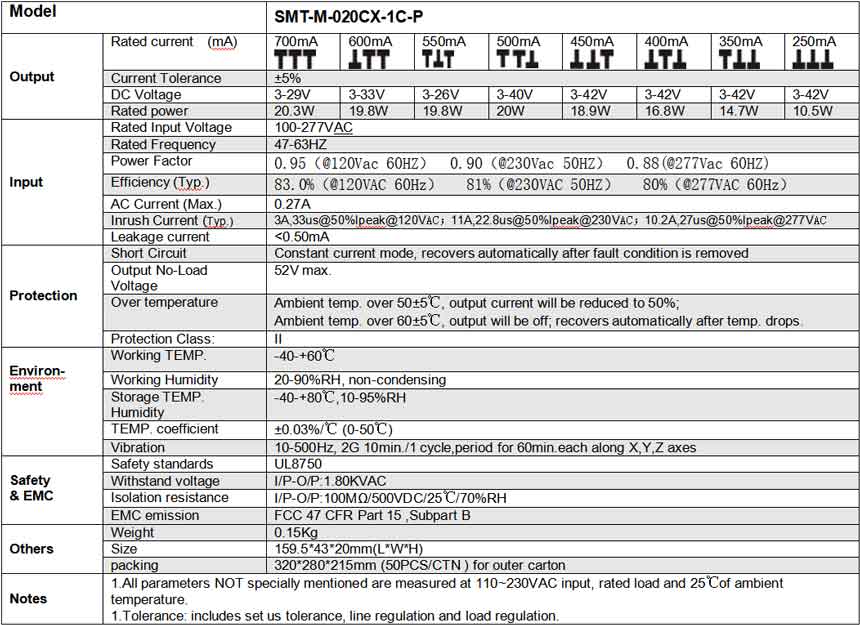

Specification

Related Products

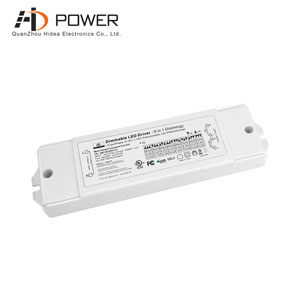

Plastic case ip20 5 in 1 dimmable 20W led driver, output current 250ma-700ma, small size, easy to install, suitable for indoor narrow space lighting projects

Mode：SMT-M-020CTD

Dimming Mode : triac dimming

Output Power : 20W

input voltage：100-277Vac

Size：159.5*43*20MM （ L*W*H）
