250mm Width Film Applicator With Slurry Guiding Plate

The operator sets the blade clearance by adjusting the micrometers. This is excellent tool to make quality film for material research laboratories to make ceramic tape casting, battery electrodes, and various coating at lower cost. Stainless steel knife blade with precision ground edge.

Facebook Twitter Pinterest LinkedIn 分享
250mm Micrometer Adjustable Film Applicator For Battery Electrode


SPECIFICATIONS


Adjustable Film Applicator - This unique wet film applicator features micrometer heads for knife blade adjustment.

The operator sets the blade clearance by adjusting the micrometers. This is excellent tool to make quality film for material research laboratories to make ceramic tape casting, battery electrodes, and various coating at lower cost. Stainless steel knife blade with precision ground edge.

Features

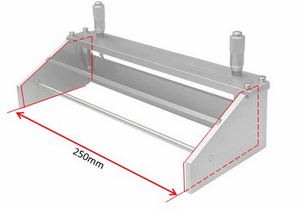

250 mm standard width.

Built in slurry guiding plate to make film coating at easy.

Make wet film thickness between 0 - 5000 microns.

Micrometer head's controllable accuracy is 10 microns.

Slurry Capacity: 100 ml

PRODUCT DISPLAY



  Lab coating Equipments Electrode coating Equipments

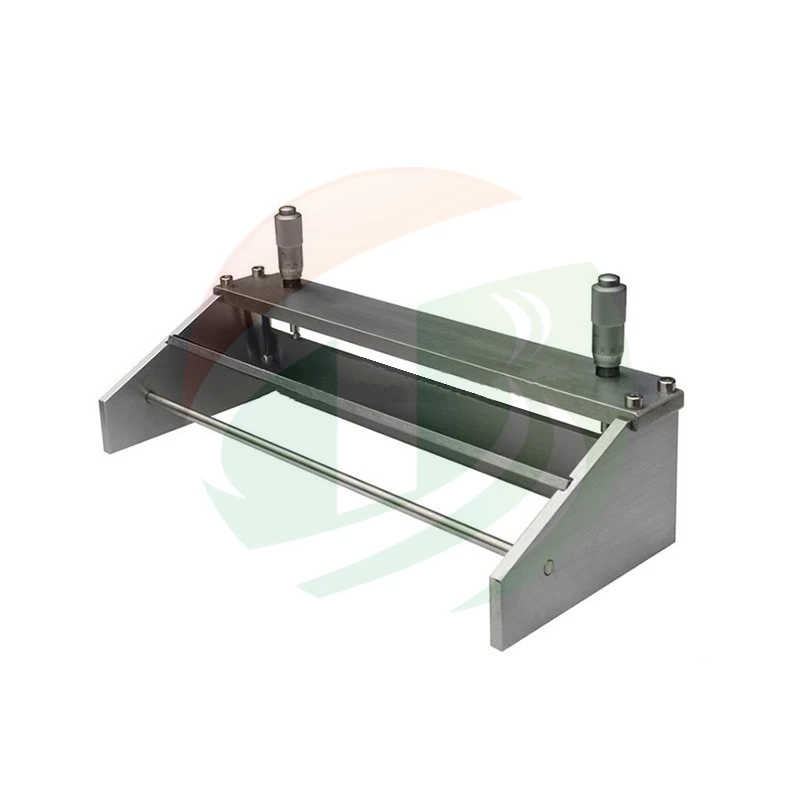

Adjustable Film Applicator
