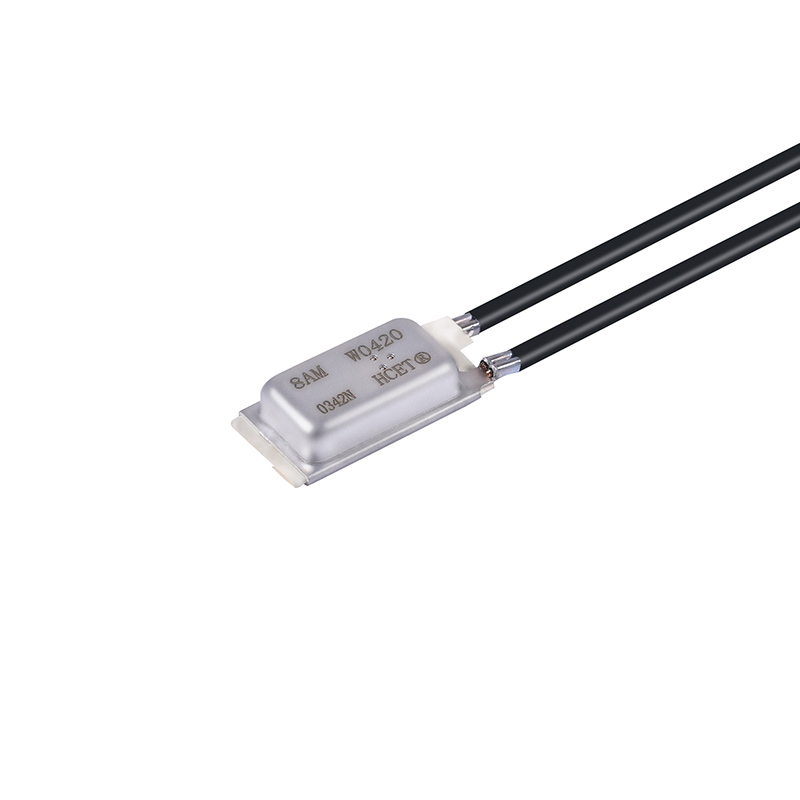

8AM bimetal thermal overload protector for pump motors
Submersible pump motors generally generate heat in two states. One is that the lift is too large, and the pump discharge load is too high; the other is that the lift is too low, the pump cannot discharge water, and the load is too high.Choosing a submersible pump with a thermal protector can not only prolong the service life of the submersible pump, but also improve our safety in the process of using the submersible pump.8AM is a normally closed thermal switch widely used in pumps.
Features

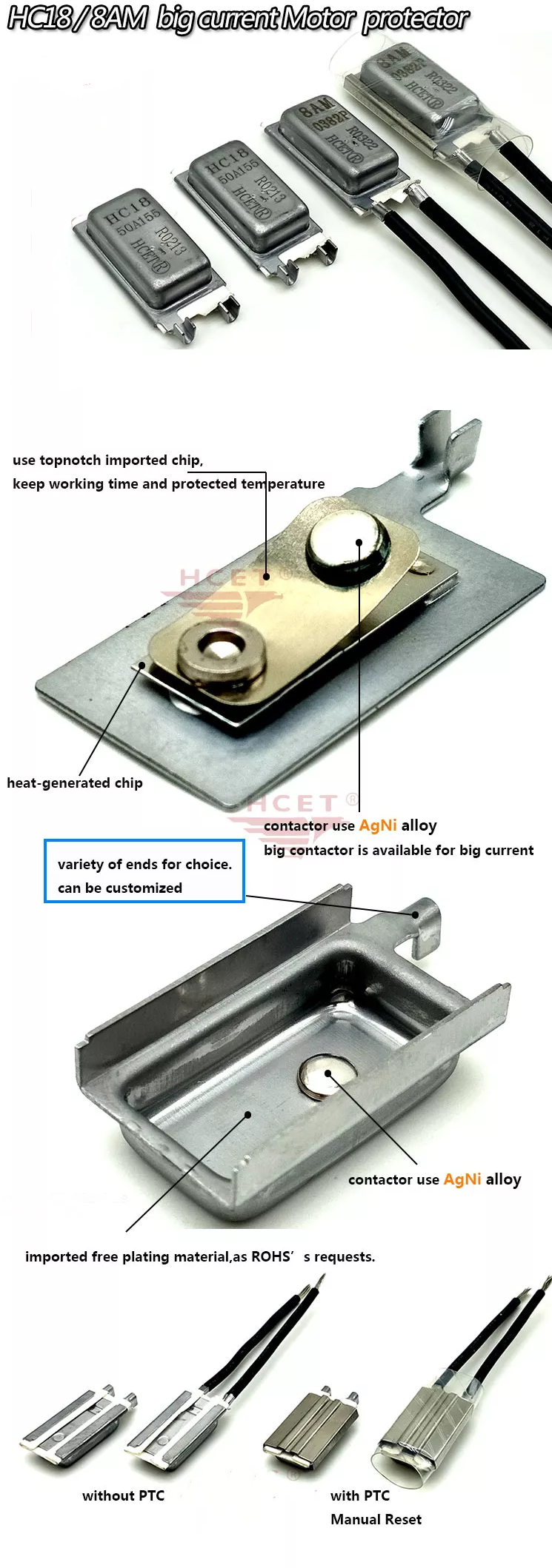

1. High-quality chips imported from the United States
The combination of the auxiliary heating chip and the bimetallic strip can not only accurately control the current, but also precisely control the temperature. When the current is overloaded or the temperature is too high, the thermal protector can cut off the circuit instantly to protect your motor. It can provide you with temperature and current double protection.
2. Big contacts using AgNi alloy
The moving contact and the static contact are made of AgNi alloy, which can ensure a longer life of the thermal protector and a more accurate tripping time. The 8AM thermal switch has unique oversized contacts for large current applications. If you want to use it on a large current motor, 8AM is a good choice.
3. With insulating liners
If a current loop is formed inside the bimetal thermal protector, it will lose its function, so insulating liners are needed to prevent the formation of current loops inside the thermal protector to ensure that it will work properly for your motor.
4. External PTC element optional
You can choose non-PTC or with PTC components. Non-PTC thermal protectors can be reset automatically, thermal protectors with PTC rely on you to manually reset, of course, it ensures a higher level of safety protection.
5. Customizable terminals and wires
Here are a variety of terminals for you to choose from, and you can choose according to your installation needs.The length of the wire can also be customized according to your requirements, the default length is 70 mm.
Specifications
|
Item No.
|
HC18/8AM
|
|
Electrical specifications
|
125VAC/250VAC: 15A-60A
|
|
12VDC/24VDC: 15A-60A
|
|
Operating temperature range
|
80°C~180°C
|
|
Temperature Tolerance
|
±5°C, ±8°C
|
|
Trip off current range
|
15-60A
|
|
Trip time at T-ambient 25°C
|
4-10s
|
|
Shell material
|
Metal
|
|
Shell size(mm)
|
36.5*16.2*10.2
|
|
Wire
|
Optional and customized
|

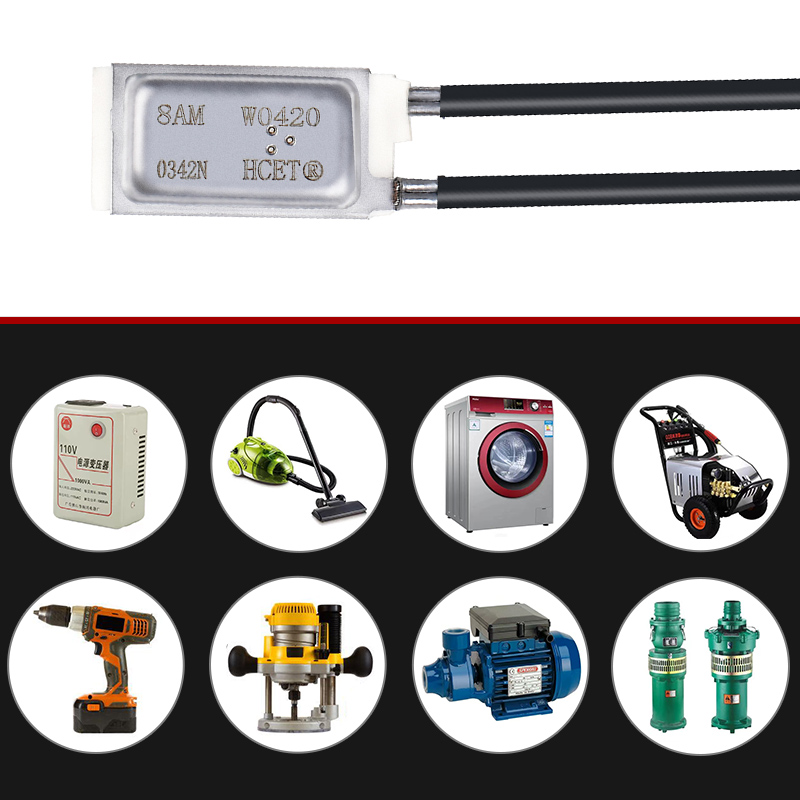

Applications

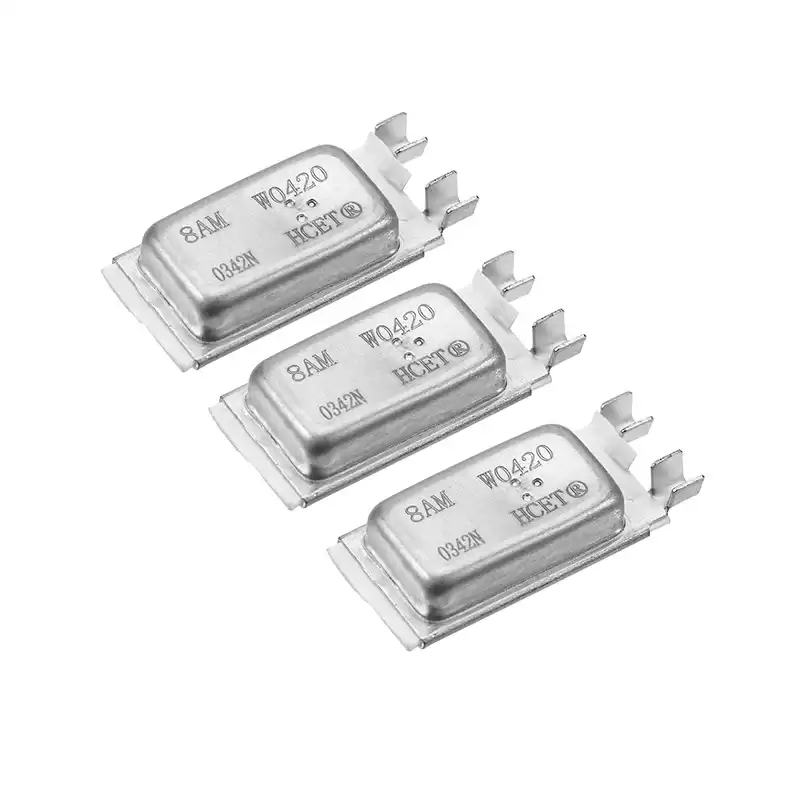

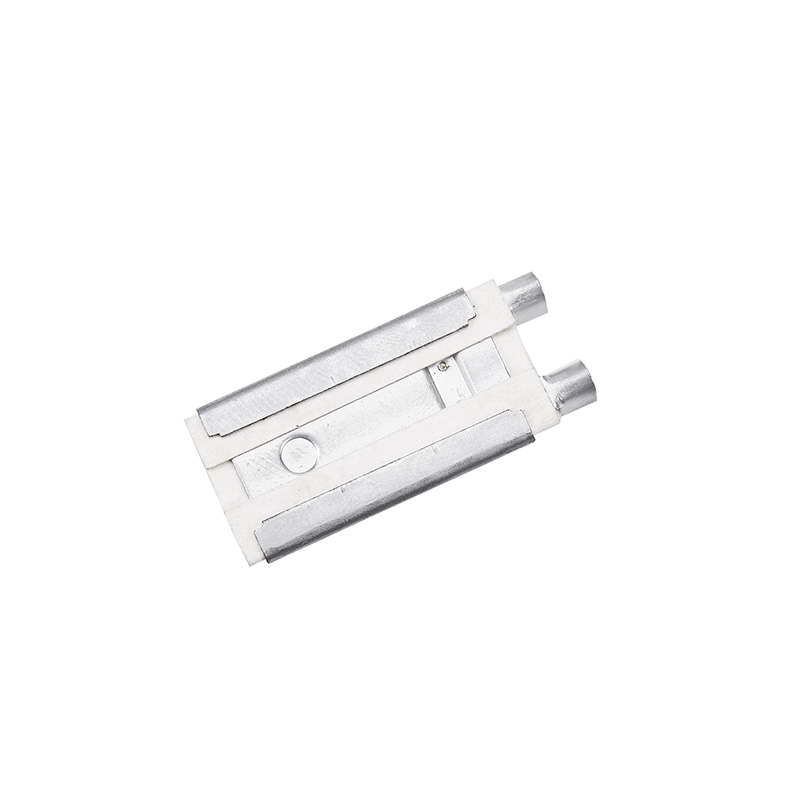

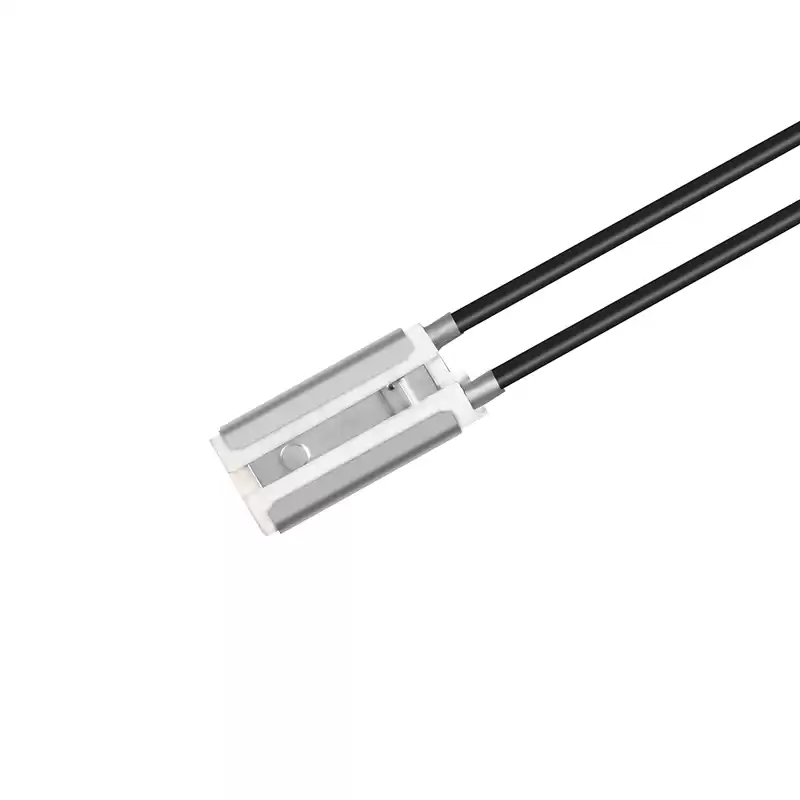

Product display

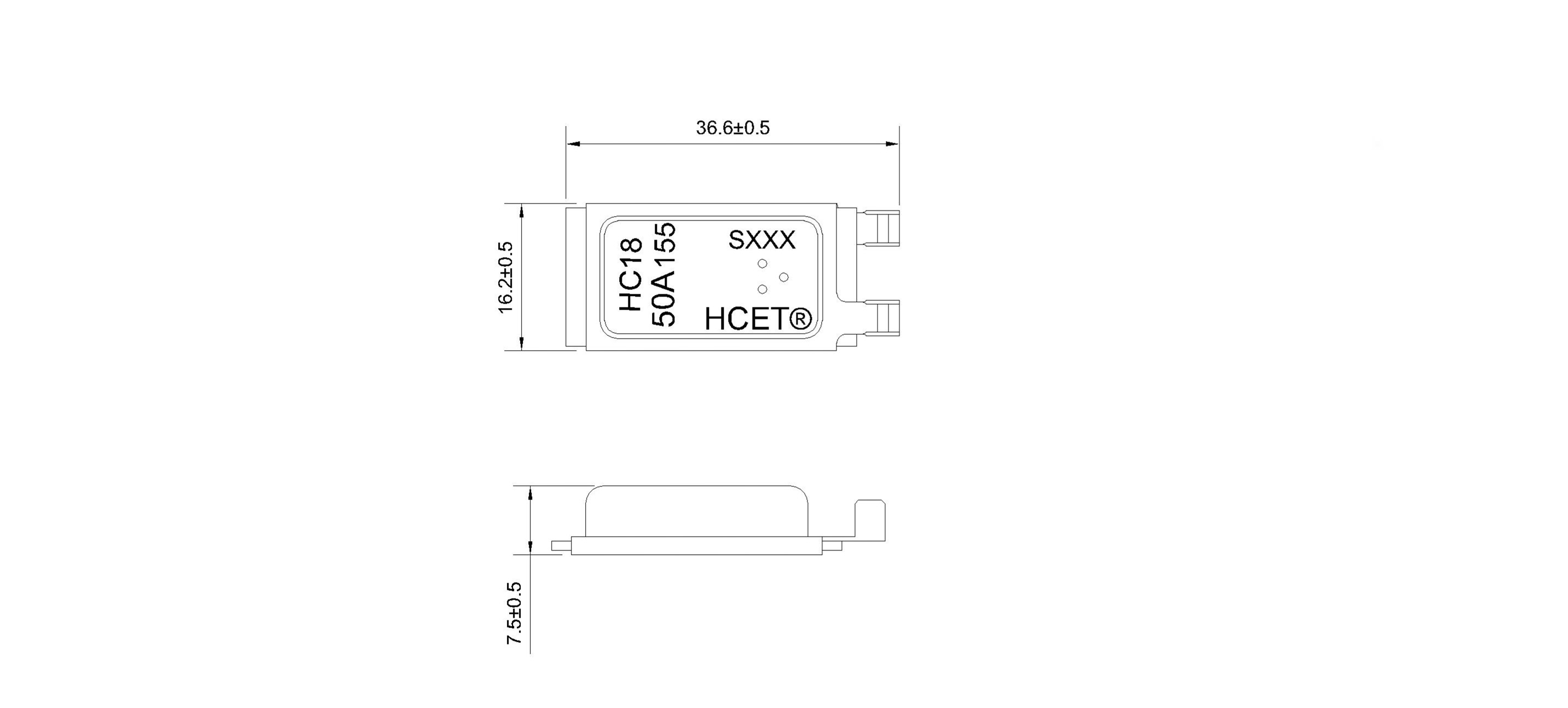

Size details
Packing & Delivery
Packing:
Packed in standard export cartons.
If you have special packing requirements,please feel free to discuss with us,thank you.
Delivery time:
Delivery time for small orders:7-15 days.
Delivery time for special requirements orders:15-30 days.
