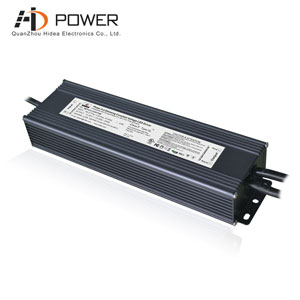

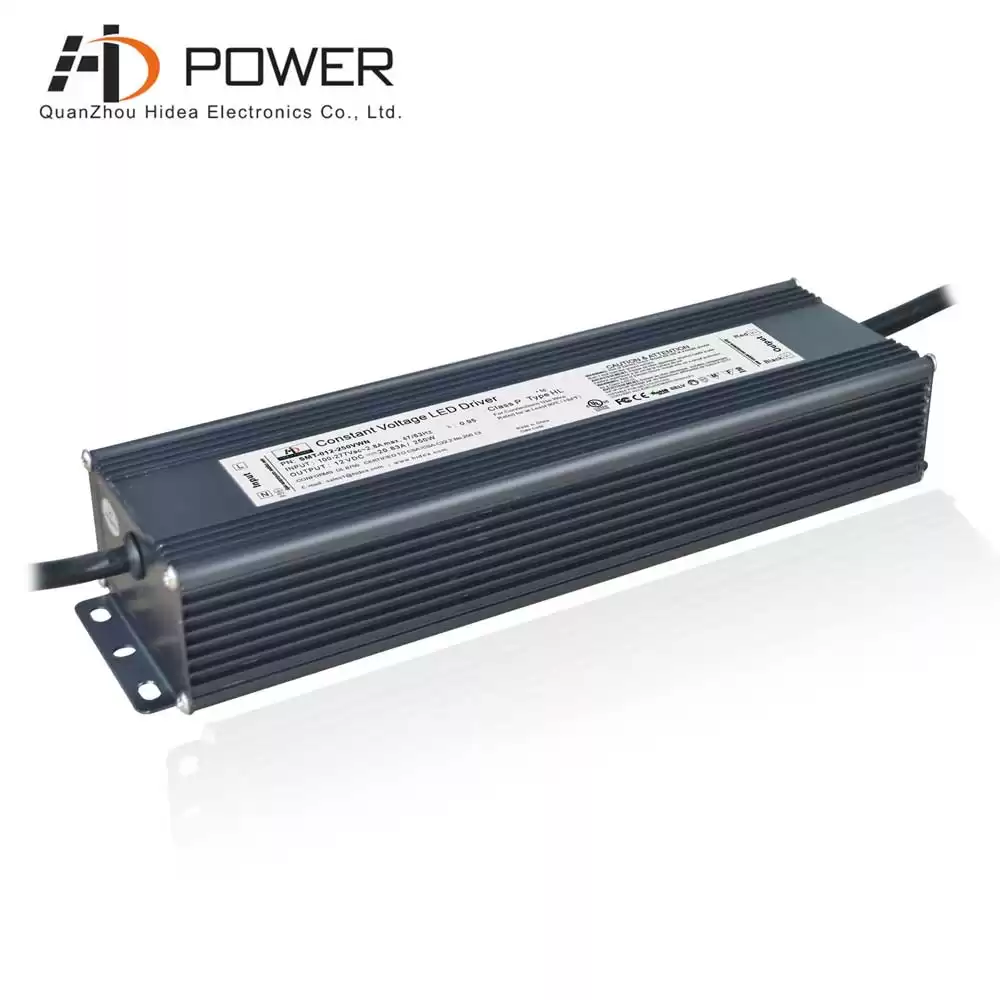

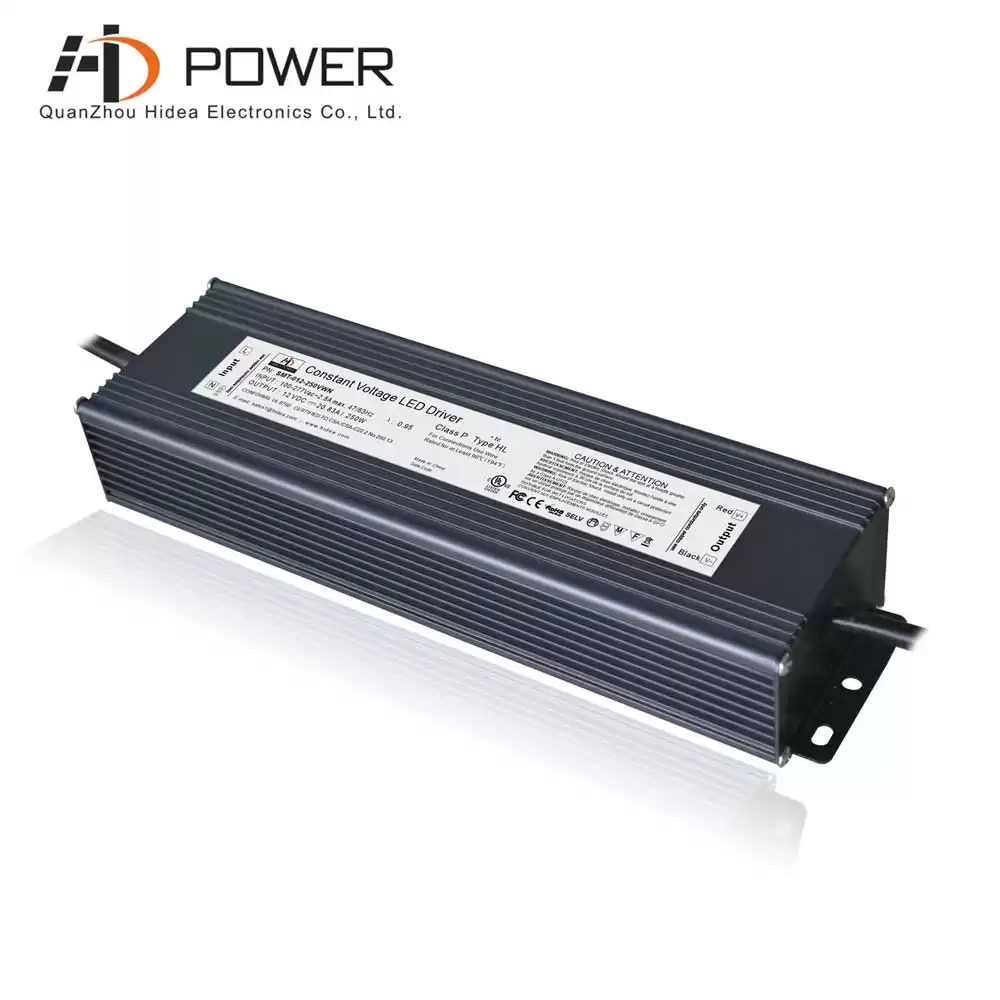

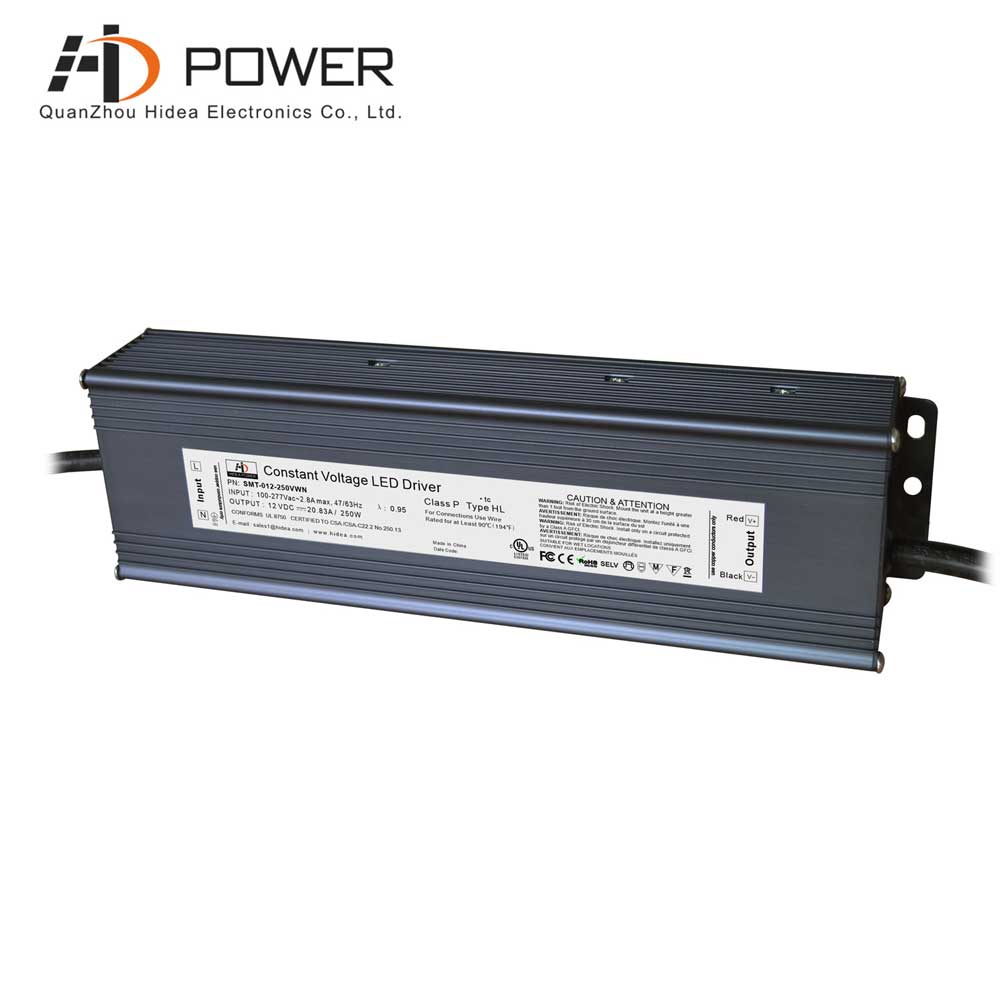

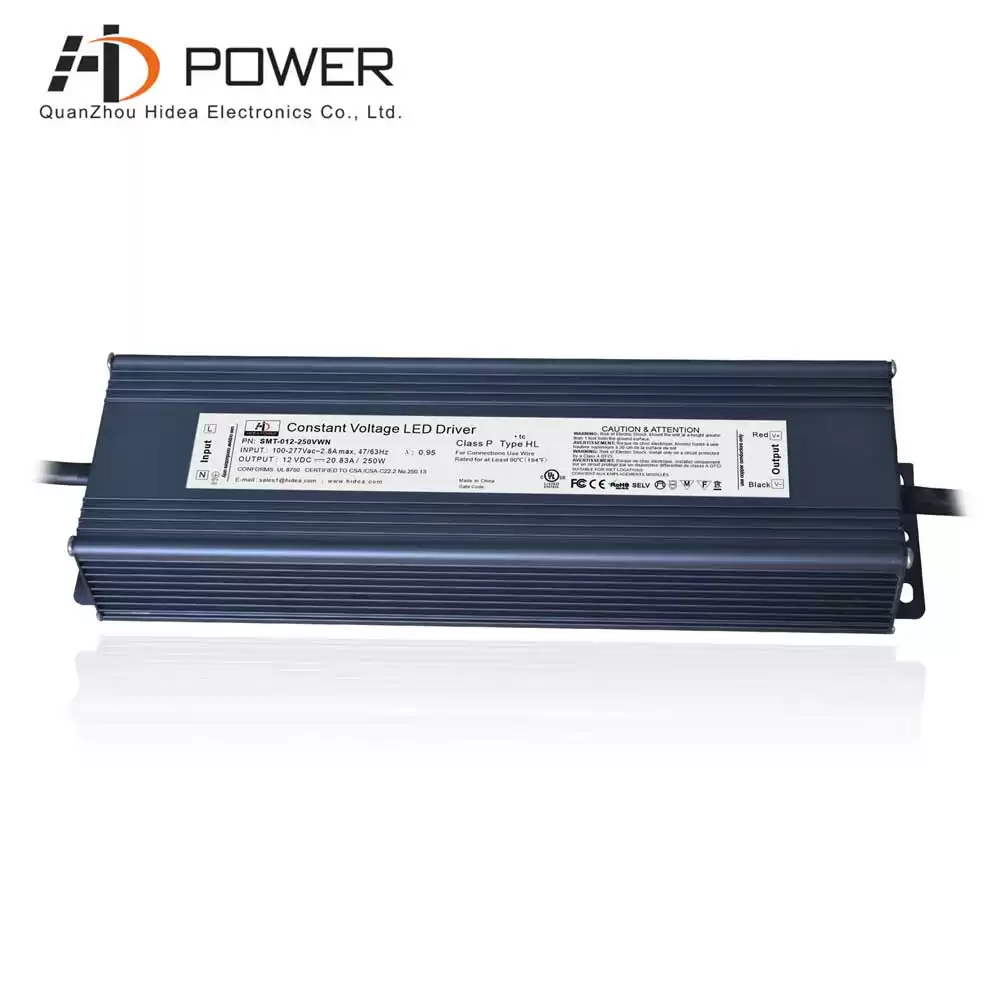

This ul listed led driver 12v 250w non-dimmable led driver, the aluminum case could suitable for dry, damp & wet location by connected with Premise Led Flat Panel Ceiling Light 4000K, and found in offices, hospitals, schools and more.
Specification
|
Model
|
SMT-012-250VWN
|
SMT-024-250VWN
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
±1%
|
|
Rated current
|
20.83A
|
10.41A
|
|
Rated power
|
250W
|
|
Input
|
Voltage Range
|
110-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(Typ.)@full load
|
0.99@120VAC; 0.98@230VAC;0.98@277VAC
|
0.99@120VAC; 0.98@230VAC; 0.98@277VAC
|
|
THD (Typ.)@ full load
|
<10%@120VAC <20%@230VAC <20%@277VAC
|
|
Efficiency(Typ.)@ full load
|
85%@120VAC; 89%@230VAC ;89%@2 77VAC
|
88%@120VAC; 92%@230VAC; 92%@277VAC
|
|
AC Current(Max.)
|
3.4A@110VAC
|
3.4A@110VAC
|
|
Inrush Current (Typ.)
|
20A, 50%, 1.9ms@120VAC; 60A,50%130us@230VAC; 35A,50%1.9ms@277VAC
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90% RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
|
Safety standards
|
UL8750
|
|
|
Withstand voltage
|
I/P-O/P: 1.88KVAC
|
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
Safety&EMC
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
EMC IMMUNITY
|
EN61000-4-2,3,4,5,6,11(Surge 4KV)
|
|
Weight
|
1.70Kg
|
|
Size
|
10PCS/CTN , Carton size: 385*335*200mm, 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type
SMARTS SMT-012-250VWN 12v led driver 250w is being a highly reliable and low cost way to deliver power to Premise Led Flat Panel Ceiling Light. The size is 276*78*47mm, suitable for dry & damp & wet location.
