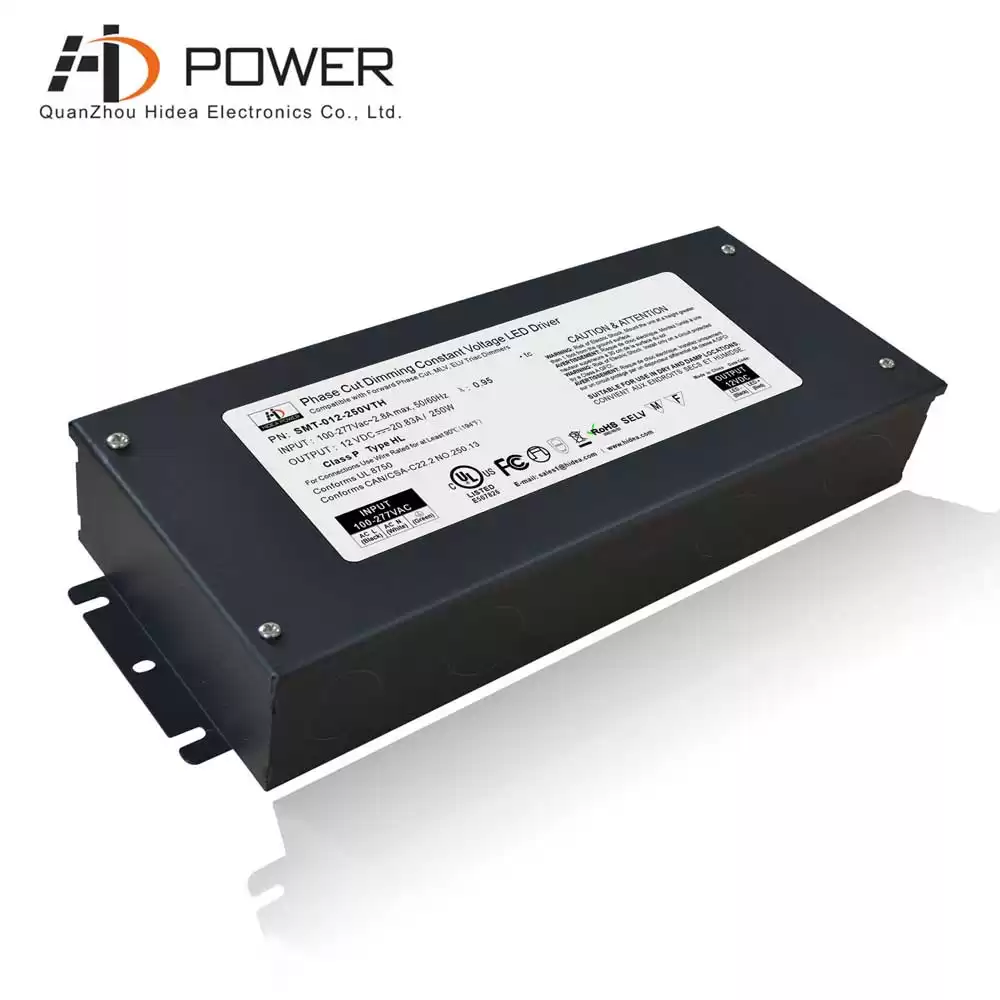

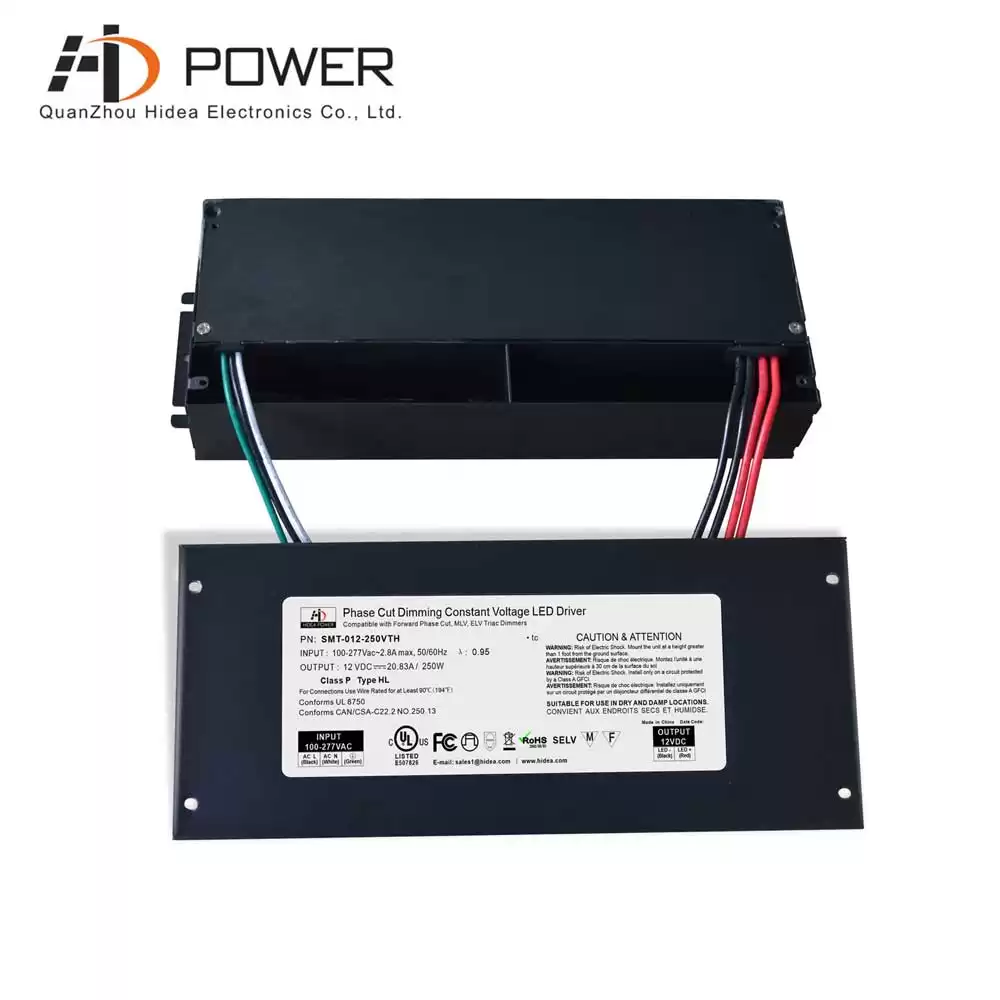

HIDEA's SMT-012-250VTH is 250w triac dimmable led driver with 277v input voltage for led lighting. It is 12Vdc 250W led driver with UL listed 7 years warranty. Its power factor is over than 98% and efficiency is higher than 87%.Performance is 2.03% higher than MOSO 250W dimming LED drivers.
Specification
|
Model
|
SMT-012-250VTH
|
SMT-024-250VTH
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Regulation
|
±0.5%
|
|
Voltage Tolerance
|
±0.5V
|
|
Load Regulation
|
±2%
|
±1%
|
|
Rated current
|
20.83A
|
10.41A
|
|
Rated power
|
250W
|
|
Input
|
Voltage Range
|
110-277VAC
|
|
Frequency Range
|
47-63HZ
|
|
Power Factor(Typ.)@full load
|
0.99@120VAC 0.97@277VAC
|
0.99@120VAC 0.97@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@ full load
|
86%
|
88%
|
|
AC Current(Max.)
|
3.4A@110VAC
|
|
Inrush Current (Typ.)
|
20A, 50%, 1.9ms
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90% RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
|
Safety standards
|
UL8750
|
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Safety&EMC
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
1.9Kg
|
|
Size
|
278*108*46mm (L*W*H)
|
|
packaging
|
10PCS/CTN 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type

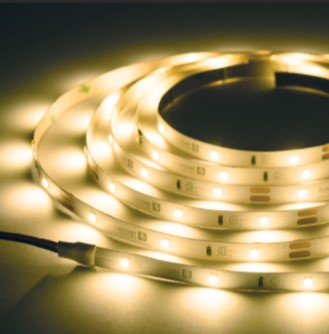

12v 250w triac dimmable led driver takes about 7 years warranty,and it is have short circuit/overload temperature protection.Through 100% full load burn-in test. It application with indoor & outdoor illuminating lights, like LED LIGHT & POWER led strip light.
Related Products
|

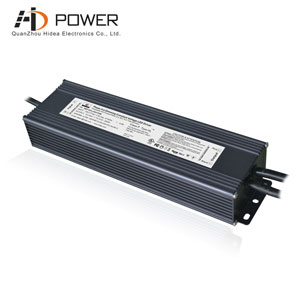

 UL listed 12v 250w triac dimmable led driver have high efficiency,high reliability,longer service lifetime
Mode：SMT-012-250VTHW
Dimming Mode : Triac Dimming
Output Power : 250W
intput voltage：100~277V AC
Size：276*78*47MM （L*W*H）
|
