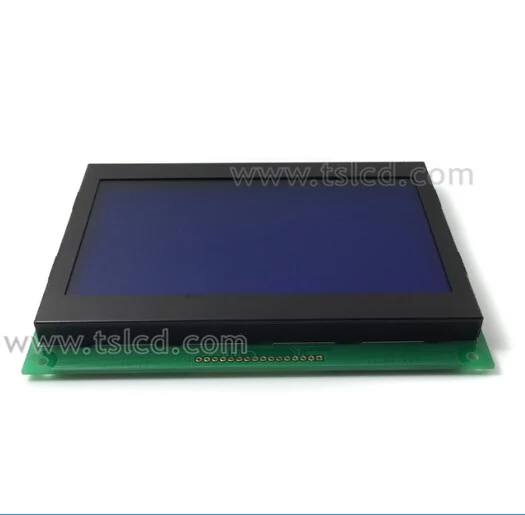

256x128 graphic lcd module

256x128 dots graphic lcd module

COB technology

STN-YG/ STN-blue/FSTN positive

Price competitive




Item Spec.
Description 256x128 dots, graphic lcd
Display type FSTN ,Positive,Transflective
Item 256x128 STN lcd, compatible with DMF682A
Special compatible with Optrex DMF682A
Operating voltage 5.0v
Outline(mm) 147.0x116.0x14.6max
View Area(mm) 122.0x70.0
Active Area(mm) 120.28x60.12
Controller IC NT7086/RA0086
Viewing direction 6H
Operating temperature -10°C-60°C
Storage temperature -20°C-70°C
Drive Mode 1/65 DUTY, 1/9 BIAS
Backlight LED
Polarizer Type Positive, Transflective


We offer a large range of Graphic LCD Modules. You can buy these LCDs the tester board at our online store tslcd.com.
