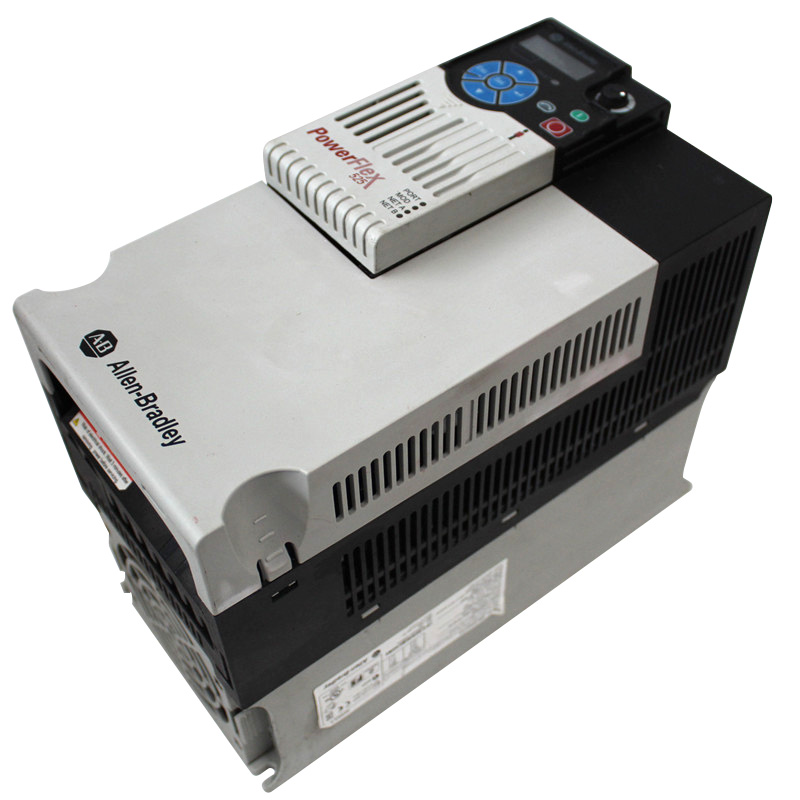

25B-D024N104 Allen-Bradley Frequency AC Drive

      About 25B-D024N104

• The Allen-Bradley 25B-D024N104 is a PowerFlex adjustable Frequency AC Drive. This drive, among any other adjustable frequency drives are primarily used to implement discrete motor control such as Start / Stop, Forward / Reverse, Jog / Manual and Automatic and Single / Continuous operation. Aside from carrying standard motor control commands, this adjustable frequency AC drive enables analog speed control through by providing PWM signal to the motor, implemented through a variety configurable control methods such as Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), Closed loop velocity vector control and Permanent Magnet motor control.

• Aside from the control methods supported by the 25B-D024N104 include positioning control through Closed loop feedback with an optional encoder card and Point-to-point positioning mode. It also implements PointStop technology which is a trademark of Allen-Bradley, used to halt motor load in a consistent manner without requiring use of an encoder feedback. This adjustable frequency drive also comes with integral Proportional + Integral + Derivative (PID) control algorithm capability which allow the drive to automatically regulate and maintain the speed of the motor at a specified setpoint without the need of an external controller that implements the same control algorithm.
• Commonly called as a Variable Frequency Drive (VFD), Variable Speed Drive (VSD), Adjustable Speed Drive (ASD) or simply a frequency inverter, this unit operates when supplied with nominal voltage of 480VAC, 3-Phase. It delivers output power of 7.5 kW or 10.0 HP for both normal and heavy-duty operation. The drive’s output Current is 24.0 Amperes with an IP20 NEMA / Open rated enclosure.

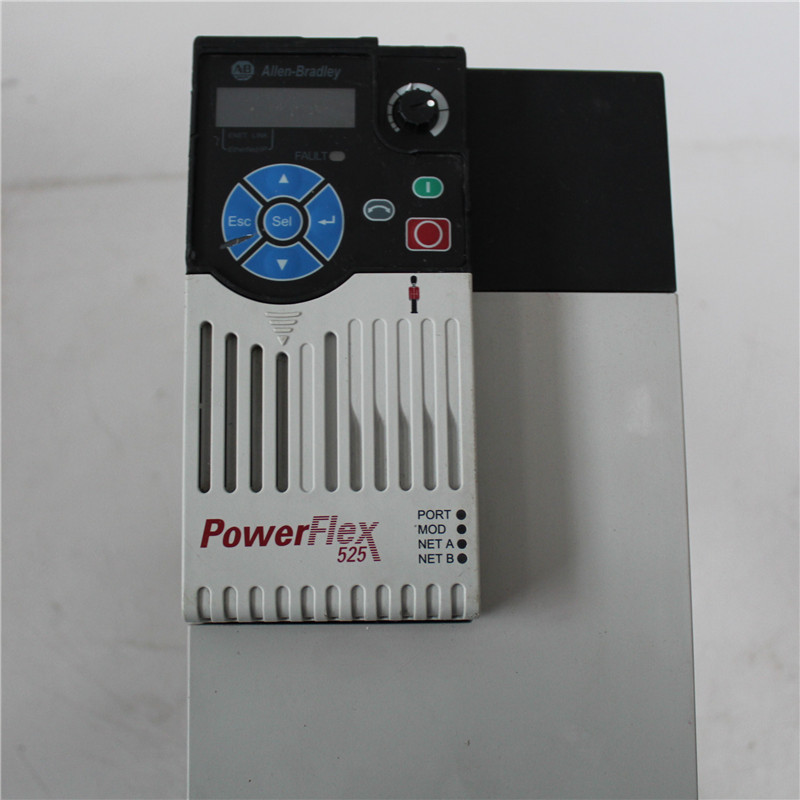

• The 25B-D024N104 features an innovative modular design and it is, therefore, one of the fastest and easiest PowerFlex 525 drives to install. The 25B-D024N104 is a cost-effective drive because it comes with the economizer motor control features that allow the motor to save energy. The 25B-D024N104 comes with an embedded EtherNet/IP port with integral an RS-485 port with Modbus RTU/DSI for communication. Another human-machine integration interface is the LCD screen which allows for text scrolling. The LCD screen comes with support for multiple languages and allows MainFreeâ„¢ programming through the provided USB cable. The 25B-D024N104 also features embedded input/output ports with 7 digital inputs and 2 digital outputs. There are 2 analog inputs with 1 analog output and 2 relay outputs. The 25B-D024N104 comes with an internal brake IGBT for the brake resistors. The 25B-D024N104 comes with various certifications that include the ACS 156, ATEX, C-Tick, c-UL, UL and CE, among several other certifications.
