ES2312X-3LCD10

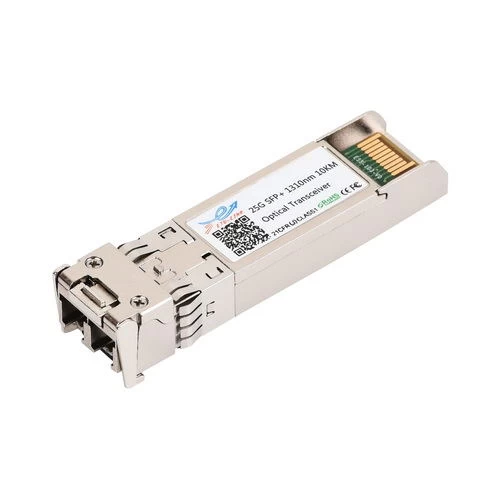

25Gbps 1310nm SFP28 Transceiver
Features
Ø Hot-pluggable SFP28 form factor
Ø Supports 25Gbps data rate
Ø Maximum link length of 10km
Ø 1310nm DFB laser and PIN photo-detector
Ø Internal CDR on both Transmitter and Receiver channel
Ø Duplex LC receptacle
Ø Single 3.3V power supply
Ø Power dissipation < 1.5W
Ø Digital diagnostics functions are available via the I2C interface
Ø RoHS-6 compliant
Ø Commercial case temperature range: 0°C to 70°C
Applications Applications
Product description
The ES2312X-3LCD10 is a single-Channel, Pluggable, Fiber-Optic SFP28 for 25 Gigabit Ethernet and Infiniband EDR Applications. It is a high performance module for short-range data communication and interconnect applications which operate at 25.78125 Gbps up to 10km. This module is designed to operate over single mode fiber systems using a nominal wavelength of 1310nm. The electrical interface uses a 20 contact edge type connector. The optical interface uses duplex LC receptacle. This module incorporates proven circuit and technology to provide reliable long life, high performance, and consistent service.
