25kV 200A Series Connector & Insert American Type Cable Accessorie

The 25kV 200A cable accessories are safe, high-quality components designed for use in high-voltage systems. Conforming to IEEE386-2016 standards, these accessories are suitable for applications such as ring main units, transformers, and cable branch boxes. They provide reliable connections and enhance system performance, ensuring long-lasting and secure functionality for medium-voltage cable systems.

Facebook Twitter Pinterest LinkedIn 分享

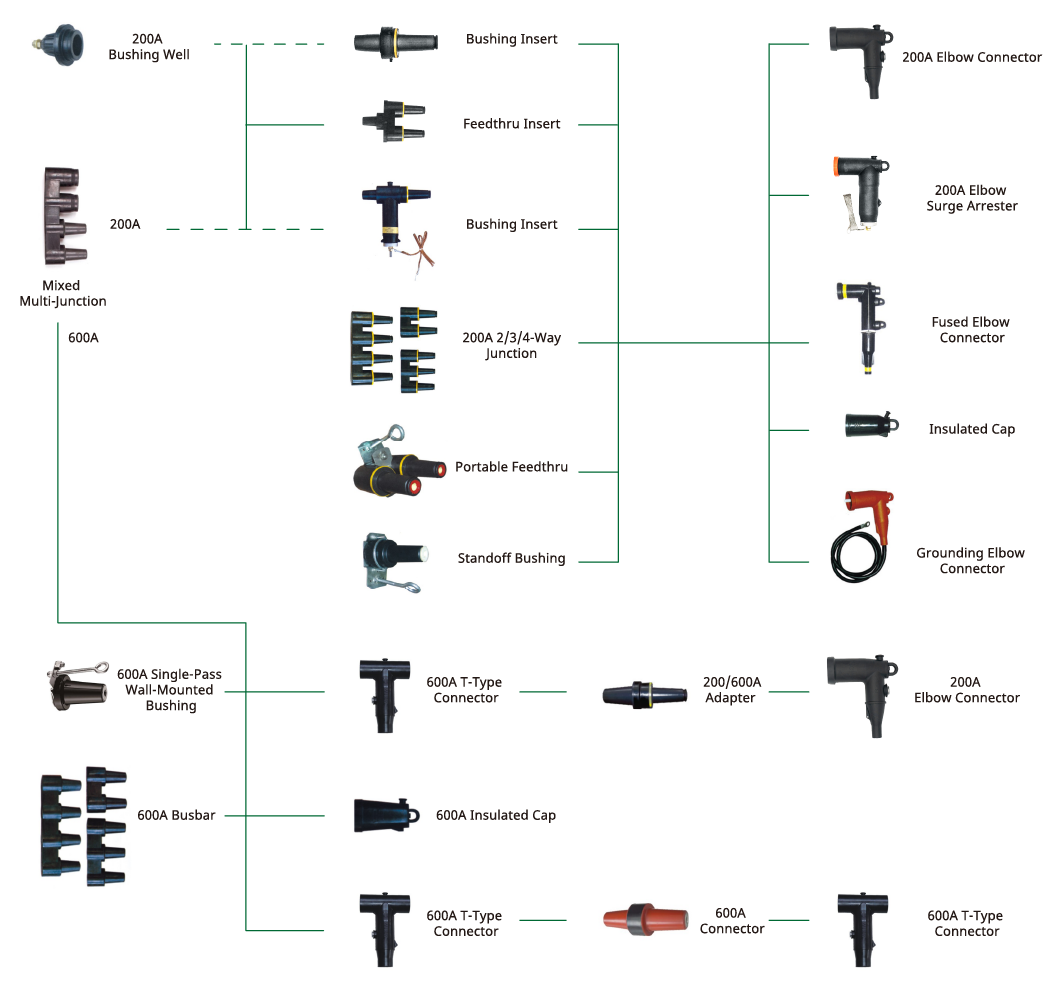

  • ANSI / IEEE Standard American Type Cable Accessories Overview

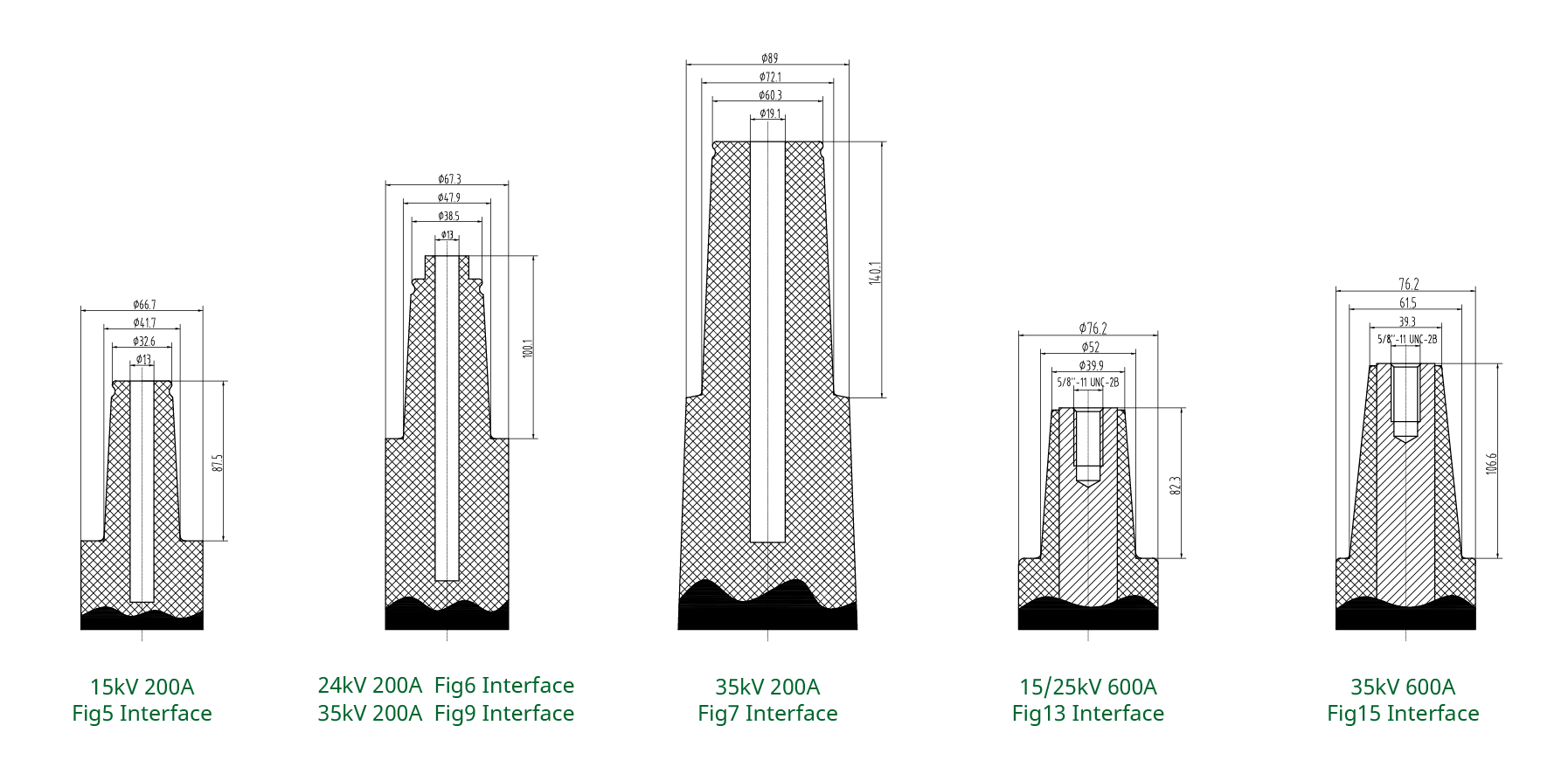

  • IEEE386-2016 American Type Separable Connector Interface















  • 25kV 200A Series Cable Accessories

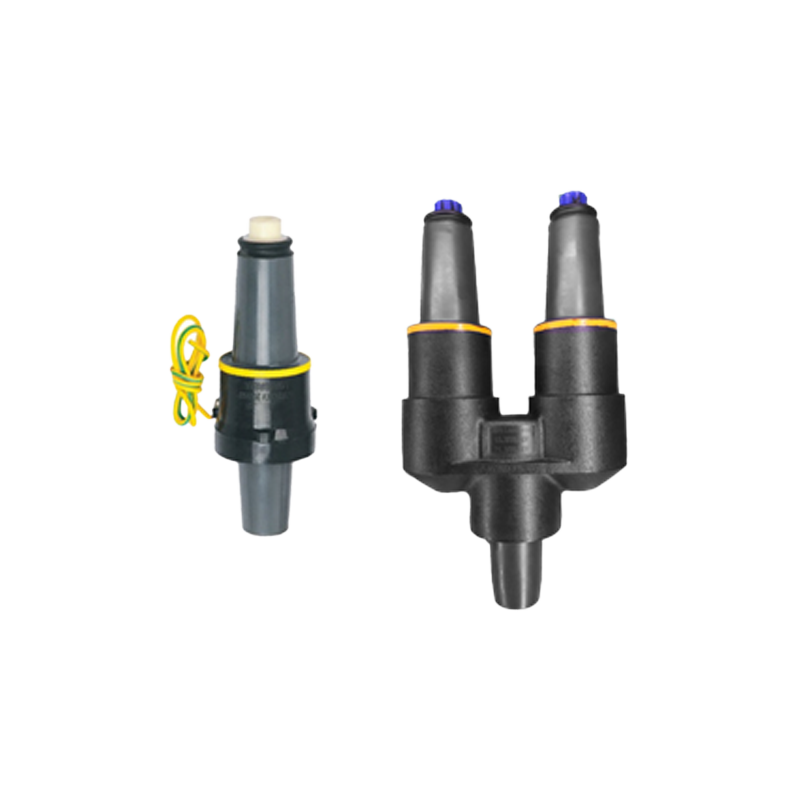

25kV 200A Bushing Insert

25kV 200A Rotatable Feedthru Insert
  • High-quality Insulation Materials
  • Mates with Bushing Well and Provide Interfaces for Elbow Connectors
  • Conforms to IEEE386-2016, Interface Figure 6
  • Applications: Suitable for Inlet Lines of Ring Main Units, Transformers, Cable Branch Boxes






  • Insulated, Shielded, Touch-safe
  • Compatible with 15.2/26.3kV XLPE Cables, 25-120 mm² Cable Cross-Section
  • Interface Figure 6, IEEE386-2016 Standards
  • Applications: Suitable for the Outlet Lines of Ring Main Units, Transformers, Cable Branch Boxes

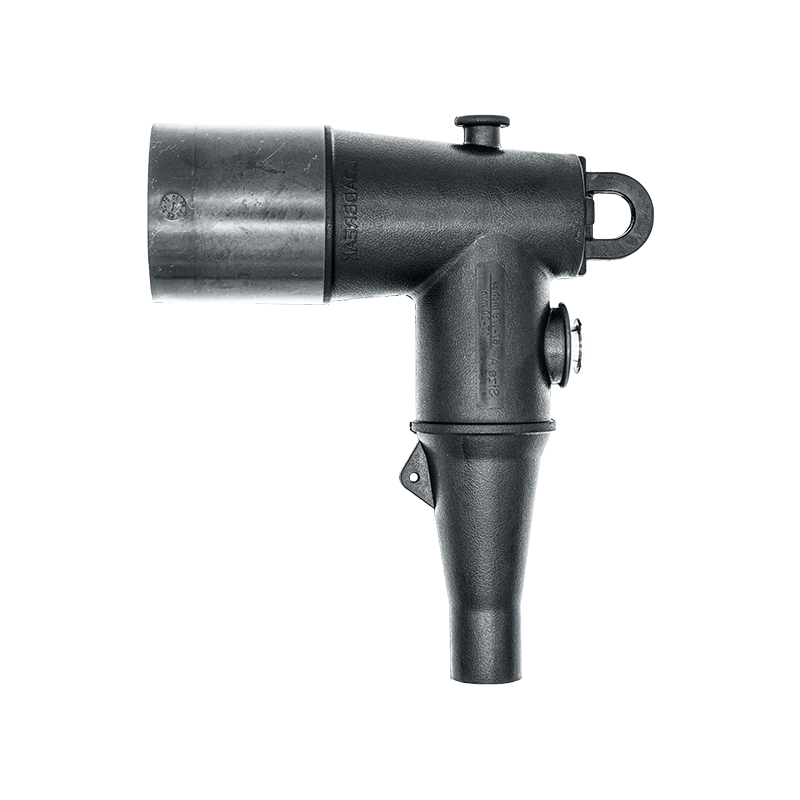

25kV 200A Elbow Cable Connector

















  • Specifications



200A American Type Loadbreak Connector


Rated Voltage 15kV 25kV 35kV
Rated Current 200A 200A 200A
Partial Discharge Q≦5pC@11kV Q≦5pC@19kV Q≦5pC@26kV
AC Withstand Voltage 34kV/1min 40kV/1min 50kV/1min
Lightning Impulse Withstand Voltage 95kV 125kV 150kV
Short Time Withstand Current 3.5kA，3S 3.5kA，3S 3.5kA，3S
Rated Breaking Current 14.4kV，200A，10 times 26.3kV，200A，10times 36.6kV，200A，10times
Fault Making Current 0.17S，10kA，10times 0.17S，10kA，10times 0.17S，10kA，10times
Conductor Cross Section 25-120mm² 25-120mm² 25-120mm²
