Product Name
25KWh Lithium Deep Cycle Battery 48V 500Ah for Off Grid Solar System
Highlights
-
Long lifetimes - 6000 cycles @85% DOD (dependant on actual DOD, usage & temp.) and low self-discharge rate
-
Easily scalable and stackable 5kWh modules - up to 200kWh in a single installation
-
A self-designed BMS protects the cell from overcharge, over-discharge, over current, short circuit .
-
Built-in accessible 125A DC breaker On/Off switch - increases safety .
-
Communication Protocol: Optional RS232/RS485/Can
-
Simple rack-based installation system
-
LCD display available

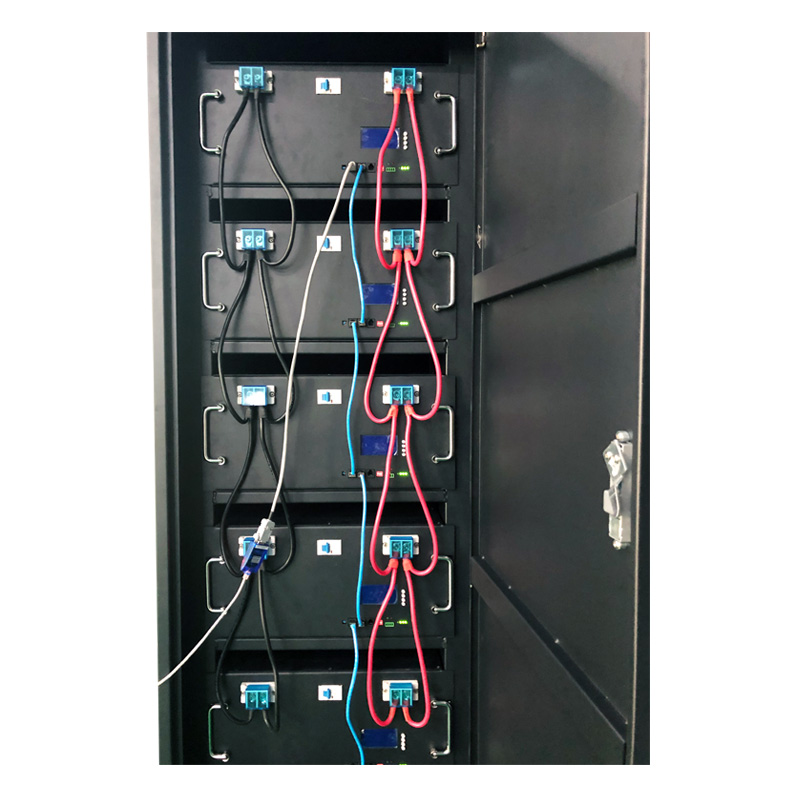

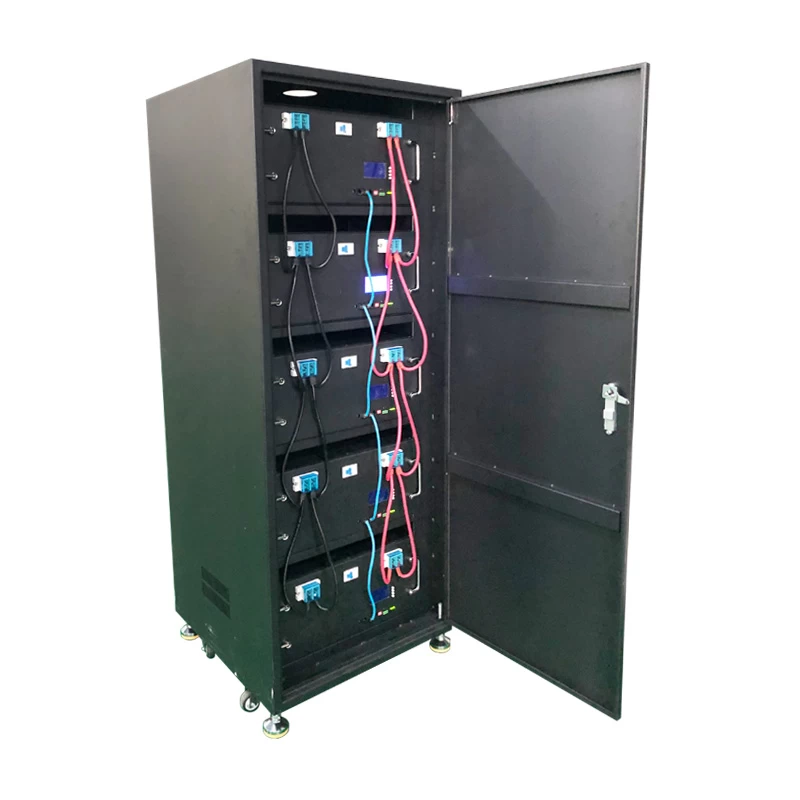

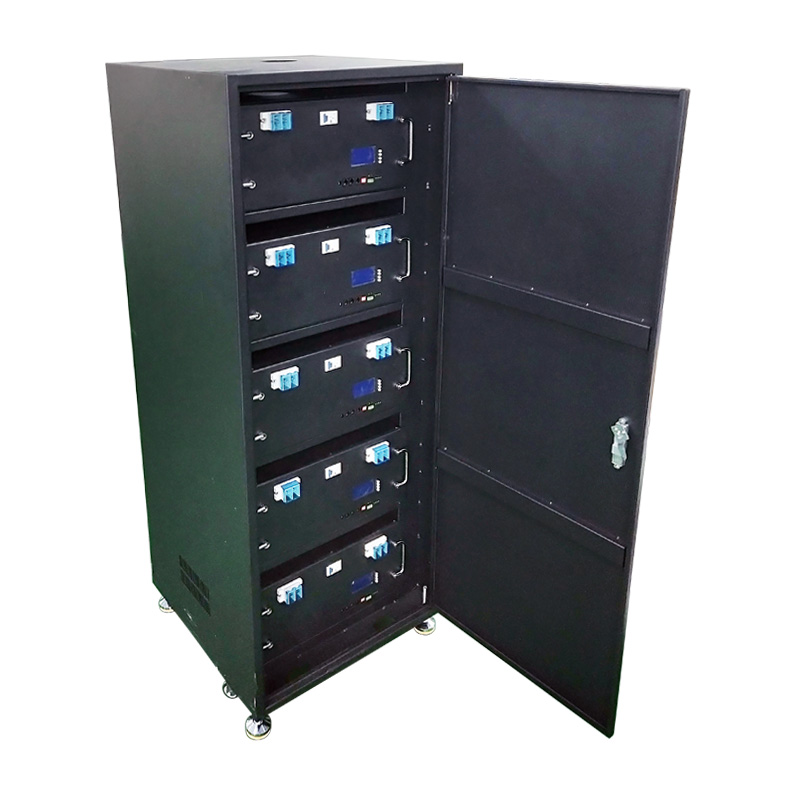

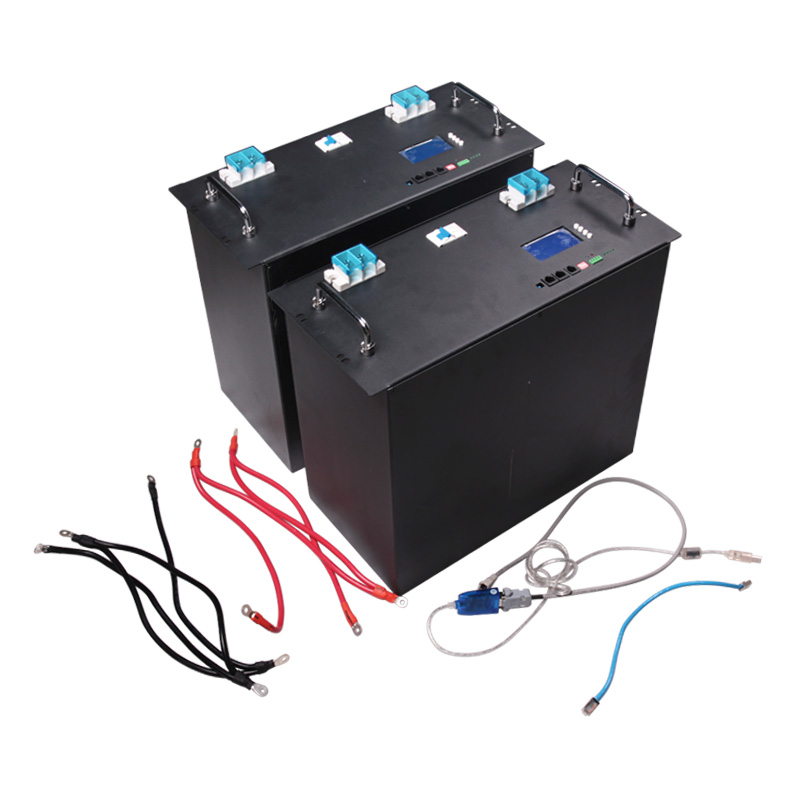

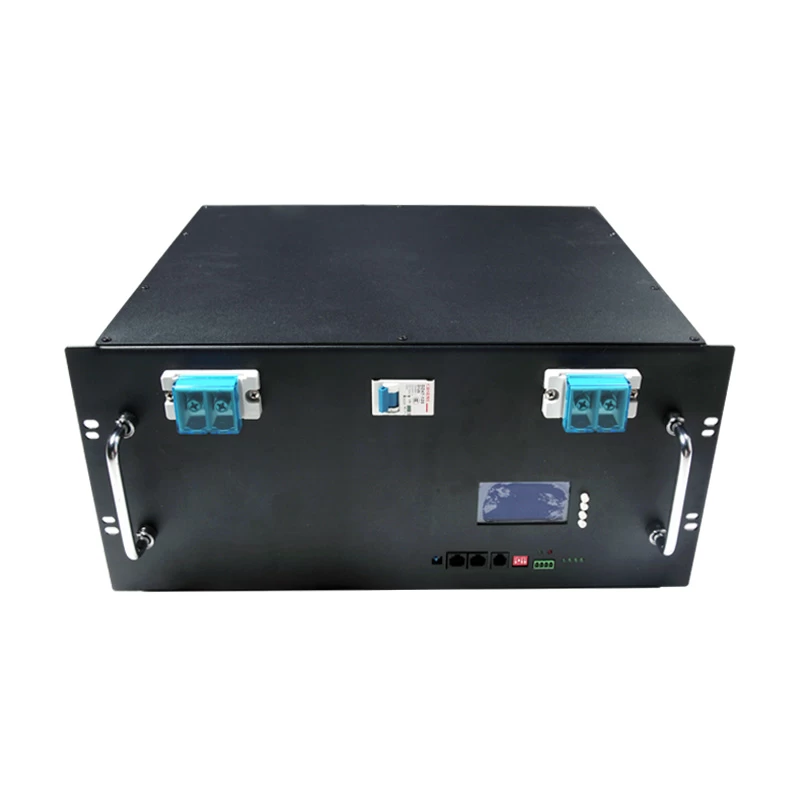

48Volt Solar Power Systems Battery Storage 48V500Ah Picture as Below
Our 48v solar battery pack is scalable energy storage from 5 to 200 kWh
Specification for LiFePO4 solar 48v 500Ah 25KWH System
|
MODEL
|
OSN-ESS-48500L
|
|
PERFORMANCE
|
|
Rated Capacity (5hr)
|
500 Ah
|
|
Nominal Voltage
|
51.2 V
|
|
Discharge Ending Voltage
|
32 V
|
|
Charging Limited Voltage
|
58.4 V
|
|
Max. Charging Current
|
200 A
|
|
Max. Continuous Discharging Current
|
200 A
|
|
Parallel Connection
|
Optional (up to 16P). When paralleling Max. charging current = 20A
|
|
Containing Cell
|
3.2V LiFePO4 Cell
|
|
Design Life
|
More than 10 years
|
|
Cycle Life
|
6000 cycles @85% DOD (dependant on actual DOD, usage & temp.)
|
|
Discharge Rate
|
1C
|
|
Response Time
|
> 1ms
|
|
MECHANICAL SPECIFICATIONS
|
|
Dimensions (W*D*H)
|
600*600*32U
|
|
Weight
|
270Kg
|
|
Enclosure
|
5U steel enclosure with protection handles
|
|
Communication Ports
|
RS485 RS232 & Can available
|
|
OTHER
|
|
Operating Temperature
|
Charging: 0 to +45°C / Discharging: -20 to +60°C
|
|
Storage Temperature
|
-20 to +60°C
|
|
Humidity
|
5% to 95% Relative Humidity (Non-condensing)
|
|
Warranty
|
5 years
|
Other Features
-Safe
OSN LFP battery modules are a practical and economical battery system based on Lithium-iron-phosphate technology (LFP or LiFePO4).
-scalable
Available in standard 2.5kWh modules, the LFP battery modules can be easily scaled in multiples up to 200kWh in a single installation, making them suitable for a range of applications.
-Efficient
OSN's LFP battery modules feature a round-trip efficiency of 92%, low self discharge rate of 3+ years, and unlike traditional lead acid battery.
Application:
Related Products
With 10 years experience of making LiFePO4/NCM/LTO packs, we can customize any packs for you.
Please email us at service@osnpower.com to get solution and quotation.
