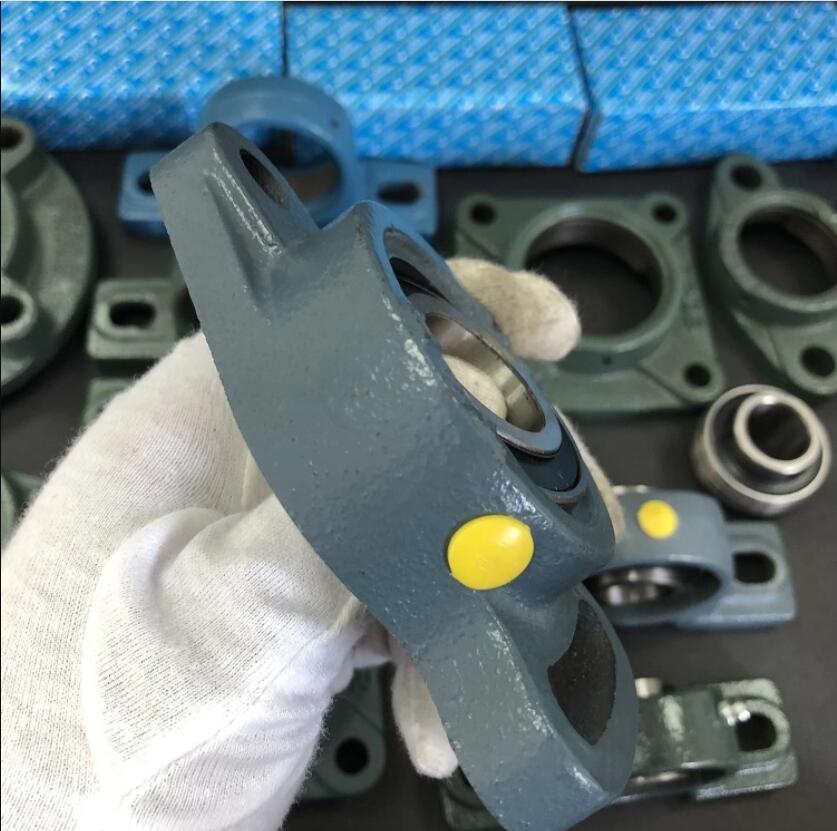

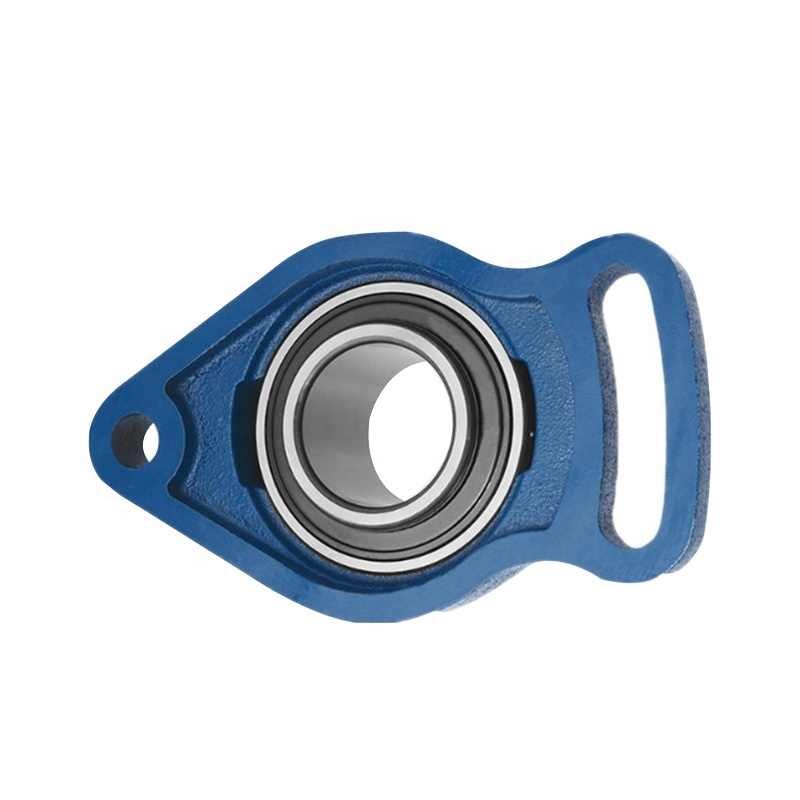

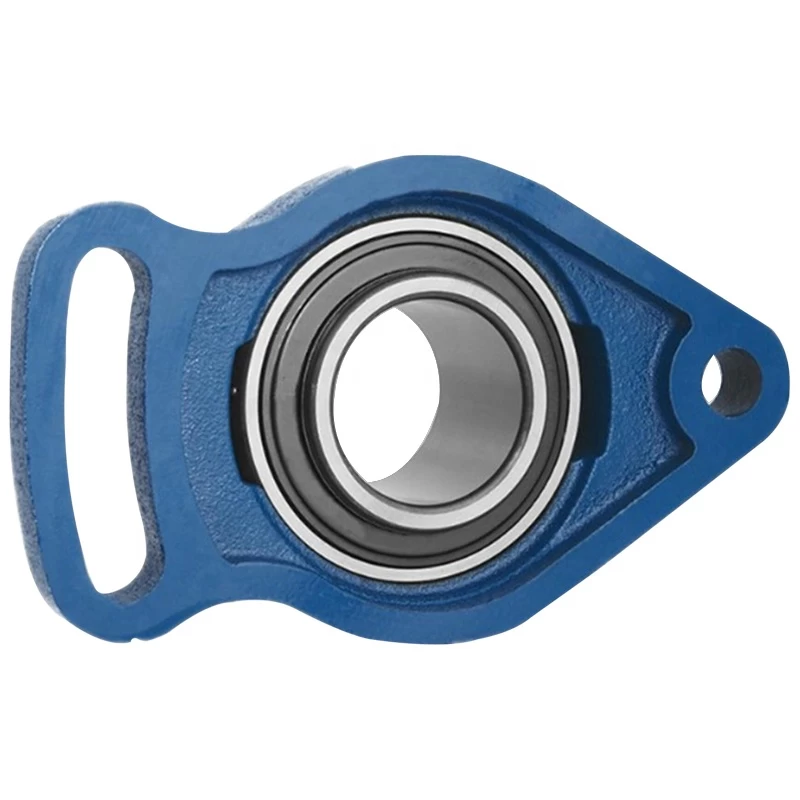

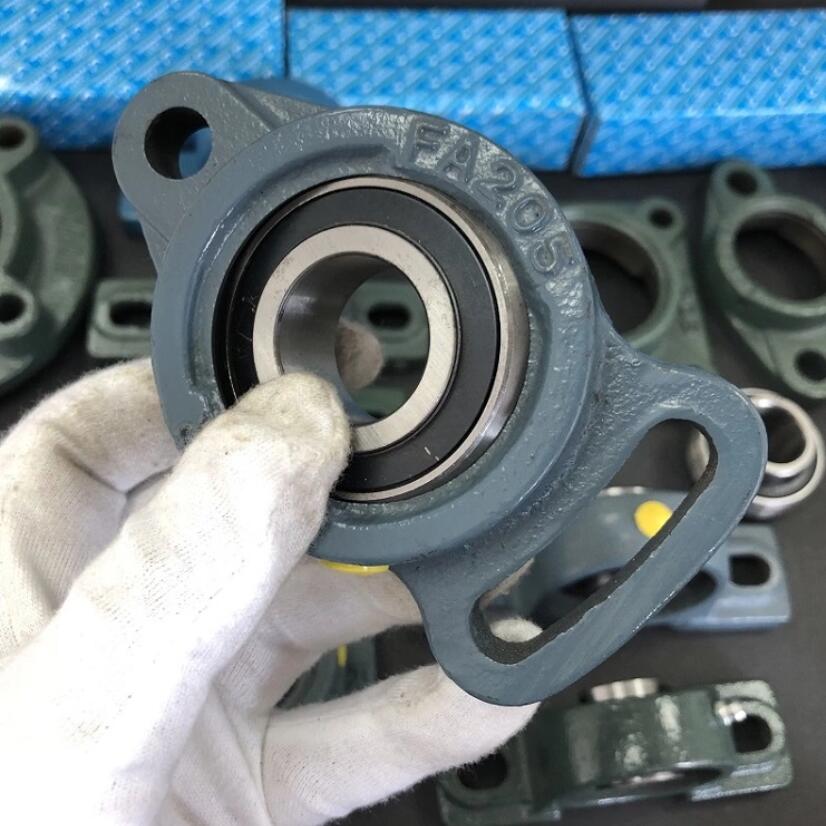

25mm 3 Bolts Flange Pillow Block Insert Bearing UCFA205 In Stock Introduction :
|

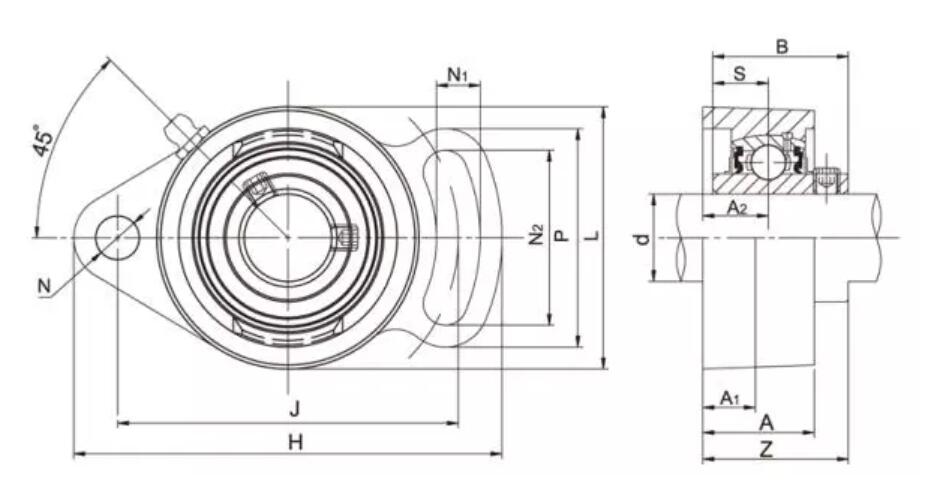

Inside
Diameter (mm)
|
25
|
|
H (mm)
|
125
|
|
J (mm)
|
98
|
|
A2 (mm)
|
16
|
|
A1 (mm)
|
14
|
|
A (mm)
|
27
|
|
N (mm)
|
12
|
|
N1 (mm)
|
13
|
|
N2 (mm)
|
5
|
|
L (mm)
|
70
|
|
P (mm)
|
65
|
|
B (mm)
|
34.1
|
|
S (mm)
|
14.3
|
|
Z (mm)
|
35.8
|
|
Bolt
Size
|
M8 (3/8")
|
|
Bearing
Insert
|
UC205
|
|
Housing No
|
FA205
|
|
Weight (kg)
|
0.69
|
MKL Cast Iron Bearing Features:
Housing: Gray Cast Iron HT200
Bearing Insert: Chrome Steel
Bearing Seal: Standard Nitrile Rubber protected with Slinger
Slinger: Sheet Steel
Grease Nipple: Carbon Steel - Clear Zinc Plated
Set Screw: Carbon Steel - Oxided Black
Grease: Chevron SRI-2
Working Temperature range: -20°C to +90°C ( -4°F to + 248°F )
Bearing Unit Number :
UCPA series:
UCPA201, UCPA202, UCPA203, UCPA204, UCPA205, UCPA206, UCPA207, UCPA208, UCPA209, UCPA210, UCPA211, UCPA212, UCPA213
We Can Produce Many High Precision Bearing House:
China Bearing housing are also designed with a certain degree of self-alignment, they are easy to install, and have a double-structured sealing device that can work in harsh environments. There are many type of pillow block,such as vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), ring seat (C), slider seat, etc. T).
Bearing Block Types:
1)Pillow blocks mounted bearings– these include UCP, HCP, UCLP, UKP, UCPX, and UKPX.
2)Flange type– includes UCF, HCF, UKF, UCFX, UKFX, UCFU, UCFC, UKFC, UCFS, UCFL, UKFL, UCFT.
These bearing housing are with square ,round types
3)Take-up units type - UCT, HCT, and UKT.
These bearing housings are widely used in conveyor chains and conveyor belts.
We professional chinese bearing unit manufacturer in China ,we also are can provide other brand bearing units such as ,TNT ,NSK,IKO,NACHI ASAHI Pillow Block Bearing.
MKL Pillow Block Bearing Can Be Widely Used In:
Bearing housing with compact structure, convenient loading and unloading, perfect sealing, suitable for simple support are often used in below area:
1)Agriculture,
2)Light textile,
3)Mining,
4)Food &beverage,
5)Pharmaceutical,
6)Chemical processing,
7)Printing,
8)Dyeing,
9)Various kinds of conveying and rolling devices.
If you need quotation for bearing housing,pls feel free to contact with us ,bearing housing is main of our products .
