Wall panel features
☆ Cost saving: Economical EPS wall panels as insulated partition;
☆ Light weight: Easy to install,because of lightweight characteristics;
☆ High strength: Yumisteel use high density EPS to make panel more hard to improve the strength;
☆ Elegant appearance: There are two types profile can be made on panels,with V ribs or pure flat.Also wide range of colors for choices.
Wall panelling application

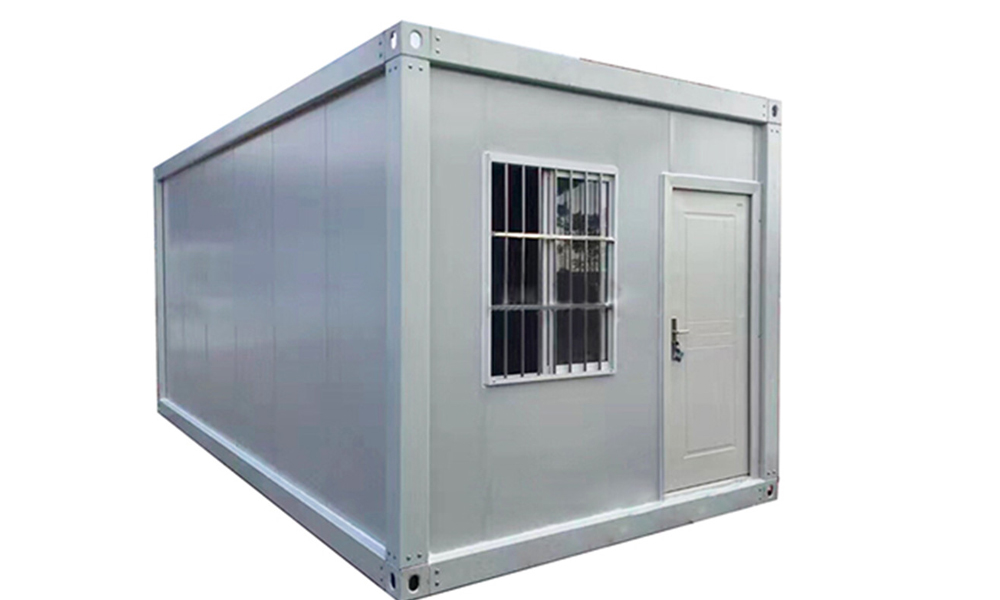

EPS wall sandwich panels are mostly used in temporara buildings,such as cheap container houses for offices,dormitories or prefab temporary buildings in construction site.

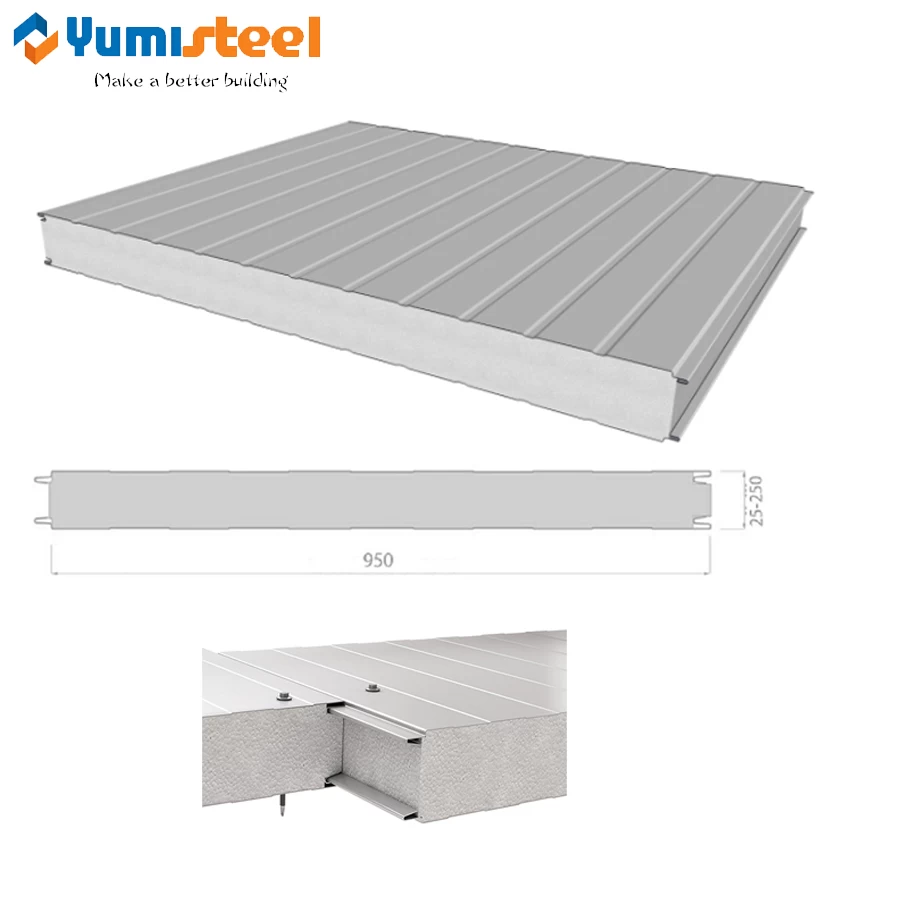

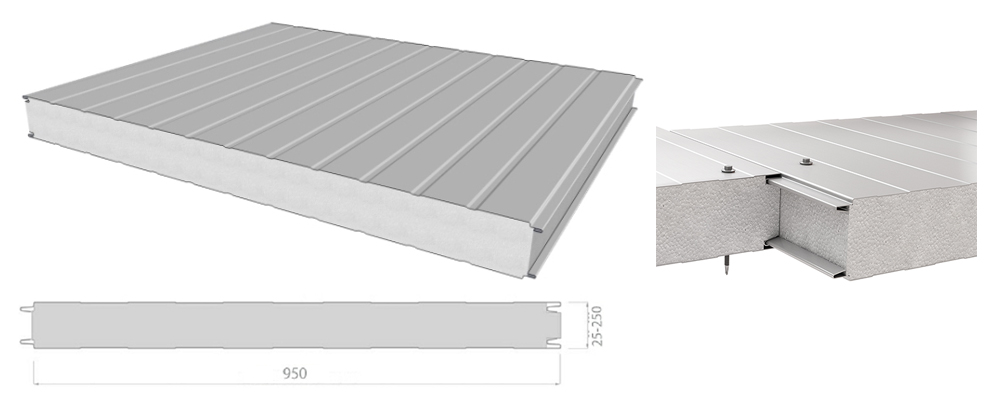

Joint ways of EPS wall sandwich panel
Z lock joint way can make sure panel without space and improve the insulation and air tightness performance.
Metal wall panels specifications
|
Effective width
|
950 mm
|
|
Panel thickness
|
25 mm
|
|
Surface sheets
|
PPGI/ PPGL/ Aluminum sheets/ Al-Mg-Mn alloy metal sheets/ Stainless steel/ PVC sheet
|
|
Steel thickness
|
0.40 - 0.70 mm
|
|
Aluminum sheets/ Al-Mg-Mn alloy metal sheets
|
0.70 - 1.20 mm
|
|
Stainless steel
|
0.40 - 0.60 mm
|
|
Core material density
|
8 - 20 KG/M³
|
|
Regular panel color
|
White grey, Sea blue, Sliver grey, Dk grey, Iron grey
|
|
Other color
|
As RAL color swatches or customized
|
|
Coating type choice
|
PE/ PVDF/ HDP/ SMP, etc.
|
|
Available length
|
20FT container: ≤ 5.95m
40FT container: ≤ 11.95m
|
|
Joint way
|
Z lock & overlap joint
|
Eps sandwich panel surface treatment
There are two kinds of surface treatments,V shaped trapeze and smooth profile.You can choose as per your need.

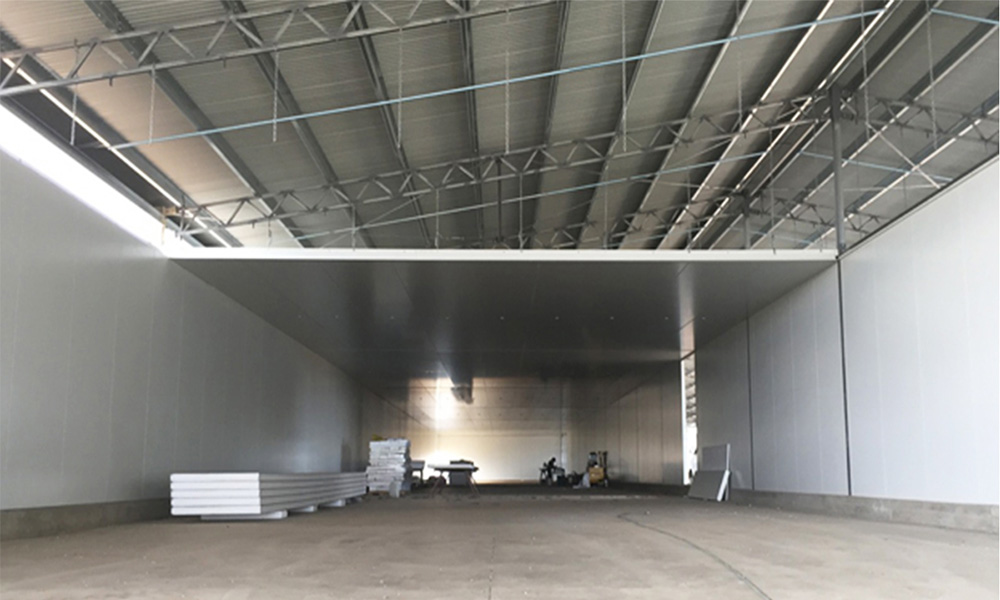

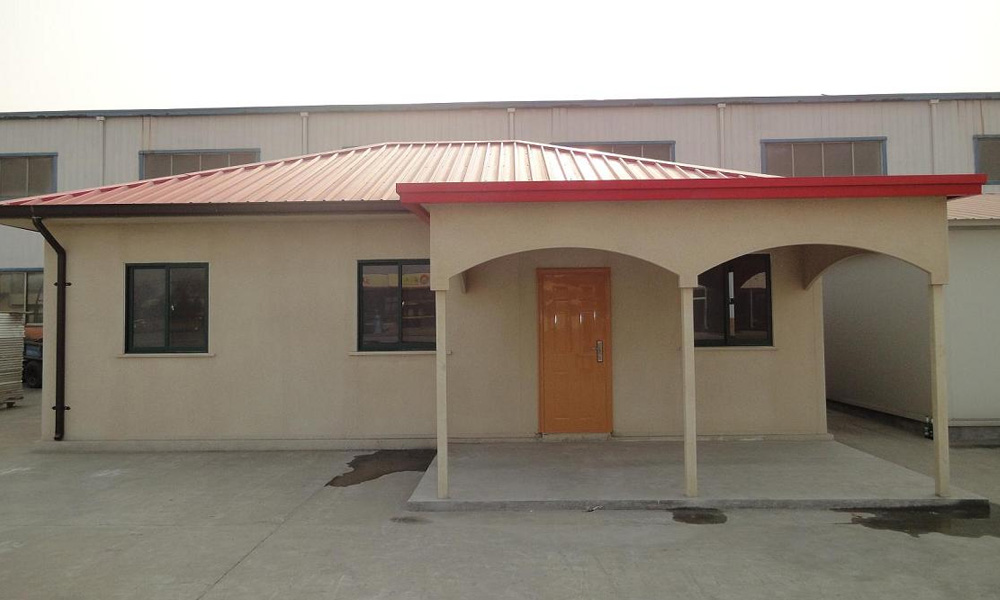

Sandwich panel application renderings
Packing & Delivery:
☆ Packing:
Seaworthy packing standards:
PVC on both sides to protect the roof panel surfaces;
Packed with kraft paper to protect the panel ends;
Put EPS foam on the each space to keep the panels from squeezing each other.
If you have special requirement,please feel free to discuss with us.This is to make us improved,and protect your goods well.
☆ Delivery:
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
