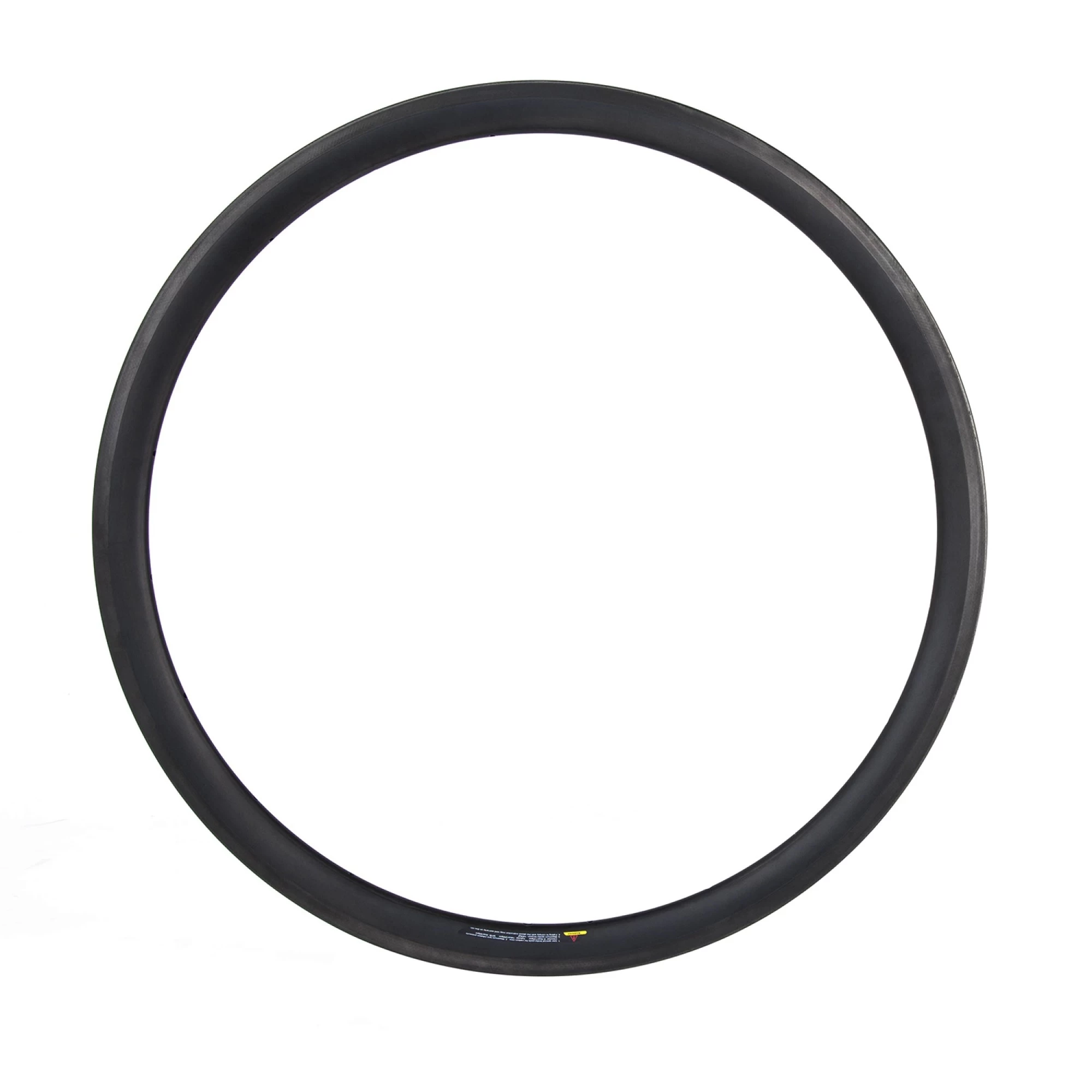

Filament wound series is the first choice and highest level, they are manufactured by filament winding machine and applied with self-developed yellow color high temp resin, the advanced manufacture tech and layup design make filament wound series more superior than other Chinese carbon rims. They have been offering to some famous riders and big brands in the world.
Product Specs
Material: Toray T700 (Imported from Japan / Korea)
Size: 700C

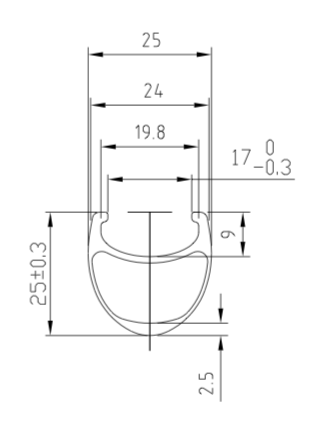

External Width: 25mm
Internal Width: 17mm
Depth: 25mm
Finish: UD Matt / UD Glossy (Customized with your logo artworks)
Spoke count: 16-32H
Nipple hole: External / Internal
Weight: 410g+/-15g
ERD: 590mm
Rider weight limit: 120KG
Max tire pressure: 125PSI
Max spoke tension: 140KGF
Flatness: ≤0.2mm
Roundness: ≤0.3mm
Highlights
- Patented filament winding process to ensure that each carbon fiber layer can be distributed evenly and bonded tightly, enabling its strength to reach a maximum value. Also machine managed process can avoid the random layup errors and result higher accuracy & precision.
- Patented self-developed 240 degree high temperature resin, tested by DMA / DSC in house.
- Carbon fiber pre-preg weaving in house, impregnating with own HTG resin system.
- Using hard mandrel to shape the rim bed, it stays very well under curing without movement, results a much more precise clincher hook. (While others use silicone or three-piece molds)
- X-Ray machine to inspect the inside layup structure to guarantee the strength from every aspect.
- First time 220 degree molding; Second time 230 degree baking 8 hours; Third time 230 degree baking 6 hours.
- Full inspection of tire pressure test at 140psi for every rim.
- Rim profile designed by American composite expert who use CFD work to optimize the aerodynamics.
- UCI / ISO test standard; Wind tunnel test in Arizona USA.
