Product Name
25W Attenuator (25W, DC-3GHz, N-M to N-F，3-40dB)
Product Features
◆ Wide Frequency Band DC-3GHz
◆ Low VSWR
◆Low Attenuation Accuracy
◆ Widely used for In-building Solutions
Technical &Mechanical Specifications
|
Model No.
|
MNA-3G-25-XX-N
|
MNA-3G-25-XX-N
|
MNA-3G-25-XX-N
|
MNA-3G-25-XX-N
|
|
Freq(GHz)
|
DC-3GHz
|
|
Attenuation(dB)
|
3-5
|
6-10
|
10-30
|
40
|
|
Accuracy(dB)
|
±0.5
|
±0.5
|
±1.5
|
±1.5
|
|
VSWR
|
≤1.25
|
|
Average
Power(W)
|
25
|
|
Impedance
|
50 ohm
|
|
Connector
|
N(M)-N(F)
|
|
Color
|
Black
|
|
Temp(deg)
|
-35~+65
|

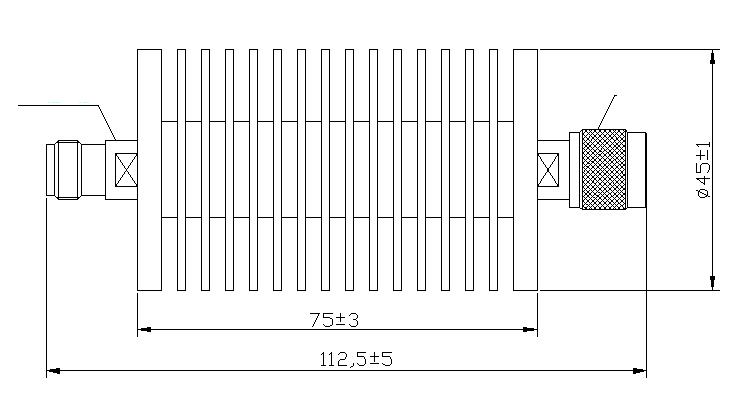

Mechanical Drawing
