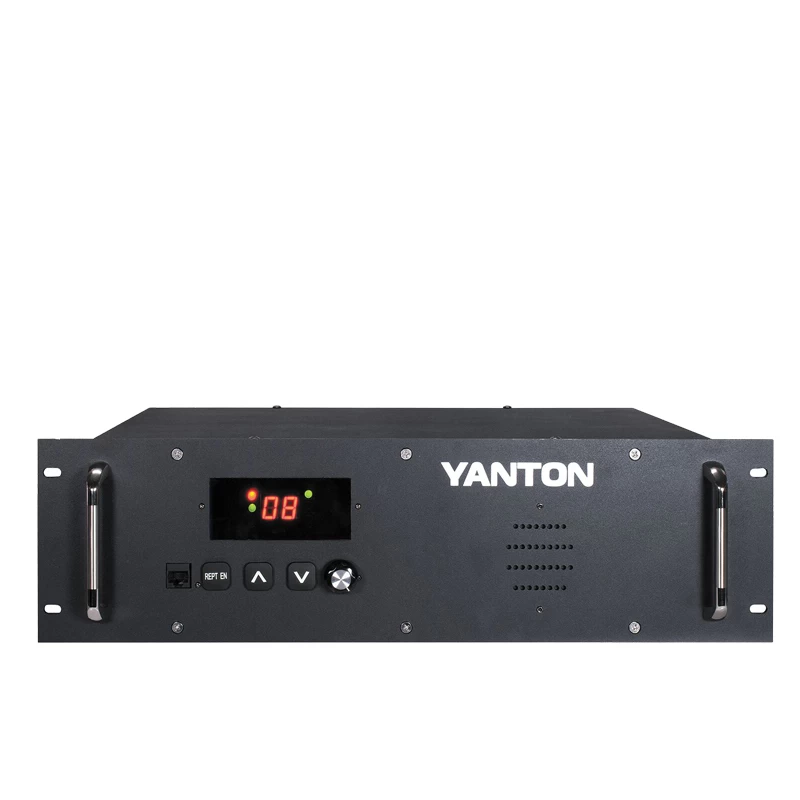

25W DMR 100 Channels Dual Mode Repeater
High Power DMR Two-Way Radio Repeater,DR-90000 is an cost-effective DMR repeater with great performance. Output power 23W, built in duplex and power power, compatible with analog and digital dual mode.
Quick Details
1.Two TDMA Technology 2 Slots
2.Intergrated Panel Fan & Heat Sink
3.LED Indicate
4.Analog And Digital Mode
5.Support For third-party Duplexer Built-in
6.Repeater Turn On/Off
Specification
|
GENERAL
|
|
Frequency
Range
|
136-174/400-480mhz
|
|
Operating
Temperature
|
(-20℃+60℃)
|
|
Operating
Temperature
|
(-20℃+60℃)
|
|
Frequency Stability
|
(-20 C +60 C+25C)+/-0.5PPM
|
|
Memory
Channel
|
100
|
|
Working
voltage
|
13.6V DC+/-20% AC 100-250v
50/60HZ
|
|
digital
protocol
|
ETSI-TS102 361-1,-2,-3
|
|
Operating
Mode
|
analog/digital
|
|
Dimensions
|
483*309*133mm
|
|
Weight
|
14.5KGS
|
|
TRANSMIT PART
|
|
RF
power
|
25W
|
|
channels
space
|
12.5khz/25khz
|
|
Intermodulation
|
(+-2.5khz @12.5khz/+-5.0khz @ 25khz)
|
|
Hum
and noise
|
(-40dB @12.5kHz/-45dB @25khz)
|
|
Spurious
respone
|
(-36dB<1Ghz/-30dBm>1GHZ)
|
|
RECEIVER PART
|
|
Sensitivity
|
(-20 C +60 C+25C)+/-0.5PPM
|
|
analog
sensitivity
|
0.3uV(12dB SINAD)
0.22u V/-120dBm
(Type)
|
|
digital
sensitivity
|
0.22uV/-120dBm
|
|
adjacent
channels selectivity
|
(60dB @2.5khz/70dB @25khz)
|
|
audio
distortion
|
<=3%
|
|
spurious
respone
|
(-57dBm<1GHz/-47dBm>1Ghz)
|
Service
Package: Each package in gift box; 20PCS in strong carton
Payment: Paypal, Western Union, T/T, LC
Lead time: Sample: 1-3 working days
Wholesales order: 500PCS within in 5-7 days
OEM order: 7-15 days after receiving your deposit and confirm sample package design.
Shipping
Express: door to door service DHL,UPS, FEDEX, TNT and so on.
By air: To destination airport, need to assist clear customs, without door to door service.
By sea: To destination port, need to assist clear customs, without door to door service.
The shipping cost depends on weight and dimension, will recommend the cheapest and safest way according your detail quantity.
Shipping period depend on your location. If deliver by express, it take 3-7 days from China to destination country. Some remote need more 1-3 days.
