Product Name:
25W RF Dummy Load/Termination with a high index specifications,including low VSWR,low Insertion Loss and so on... this Dummy Load combined with N-F connector so the average power pass with 25W.
Product Feature:
♦Wide Frequency Band
♦Low Insertion Loss
♦Low VSWR
♦Low Intermodulation
♦Widely used in IBS &DAS
♦Guaranteed one year standard
Electronic and Technology Specifications:
|
Model No.
|
MNL-DC-3G-N-DIN-SMA
|
Frequency Band (MHz)
|
DC-3GHz
|
Return Loss
|
20dB
|
Split Loss(dB)
|
6.0
|
Insertion Loss(dB)
|
≤0.5
|
VSWR
|
≤1.20
|
Average Power(W)
|
25W
|
Impedance(ohm)
|
50
|
RF Connector
|
N or DIN or SMA
|
Working Temperature
|
-55~+80
|

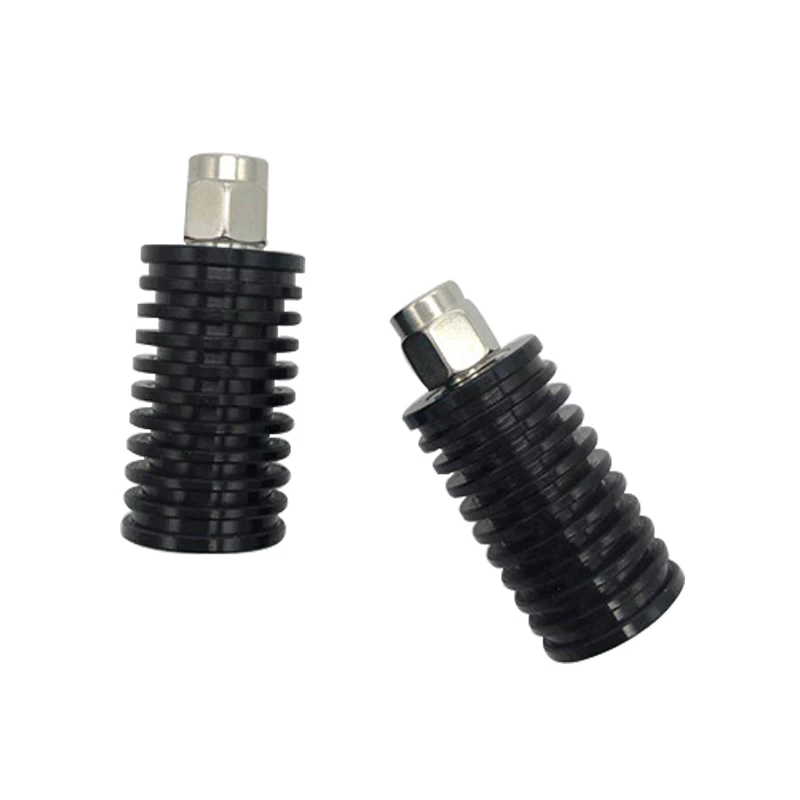

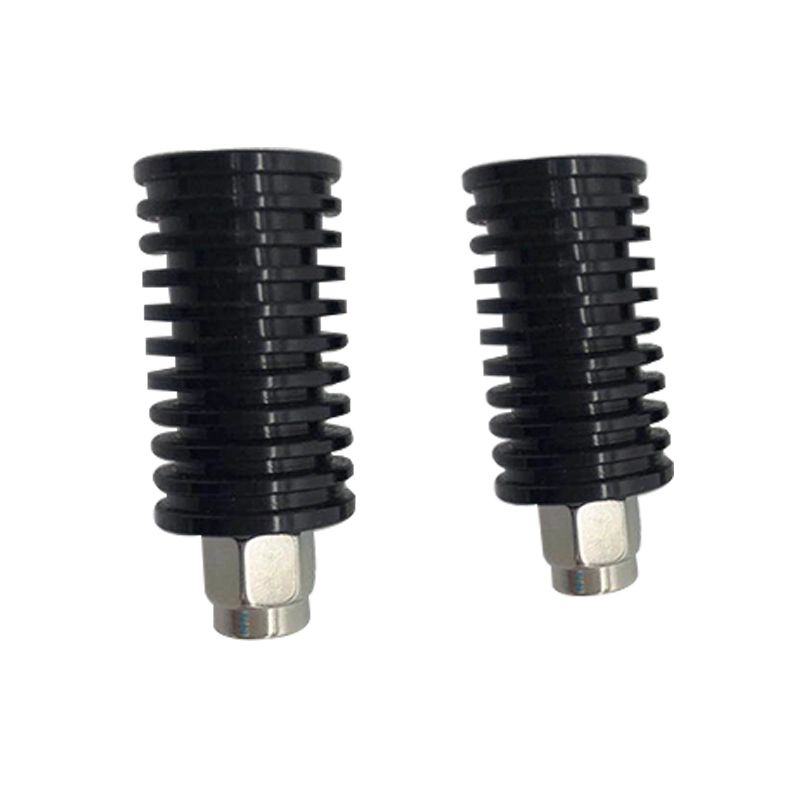

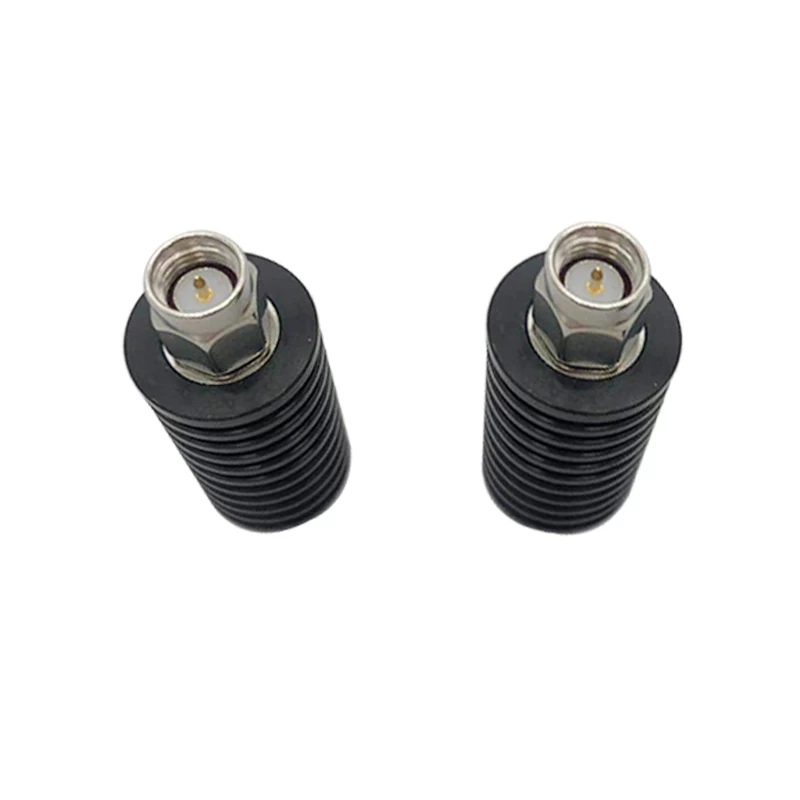

Detailed Image:
