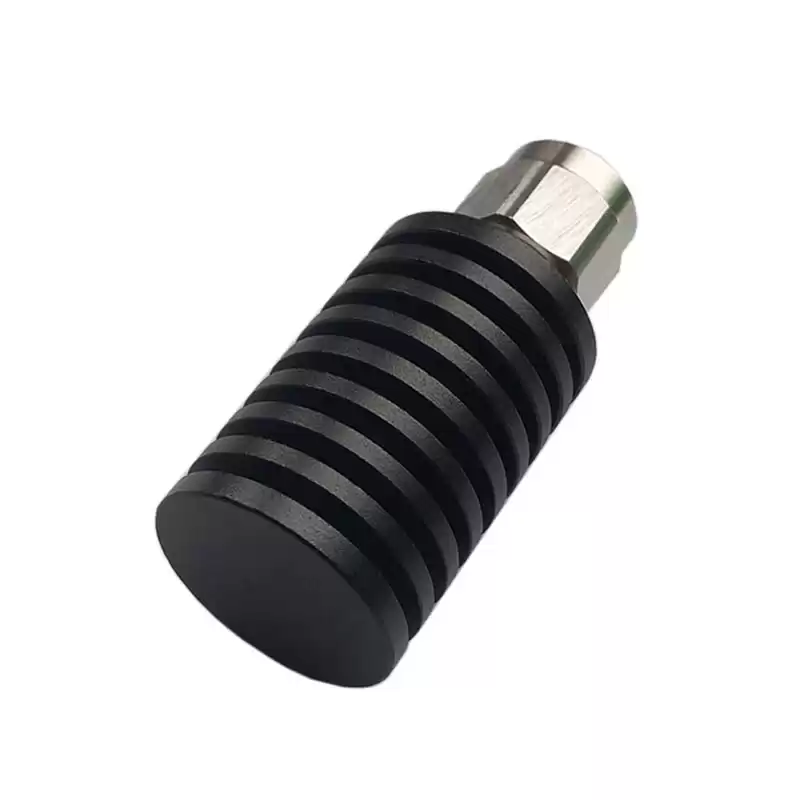

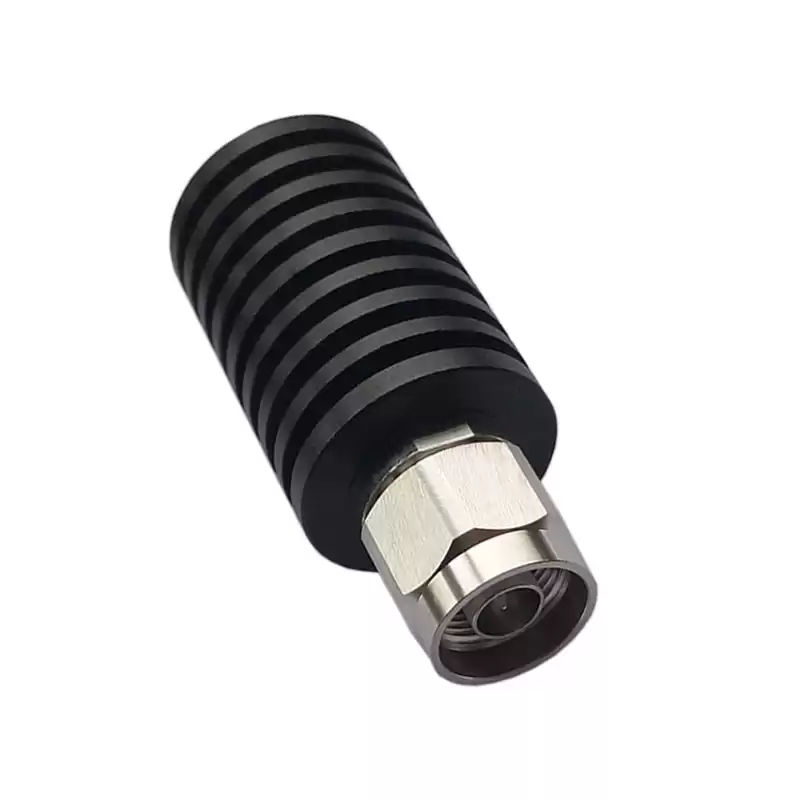

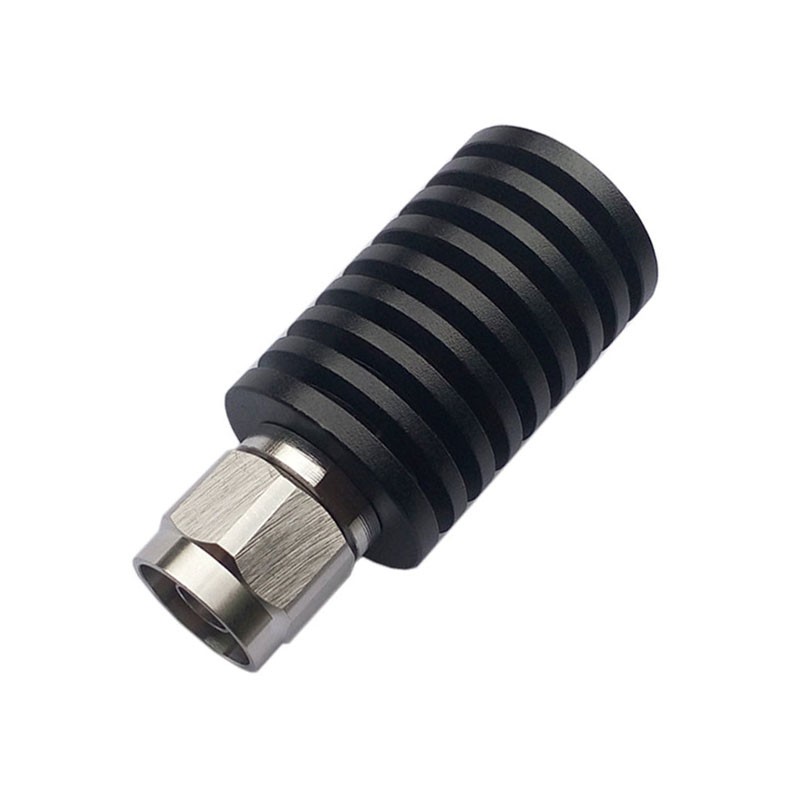

25W N Type Male Connector Coaxial Dummy Load Terminator DC-3GHz RF Termination
The 25W N dummy load (also known as 25W N termination or 25W N RF load) has a type N connector that is male. This 25W type N male load / termination is rated for a maximum frequency of 3GHz. ROHO's N type male termination load is a rf load termination with a 50ohm impedance; This type N load / coax terminator has an average maximum VSWR of 1.2:1. The 25W N type male load termination is one of RF, microwave and millimeter wave components, ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized.
Specifications
| ELECTRICAL DATA |
|
| Frequency |
DC~3GHz |
| Connector |
N Male |
| VSWR |
≤1.2 |
| Power |
25W |
| Impedance |
50Ω |
| Temperature Range |
-55℃～+125℃ |
| MATERIAL DATA |
|
| Connector body |
Brass,Plating Ni |
| Insulator |
PTFE |
| Inner Conductor |
Phosphor Bronze ,Plating Au |
| Housing |
Aluminum,Black |
Applications
- Measurement systems
- Multi-port microwave device
- Directional couplers
- Isolators
