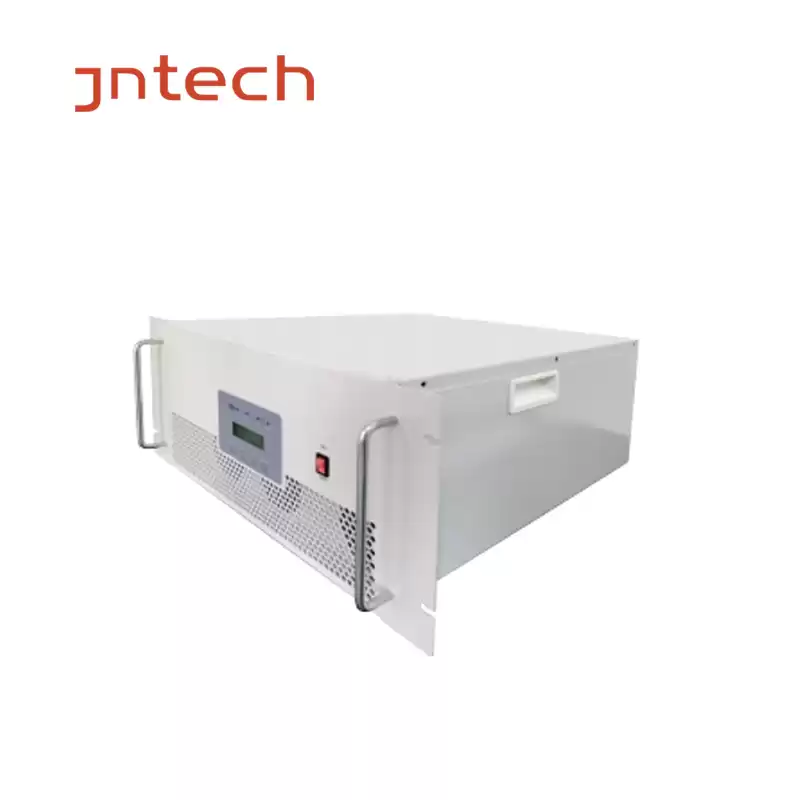

26-43kW Solar Battery Charger High Voltage

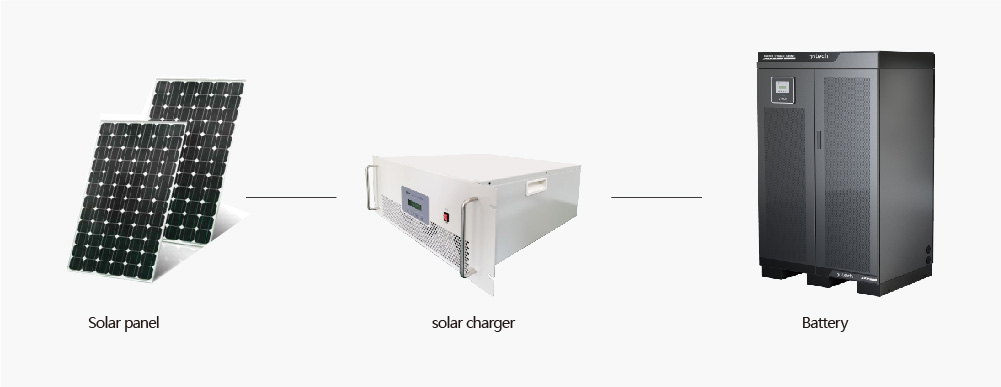

The MPPT control algorithm utilized in the solar charger optimizes real-time solar panel energy output and allows for customizable battery parameters. The controller can charge the battery independently and can also be integrated with an energy storage system. Additionally, it offers remote control and parallel operation via external communication.
Features:
- The high voltage solar charger Advanced MPPT tracking algorithm with over 99% efficiency.
- Using IGBT as electronic switch and highefficiency mute magnetic components, high efficiency, fast response, low noise.
- LCD display shows a variety of electric alparameters and can be used to customize battery parameters.
- Long-lasting design featuring IP65 protection level,suitable for complex outdoor operating environments.
- In addition to charging the battery, it can also power DC loads like heaters and resistive loads.
- Ultra-wide input voltage range and designed for high voltage output.
- Charge and discharge management can be controlled by RS485 and CAN controllers.
| Model |
JNC26KH-V1 |
JNC43KH-V1 |
| PV Input |
| Max. input voltage |
1000Vdc |
| Max. charging power |
26KW |
43KW |
| MPPT voltage range |
350VDC~950VDC |
550VDC~950VDC |
| Battery |
| Rated voltage |
230DC |
384DC |
| Max.charge current |
100A |
| Max.charge efficiency |
≥90% |
| Mechanical data |
| Dimension(W/H/D)(mm) |
482*222*491mm |
| Weight |
28Kg |
| Other |
| Protecition level |
IP21 |
| Audible Noise |
<60dB |
| Cooling method |
Forced cooling |
| Operating temp. |
-20~+55β |
| Storage temp. |
-25~+70β |
| Status indicator |
LCD/LED |
| Elevation |
2000m(>2000m derates operation) |
| Standard |
CE; lEC 62109-1; lEC 62109-2 |
