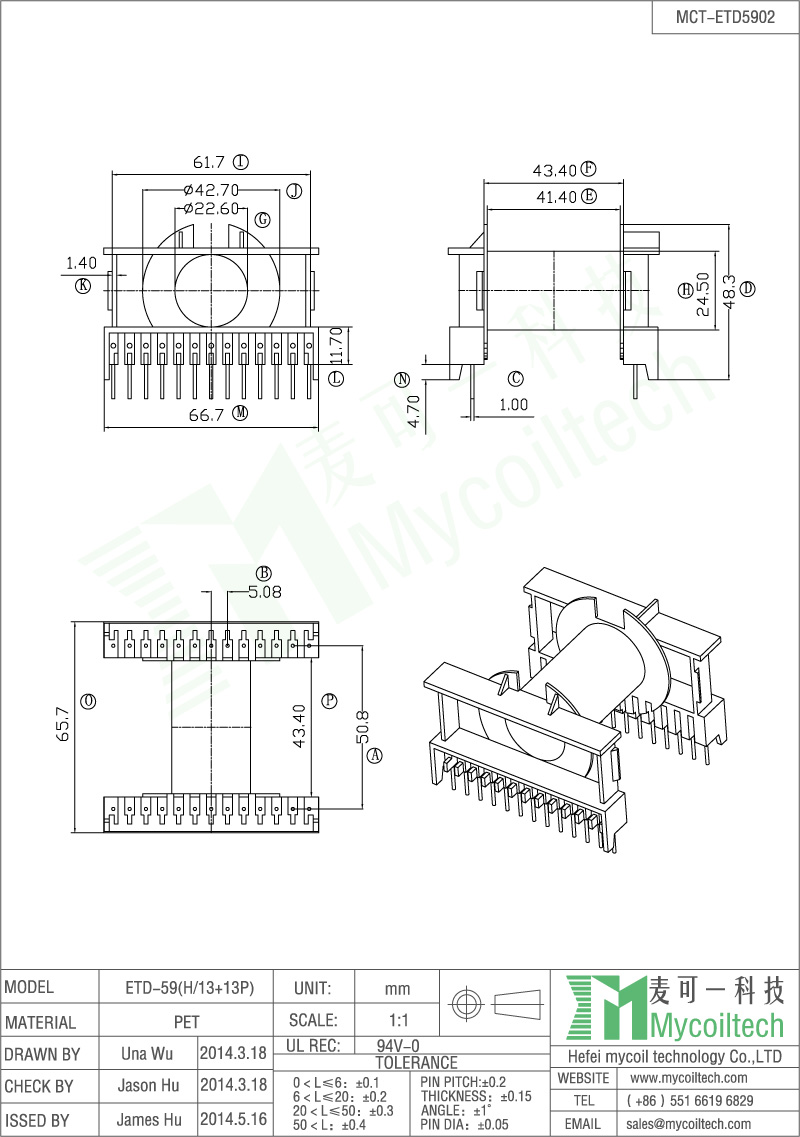

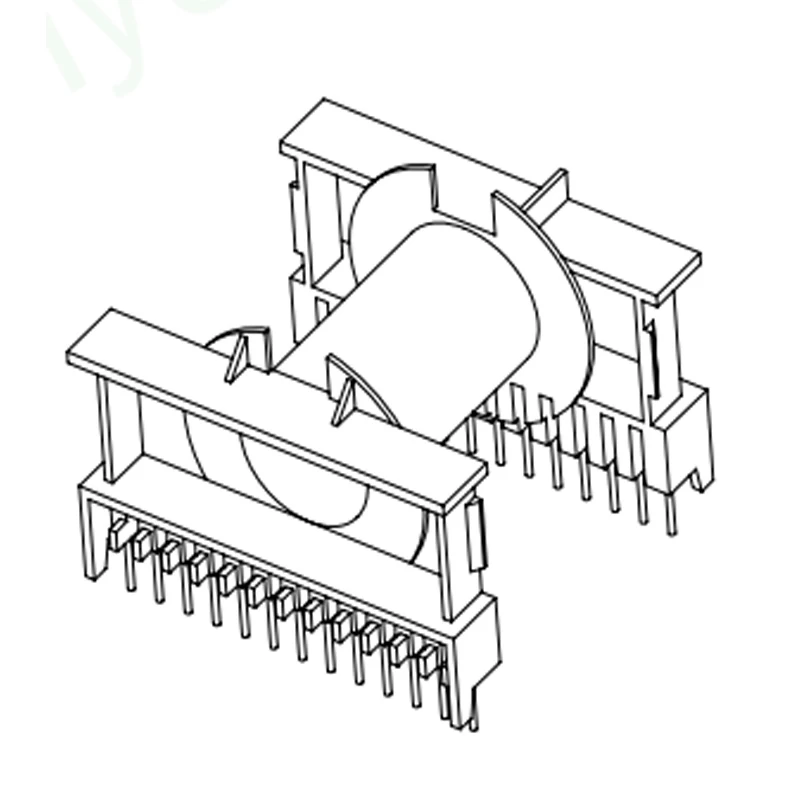

26 Pins Horizontal ETD59 Coil Former for High Voltage Transformer

13+13 pins ETD59 coil former(transformer bobbin). DIP bobbin.

Parallel Distance=50.8mm. Pin Pitch=5.08mm. UL REC:94V-0

Bobbin Size=66.8mmX67mmX48.35mm. Accept make bobbin tooling.



Professional transformer bobbin factory. Good price and high quality ETD59 transformer bobbin(coil former), 13+13 pins horizontal winding bobbin. We have well-equipped facilities and excellent product quality control throughout production. Any request, welcome to contact us.


Quick Details

Part Number: MCT-ETD5902(H13+13P)

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: 26 Pins Horizontal ETD59 Coil Former for High Voltage Transformer

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu



Product Specification

 High Voltage Transformer Bobbin 13+13 Pins ETD59 Bobbin
