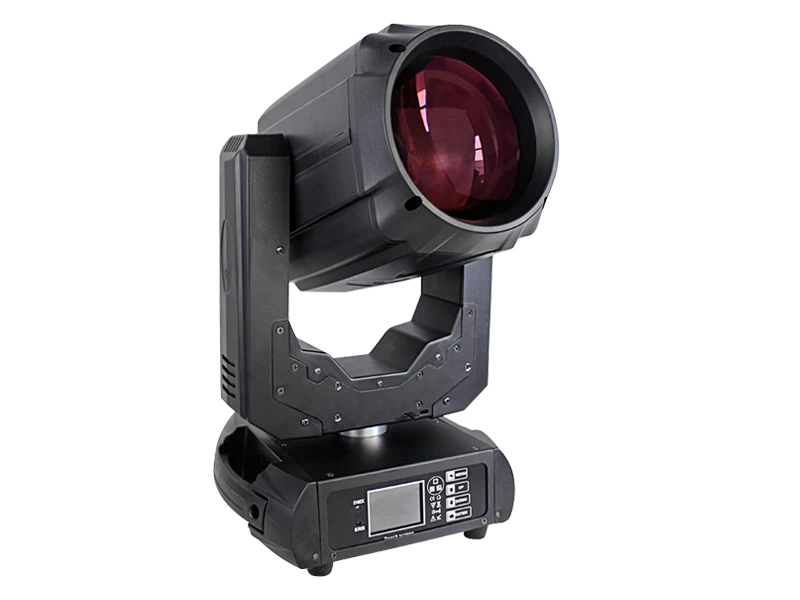

Specification


LIGHT SOURCE

Lamp: YODN  MSD  260W

CT: 7500 K

Lifespan: 1,500H



OPTICS

Beam angle: 2.6°

High precision glass optic system

Improved optics and flat beam field



COLORS

1 Color wheel: 13 color+open

Half-color effect, linear color change, bidirectional rotating rainbow effect



GOBOS

1 Static gobo wheel: 13 gobos(3 glass gobo)+open, shakable and bi-directionally rotatable at variable speeds



MOVEMENT
Pan movement: 540° optional (16 bit )

Tilt movement: 270°(16 bit )
Advanced moving system: auto repositioning, fast, quiet and smooth



FEATURES

2 Prisms: 8-facet prism+honeycomb prism, bi-directionally rotatable at variable speeds

1 pcs 7-color glass filter

Frost: 1 frost filter, soft and natural wash effect

Strobe: mechanical shutter , variable from 1-13Hz or random
Dimming: mechanical dimmer 0-100% linearly adjustable

Focus: motorized linear focus



DISPLAY

2.8 inch full color touch LCD screen

15 second standby auto lock



SOFTWARE

Control mode: DMX512, master-slave, auto-run

Channel: 16CH

Run time of lamp and fixture record



OTHER SPEC

Fixture and lamp usage time display

Highly positioning precision

Auto thermal protection circuit

Housing: high temperature UV resistant ABS



POWER
Voltage: AC100-240V, 50/60Hz

Power Consumption: 400W@220V

DIMENSIONS AND WEIGHT

Fixture dimension: 35*27*55cm

Packing dimension:

45x37x58cm(Carton)

80x60x65m(2 in 1 flightcase)

Net Weight: 15kg

Gross Weight:

19kg(Carton)

                           55kg(2 in 1 flightcase)
