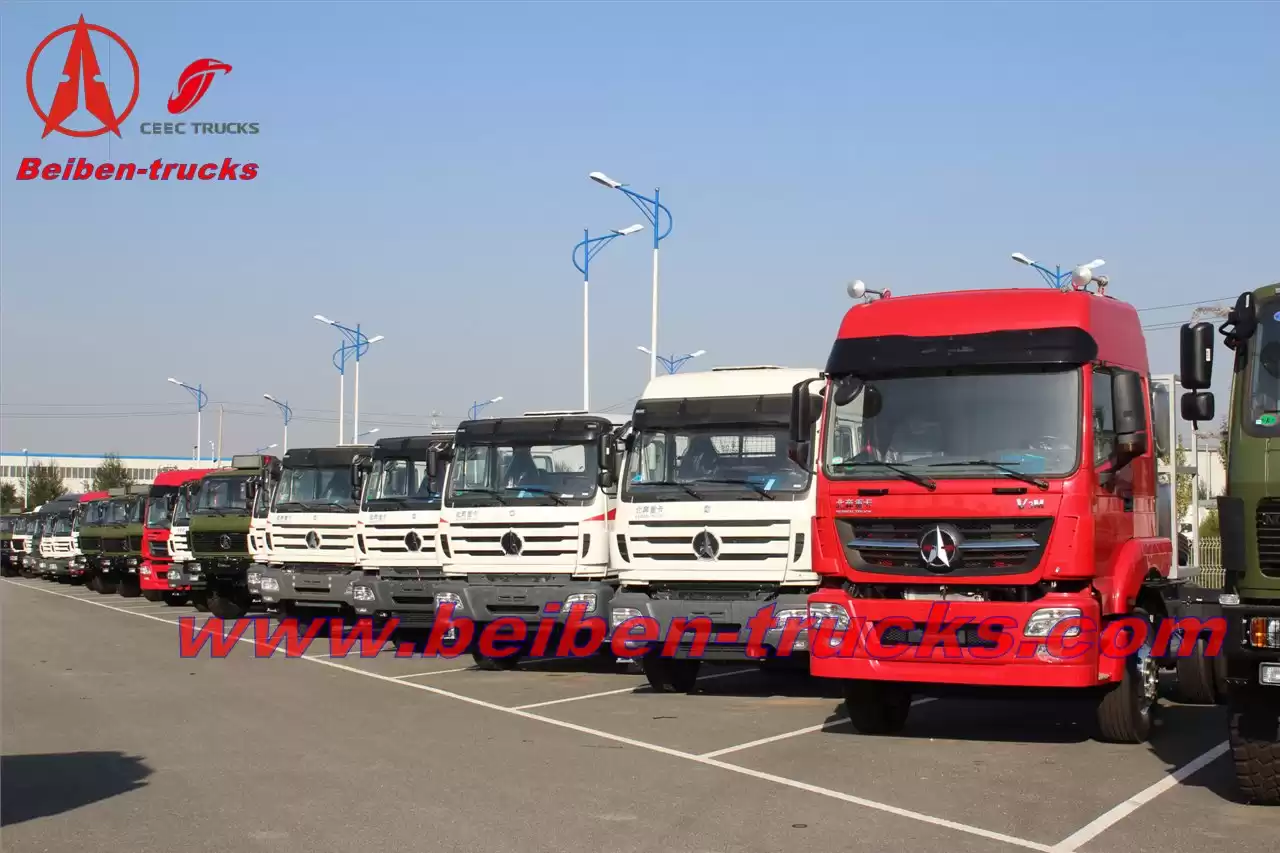

2638KY Beiben Tractor Truck

Traction type

6x4

Driving type

LHD

Cabin

MAN cab, high roof, double sleepers (A/C is optional)

Engine

Brand

Weichai Steyr        EURO II

Model

WD12.420

Type

Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & intercooling

Displacement

11.596 liters

Max. output

420hp@2200rpm

Max torque

1750NM@1300-1600rpm

Bore/Stroke(mm)

126/155

Mean Position Speed

9.53m /s

Compression ratio

15.5:1

Specific fuel consumption

198g /Kwh

Gearbox

Brand

FAST (FULLER technology)

Model

12JS180T  manual operation

Rated input power

331KW

Rated input torque

1800N.m

Max. Input rotation Speed

2600rpm

Ratio of 12JS180T

Lower speed ratio

Higher speed ratio

Reverse

1

2

3

4

5

6

7

8

9

10

11

12

R1

R2

15.53

12.08

9.39

7.33

5.73

4.46

3.48

2.71

2.10

1.64

1.28

1.00

14.86

3.33

Axles

Front axle

MAN tech 7.5 tons drum brake axle

Drive axle

Steyr 13 tons strengthened axle (punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock)

Other technical data

Clutch

Φ430 diaphragm single disc type

Steering

ZF technology

Frame

300mmx80mmx 8mm (inner: 275mm*70mm*5 mm )

Tyre

12.00-20 (rim: 8.5-20) bias tire

Spring suspension

10/12

Fuel consumption

38L/ 100km

Fuel tank capacity

380

Max. speed (km/h)

92

Max. Gradeability(°)

28

Kerb. mass

9050 kg

Total mass

25000kg

Wheel base (mm)

2925+1350

Front/rear overhang

1525/845

Approach/departure angle

18/66°

Dimension(mm)

6645x2495x3750

5th wheel

3.5" (90mm)
