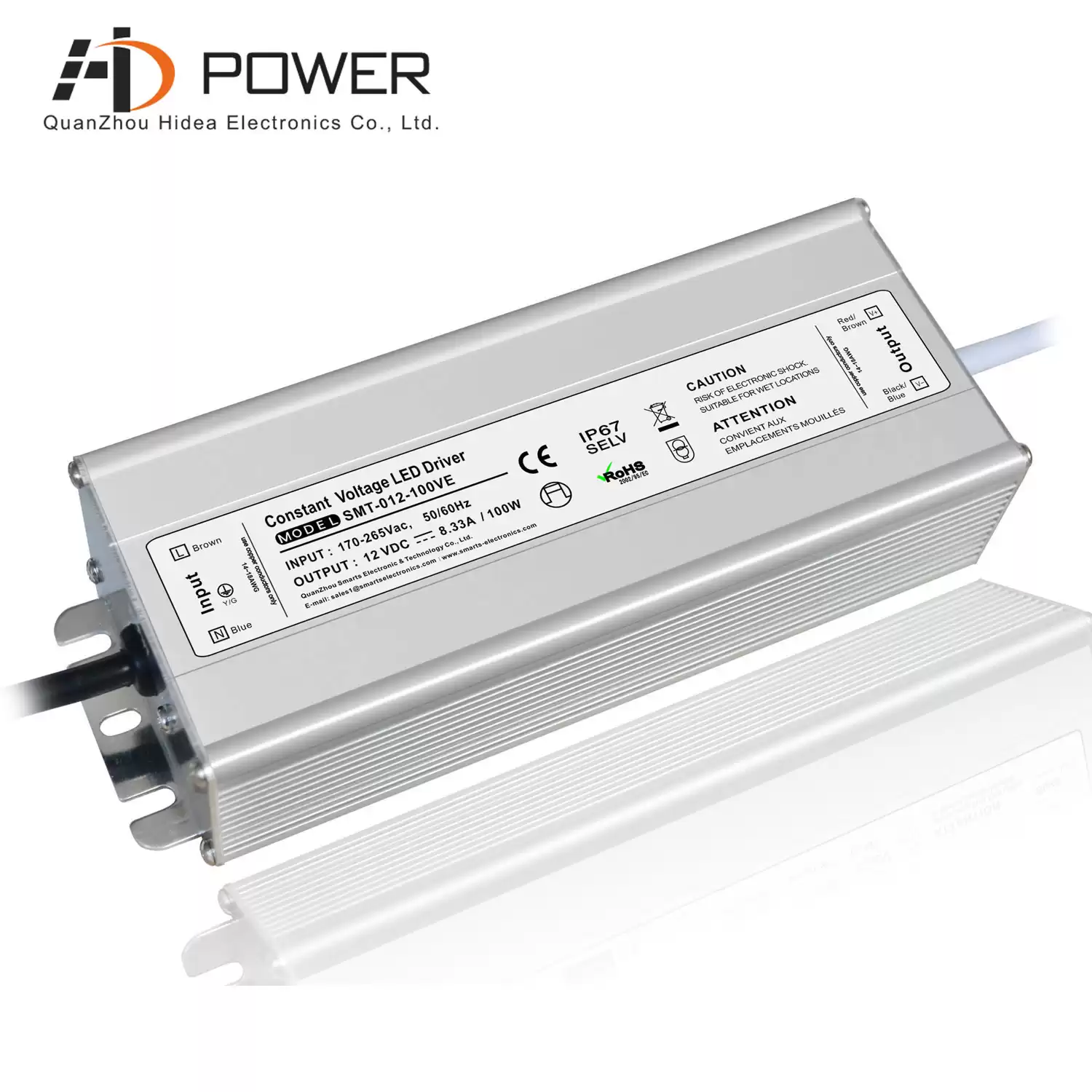

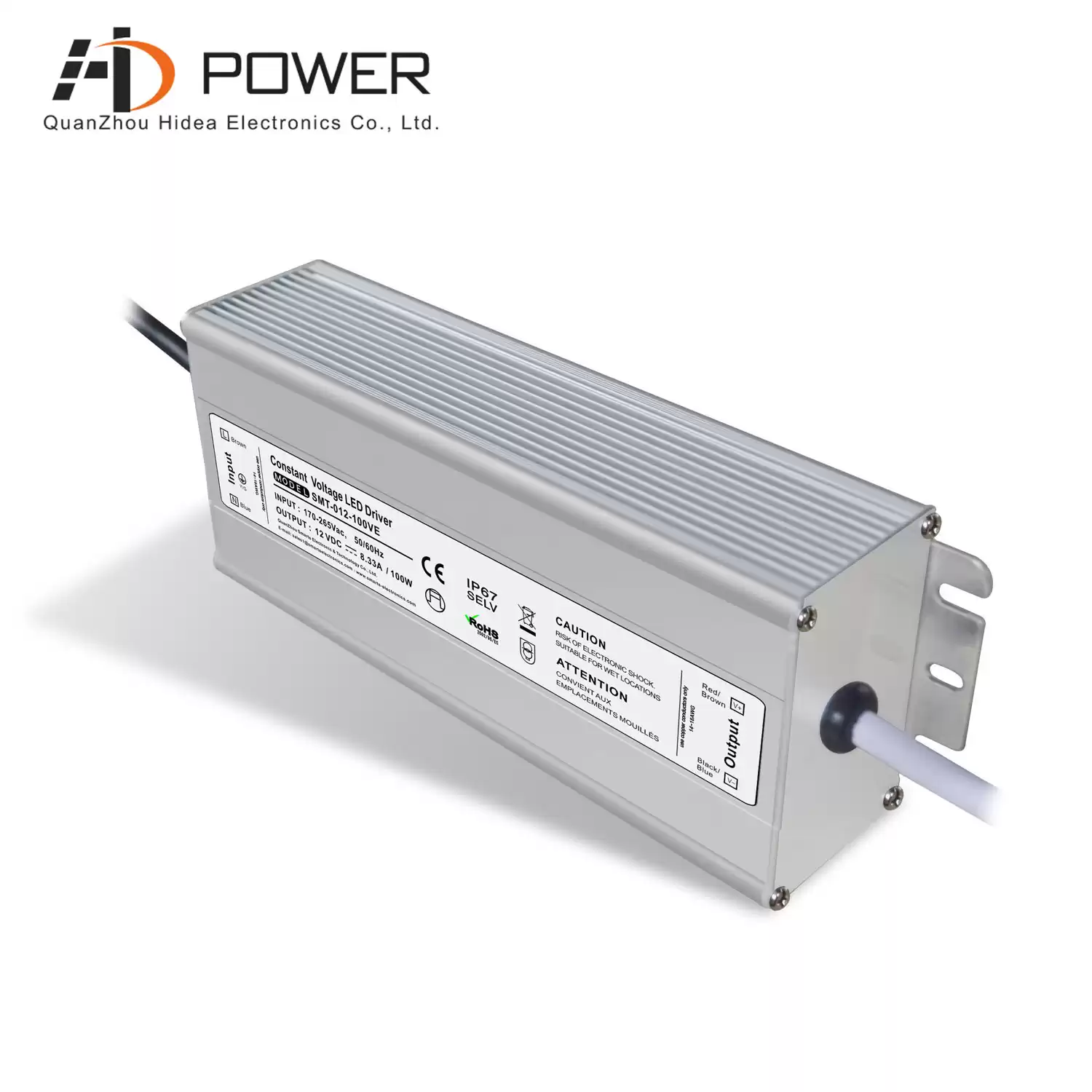

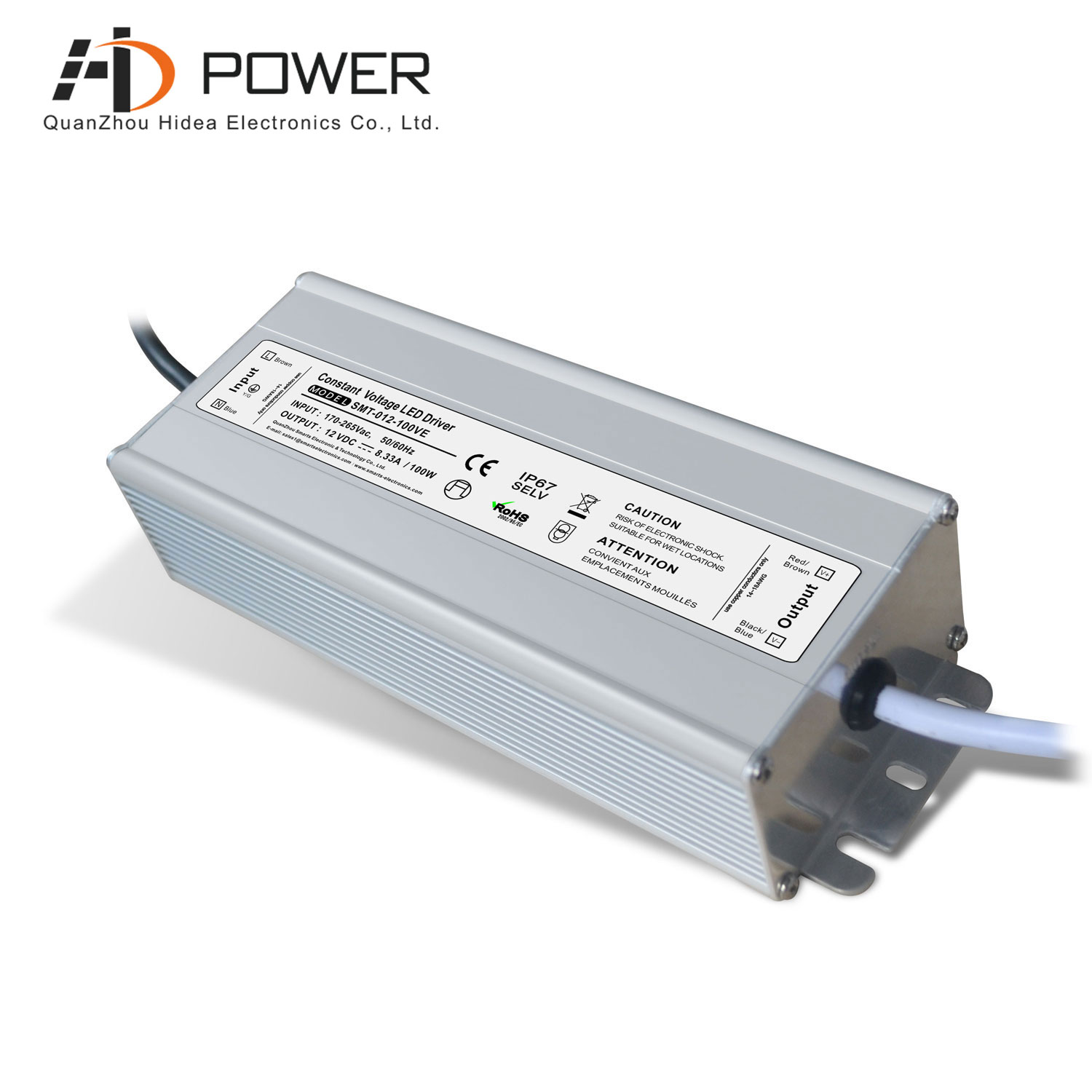

265vac to 12/24vdc constant voltage 100W waterproof electronic led driver ip67
CE Listed Waterproof Consatnt Voltage 12V 100W 8.33A Efficience> 85% aluminum shell is fast, which can effectively waterproof and dustproof
Specification
|
MODEL
|
SMT-012-100VE
|
SMT-024-096VE
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
8.33A
|
4.0A
|
|
CURRENT RANGE
|
0-8.33A
|
0-4.0A
|
|
RATED POWER
|
100W
|
96W
|
|
RIPPLE&NOISE(max)
|
<400mV
|
|
VOLTAGE TOLERANCE
|
±0.5V
|
|
INPUT
|
VOLTAGE RANGE
|
190-265VAC
|
|
FREQUENCY RANGE
|
47-63Hz
|
|
POWER FACTOR(Typ.)
|
no PFC
|
|
EFFICIENCY(Typ.)
|
》85%
|
|
AC CURRENT(Typ.)
|
0.88A/220VAC
|
|
PROTECTION
|
Short circuit
|
Hiccpe mode,recovers automatically after condition is removed
|
|
Overload
|
11A
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-30~+50℃ (Refer to output load derating curve)
|
|
INGRESS PROTECTION
|
IP67 design for indoor or outdoor installations
|
|
STORAGE TEMP
|
-40~+80℃
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
EN61347-1;EN61347-2-13;SELV;IP67 approved
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
|
|
EMC Test Standards
|
|
|
NOTE
|
1.All parameters NOT specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature.
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
|
|
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|

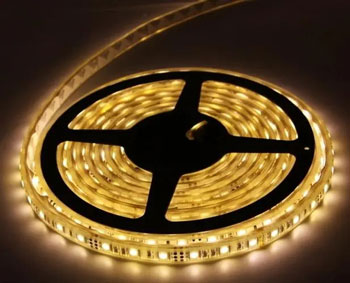

Compatible Low Voltage Device Type

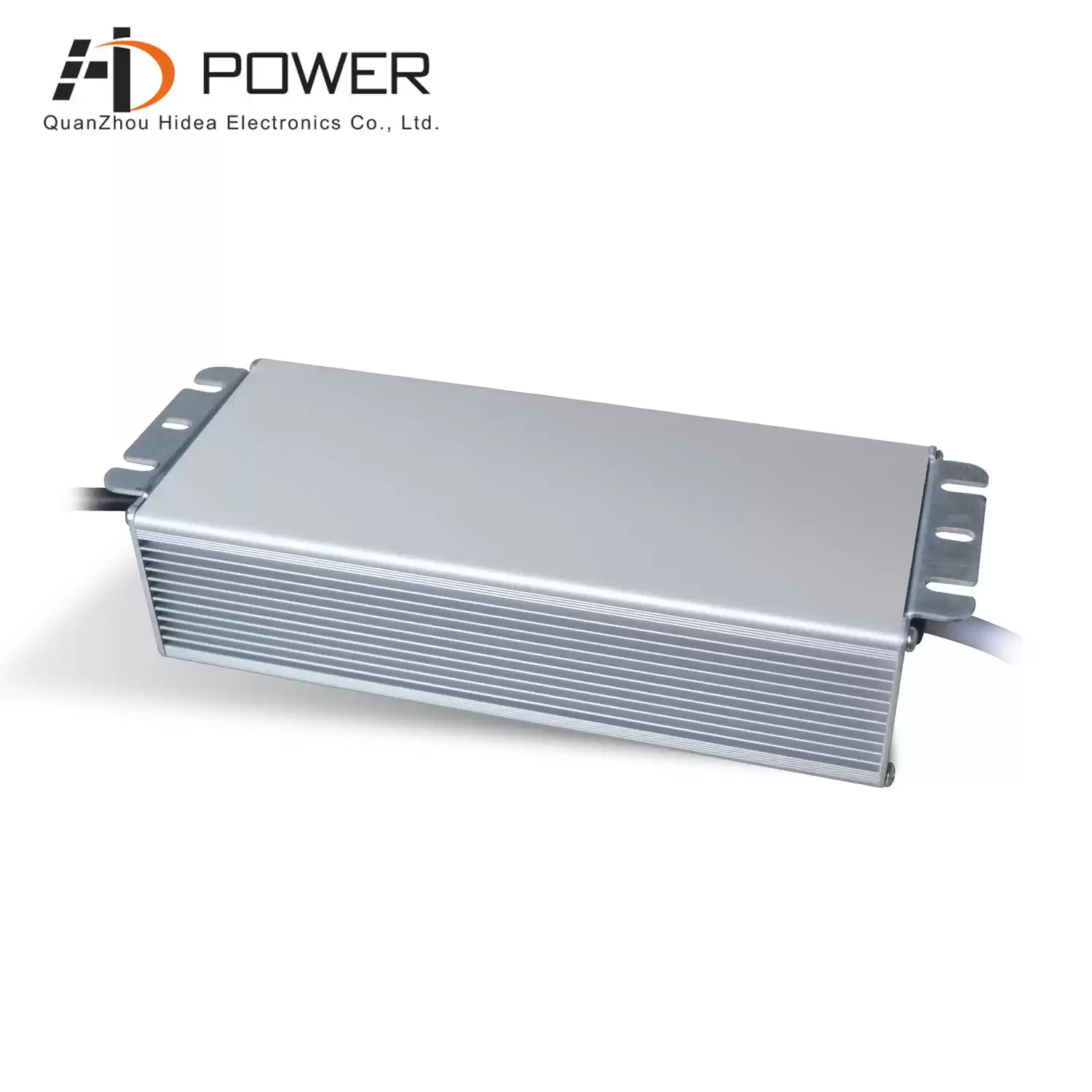

12V 100W Waterproof LED driver size is 162*56*30mm, and the body of the body of the body is convenient and safe
