26mm wide 38mm carbon road disc asymmetric tubeless wheelset (SC-26WHD38AC)



Rims

Material: Toray T700

Size: 700C

Type: Without brake surface for disc brake

Outer Width: 26mm

Inner Width: 19mm

Depth: 38mm

Offset: 2.6mm

Weave: UD / 3K / 12K

Finish: Matt / Glossy

Spoke count: 16-32H

Nipple hole: External / Internal

Weight: 1560g+/-20g

Rider weight limit: 120KG

Max spoke tension: 140KGF

Max tire pressure: 120PSI

Flatness: ≤0.2mm

Roundness: ≤0.3mm

Hubs (center lock / 12mm TA)

Powerway CT11 / CT31

DT350s

DT240s

Spokes

Pillar PSR AERO 1423

Sapim CX-RAY

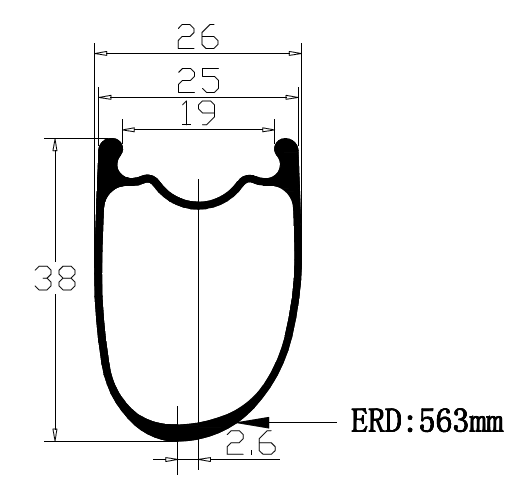

Cross Section
