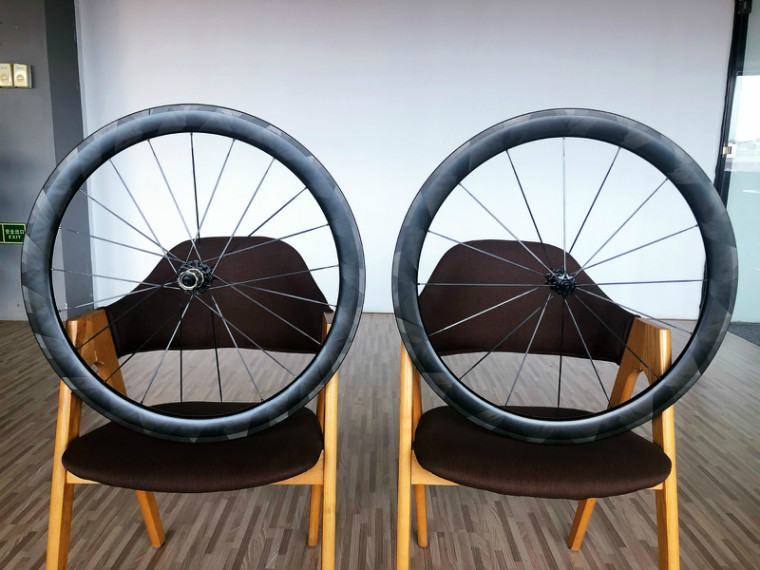

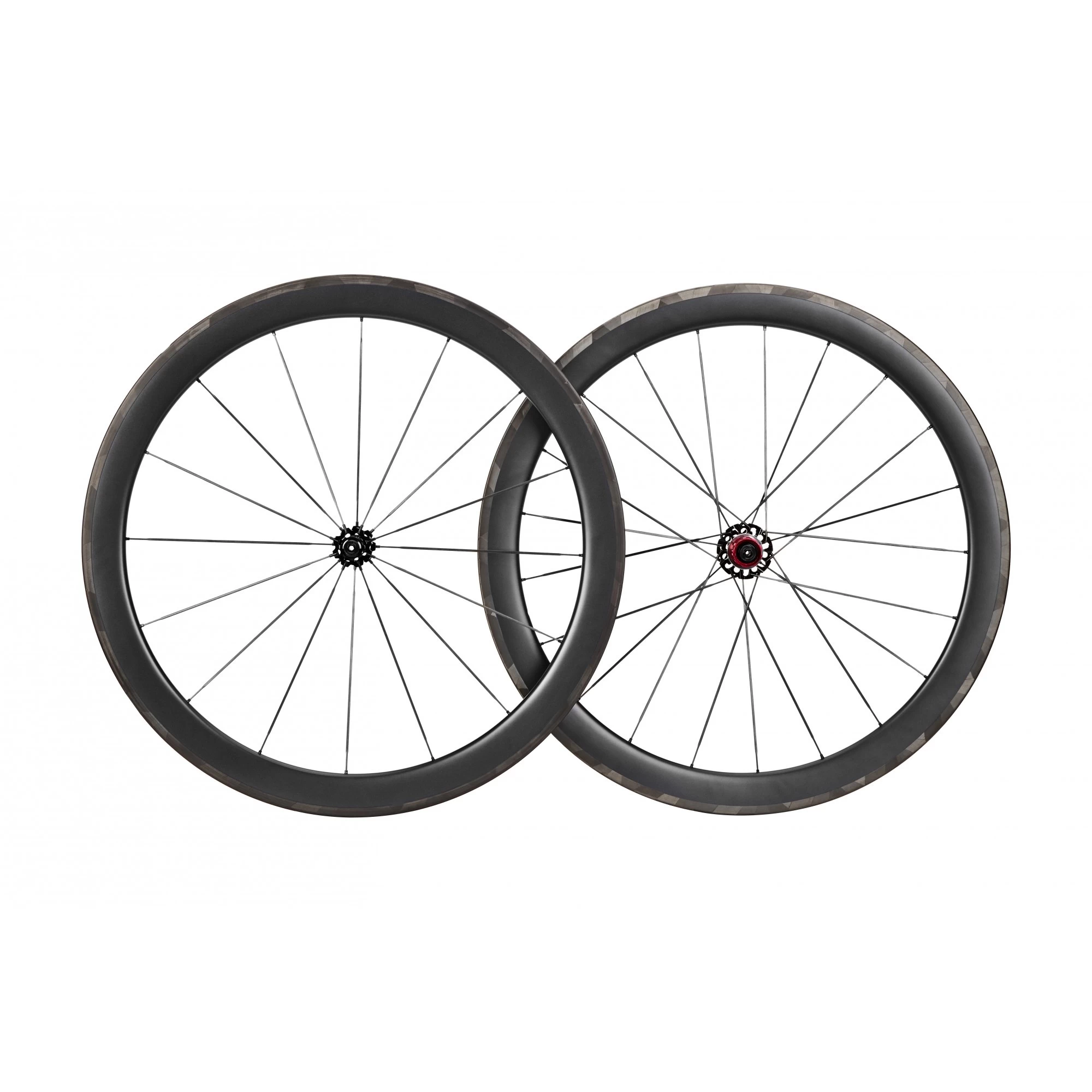

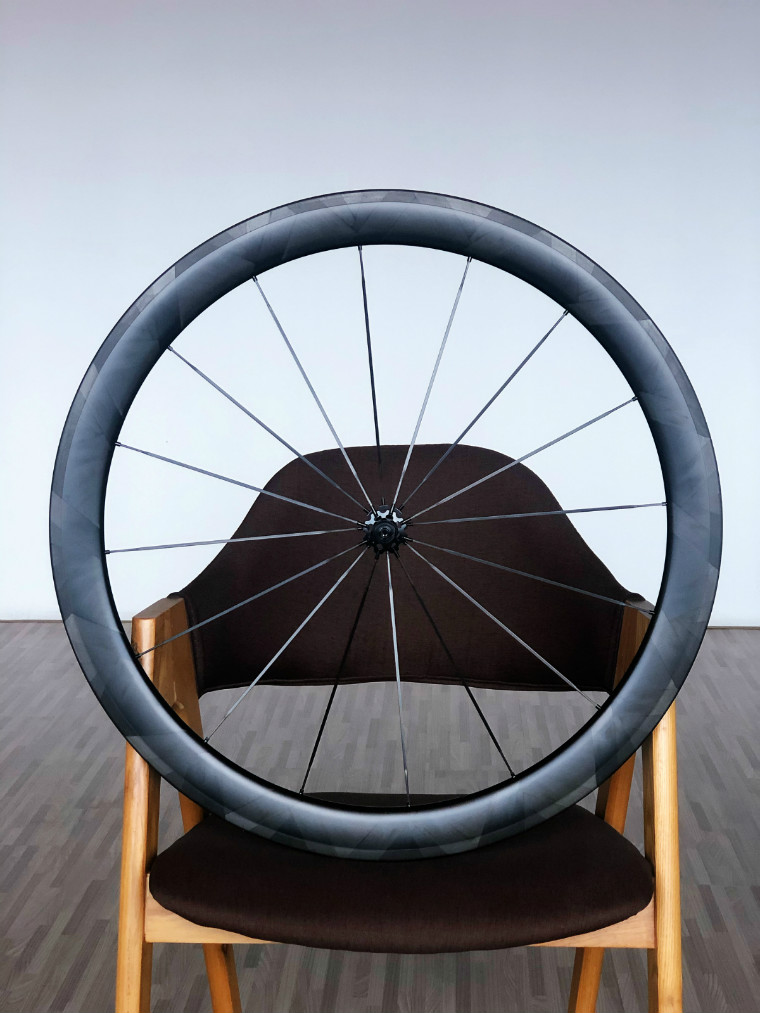

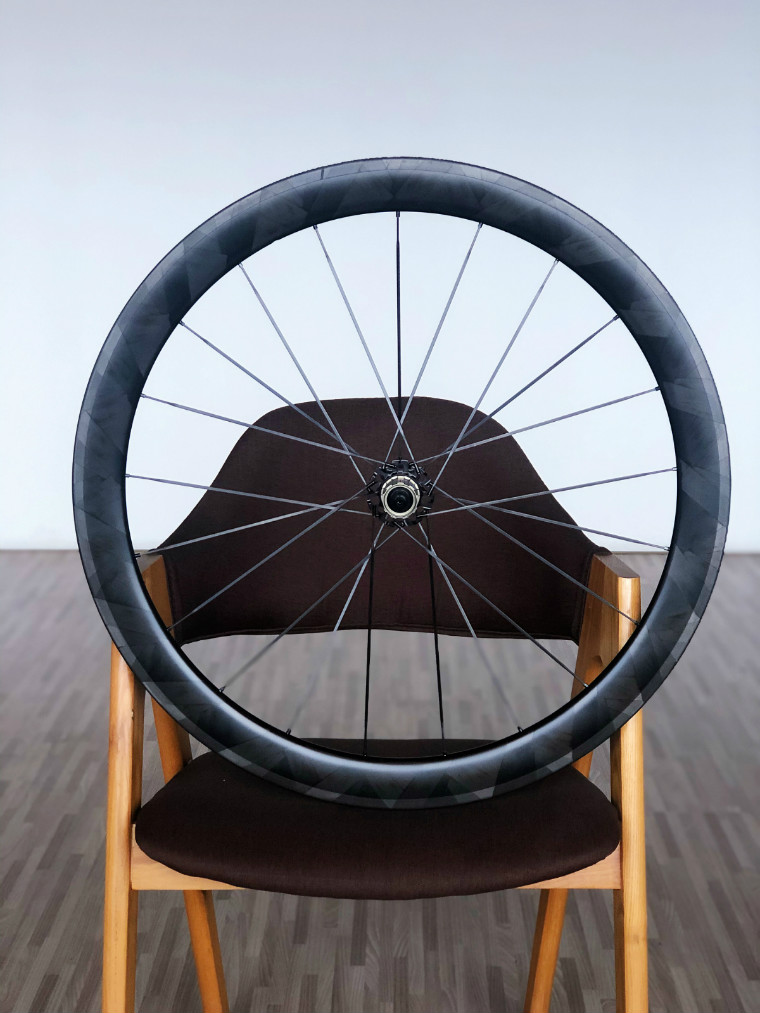

26mm wide 38mm carbon spoked road clincher & tubeless wheelset (SC-26WH38TL-CSW)



The Speeder carbon spoked wheelset features a totally new patented process for attaching carbon aero spokes, that along with a super light pattern filament wound carbon rim make this an exciting new super light all-carbon wheelset.

Rims: Filament winding offers precise and repeatable carbon construction, without the variability associated with hand layup, it results in a more consistent layup that allows a low proportion of resin to be used, reducing weight for the same strength.

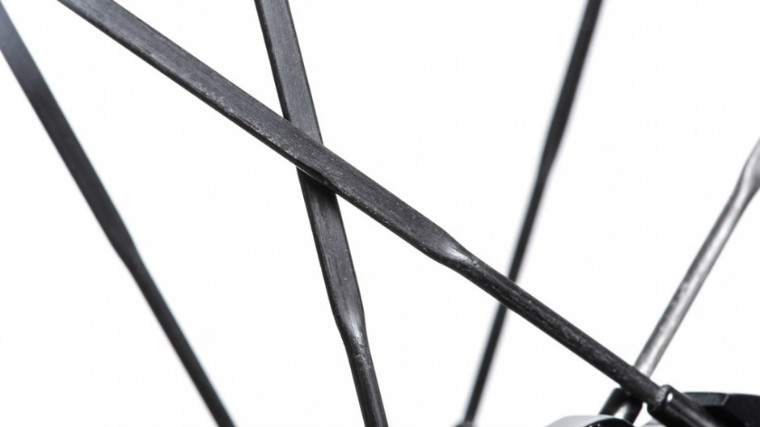

Spokes: The carbon spokes provide both higher stiffness and better fatigue life in comparison to traditional steel spokes, also, it weighs 3.2g per only including nipple, which is 1.35g lighter than Sapim CX-Ray.

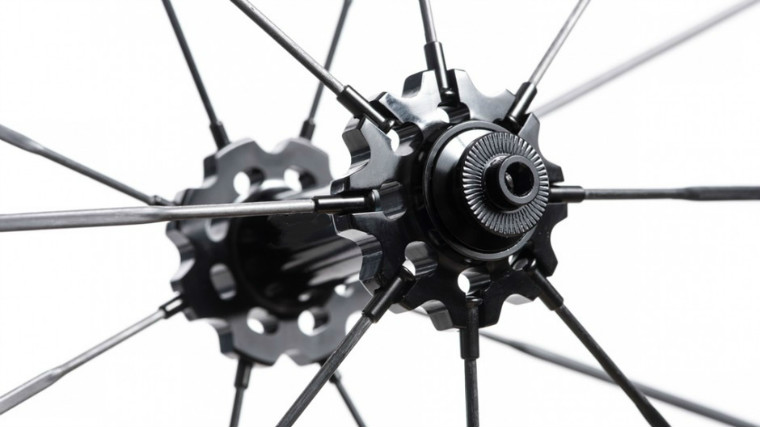

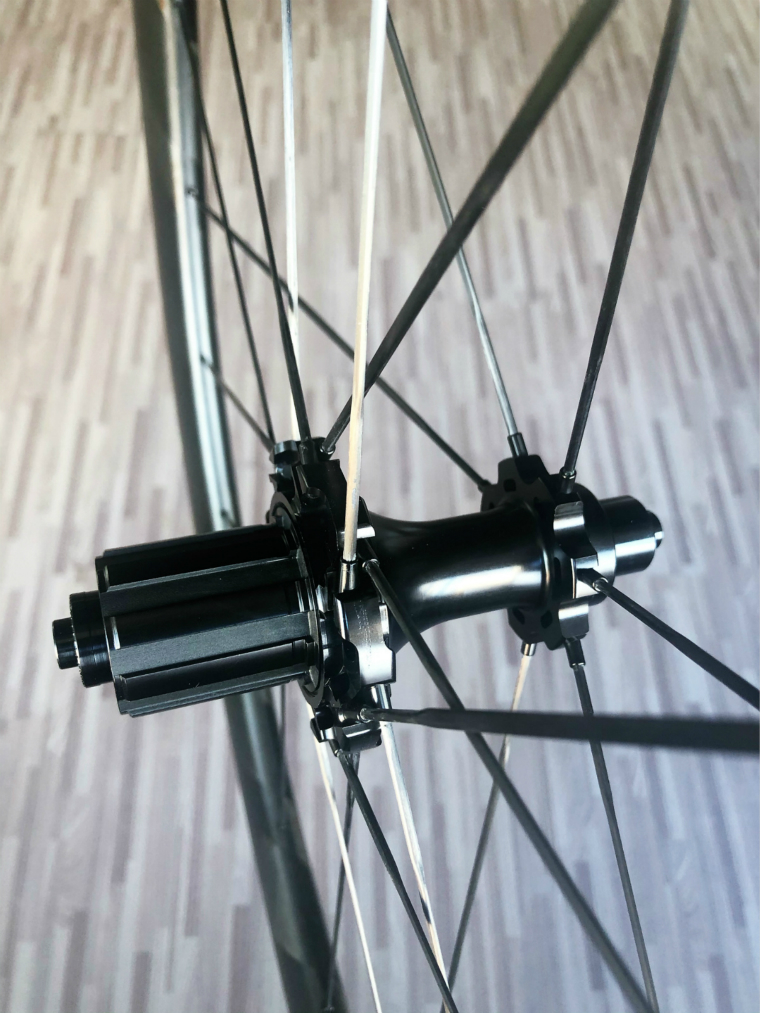

Hubs: Purpose-designed straight pull road hubs to match carbon spokes, with lower drag and loss-free power transmission.



Material: Toray T700 (Imported from Japan / Korea)

Size: 700C

External Width: 26mm

Internal Width: 19mm

Depth: 38mm

Weave: Unique pattern surface

Finish: Matt / Glossy (Customized with your logos)

Spoke count: 16/21H

Hubs: Speeder GTR

Spokes: Carbon aero spokes (3g)

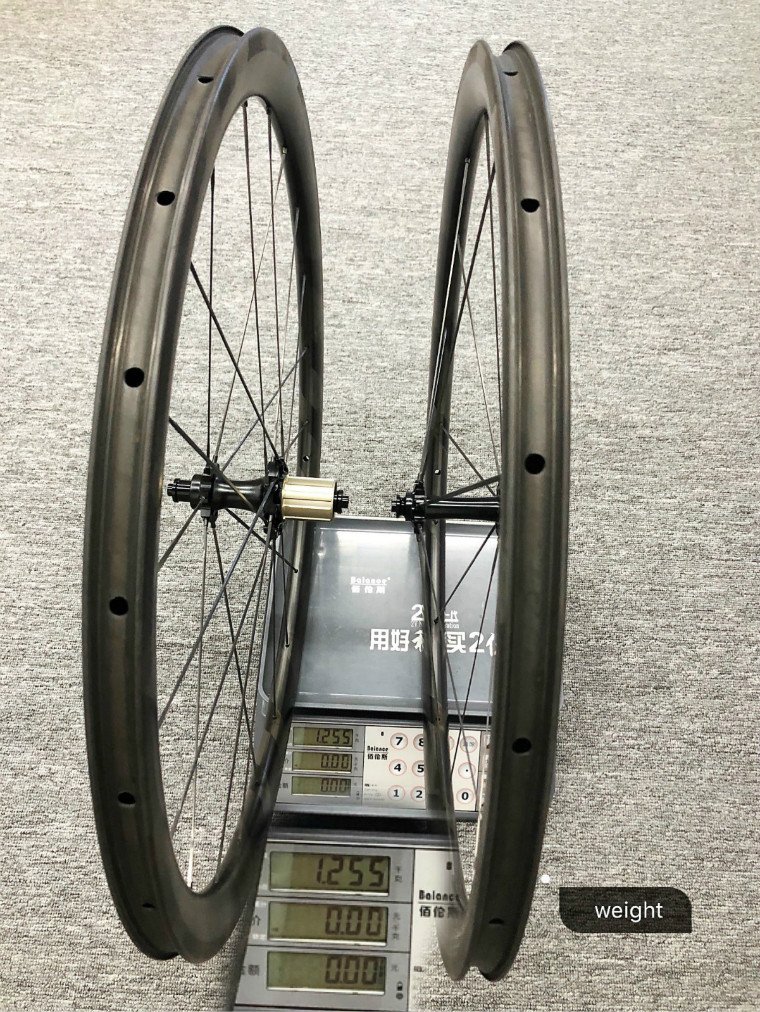

Weight: 1280g+/-30g

Rider weight limit: 120KG

Max tire pressure: 125PSI

Max spoke tension: 140KGF

Flatness: ≤0.2mm

Roundness: ≤0.3mm



Highlights

  • Patented filament winding process to ensure that each carbon fiber layer can be distributed evenly and bonded tightly, enabling its strength to reach a maximum value. Also machine managed process can avoid the random layup errors and result higher accuracy & precision.
  • Patented self-developed 240 degree high temperature resin, tested by DMA / DSC in house.
  • Carbon fiber pre-preg weaving in house, impregnating with own HTG resin system.
  • Using hard mandrel to shape the rim bed, it stays very well under curing without movement, results a much more precise clincher hook. (While others use silicone or three-piece molds)
  • X-Ray machine to inspect the inside layup structure to guarantee the strength from every aspect.
  • First time 220 degree molding; Second time 230 degree baking 8 hours; Third time 230 degree baking 6 hours.
  • Full inspection of tire pressure test at 140psi for every rim.
  • Rim profile designed by American composite expert who use CFD work to optimize the aerodynamics.
  • UCI / ISO test standard; Wind tunnel test in Arizona USA.
