Super Light Pattern (SLP) has been created and improved on the basis of Filament Wound Series, they are fully manufactured by our second generation filament winding machine.
The full automated filament winding process with no random layup errors lead to higher accuracy and precision.
The overlap triangle design on each spoke hole has provided the highest strength.
The single spot reinforcement save around 60g per rim without sacrificing the stiffness.

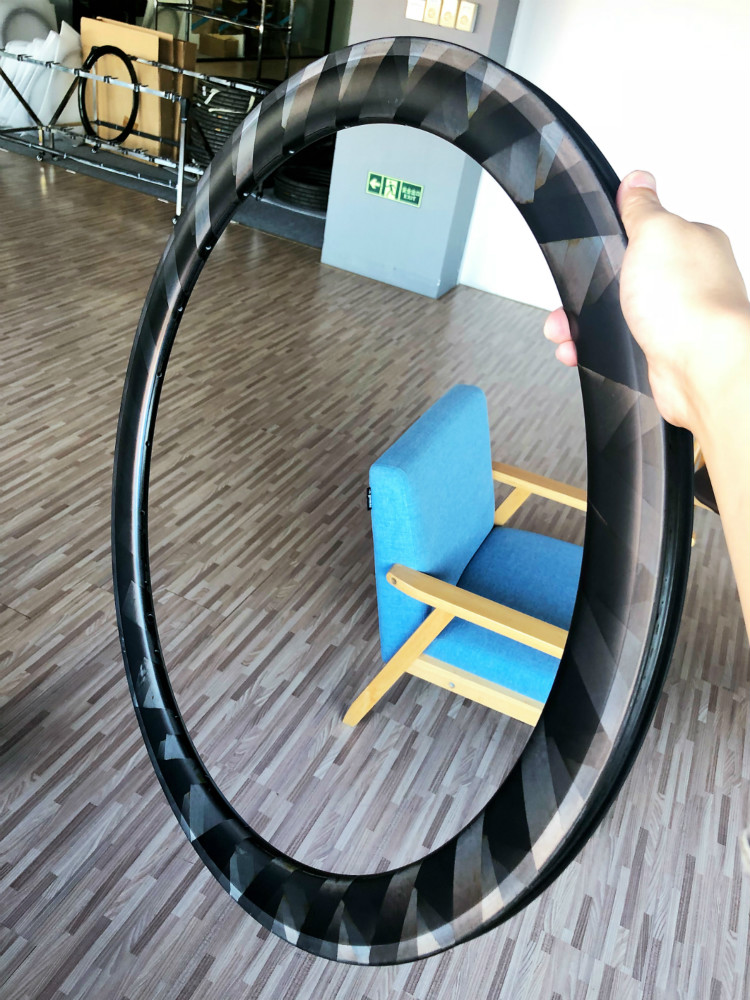

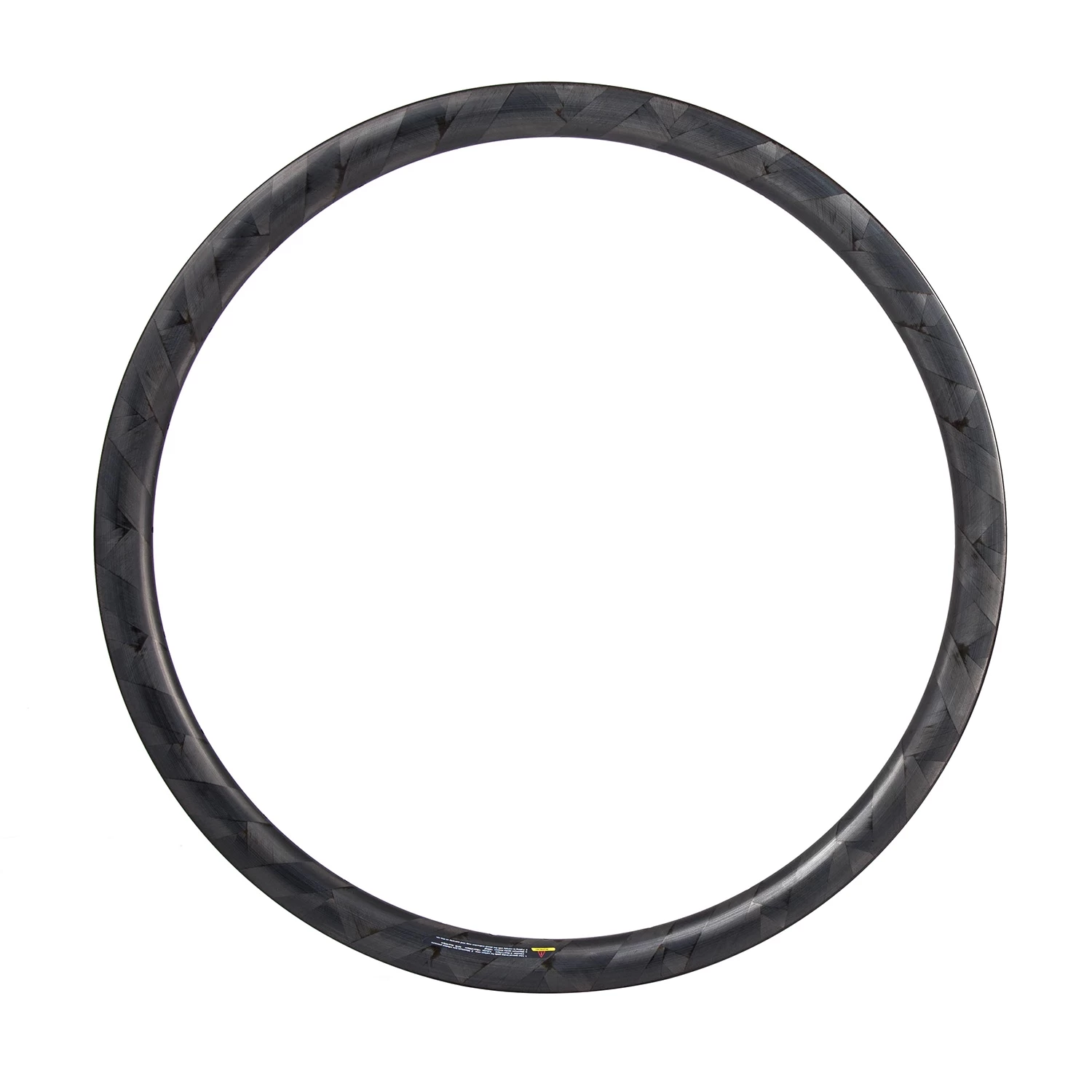

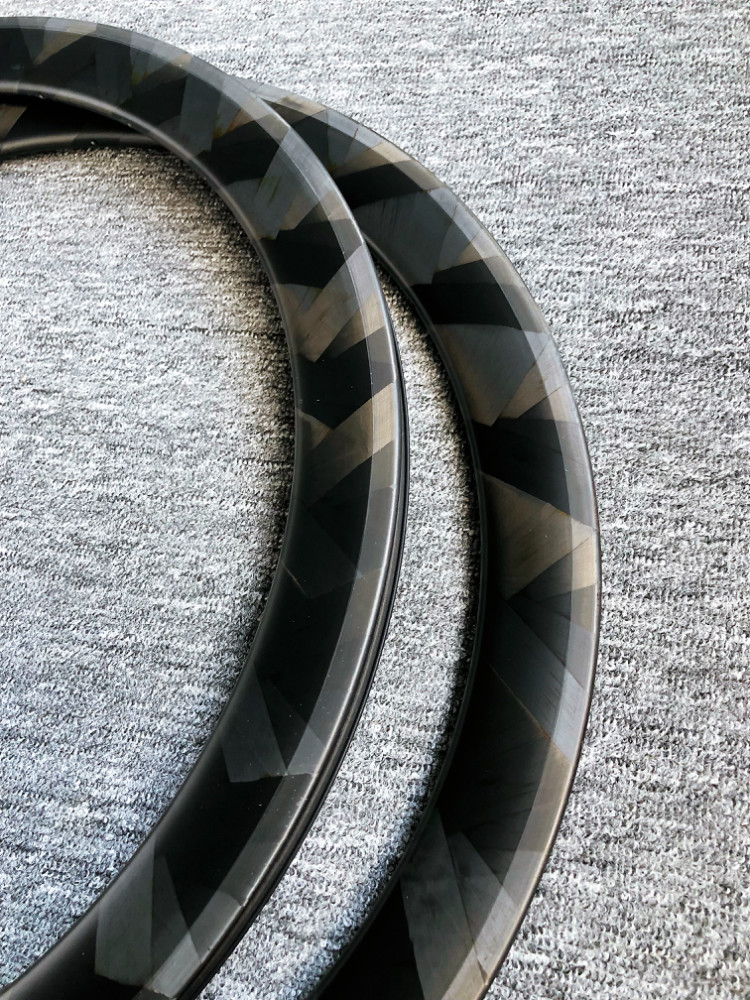

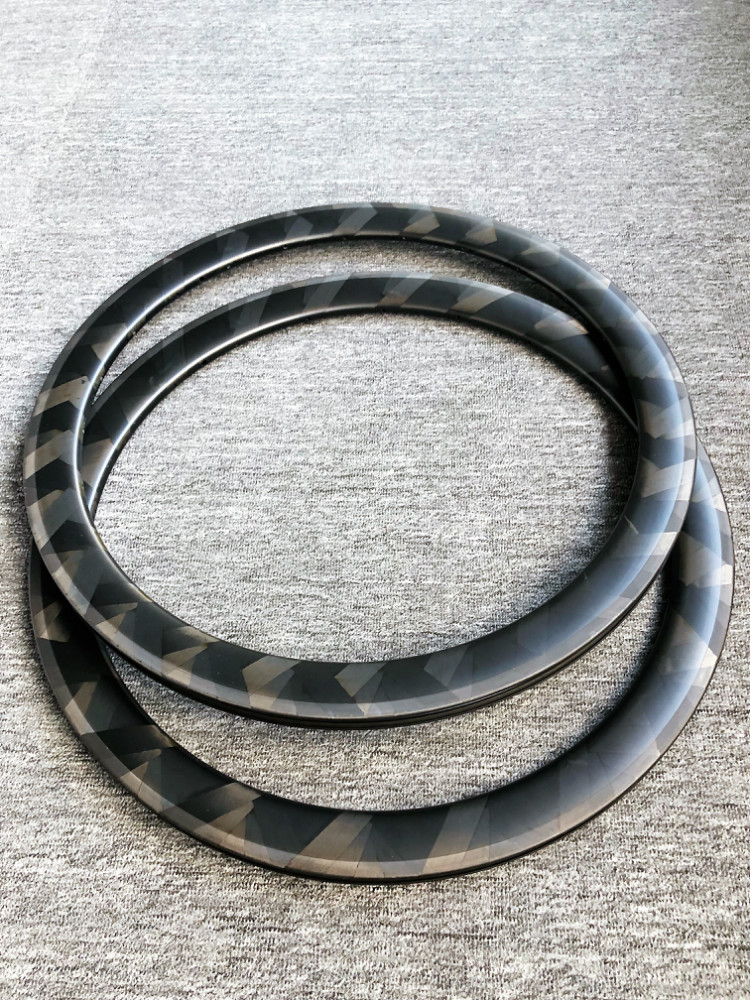

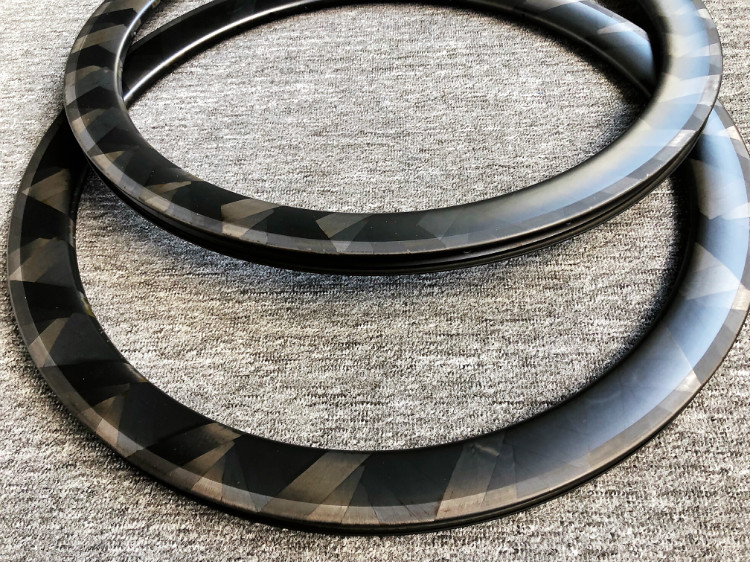

The unique pattern surface is distinct from every carbon rim that is available in the market.
Product Specs
Material: Toray T700 (Imported from Japan / Korea)
Type: 700C road tubeless (rim brake or disc brake)
External Width: 26mm
Internal Width: 19mm
Depth: 38mm
Weave: Unique pattern surface
Finish: Matt / Glossy (Customized with your logo artworks)
Spoke count: 20/24H
Nipple hole: External / Internal
Weight: 425g+/-15g (20H) 435g+/-15g (24H)
ERD: 563.2mm
Rider weight limit: 120KG
Max tire pressure: 125PSI
Max spoke tension: 140KGF
Flatness: ≤0.2mm
Roundness: ≤0.3mm
Highlights
- Patented filament winding process to ensure that each carbon fiber layer can be distributed evenly and bonded tightly, enabling its strength to reach a maximum value. Also machine managed process can avoid the random layup errors and result higher accuracy & precision.
- Patented self-developed 240 degree high temperature resin, tested by DMA / DSC in house.
- Carbon fiber pre-preg weaving in house, impregnating with own HTG resin system.
- Using hard mandrel to shape the rim bed, it stays very well under curing without movement, results a much more precise clincher hook. (While others use silicone or three-piece molds)
- X-Ray machine to inspect the inside layup structure to guarantee the strength from every aspect.
- First time 220 degree molding; Second time 230 degree baking 8 hours; Third time 230 degree baking 6 hours.
- Full inspection of tire pressure test at 140psi for every rim.
- Rim profile designed by American composite expert who use CFD work to optimize the aerodynamics.
- UCI / ISO test standard; Wind tunnel test in Arizona USA.
