27.5er Full Carbon Fiber mtb bike frame 650B mountain bike frame M702

Size: 15/17/19"

Weight: 1100g/17"

Dropout: TA 12*148mm



M702

27.5" MTB Hardtail Light Carbon Frame


Mountain Bike Frame

bike carbon frame

mtb carbon frame



M702

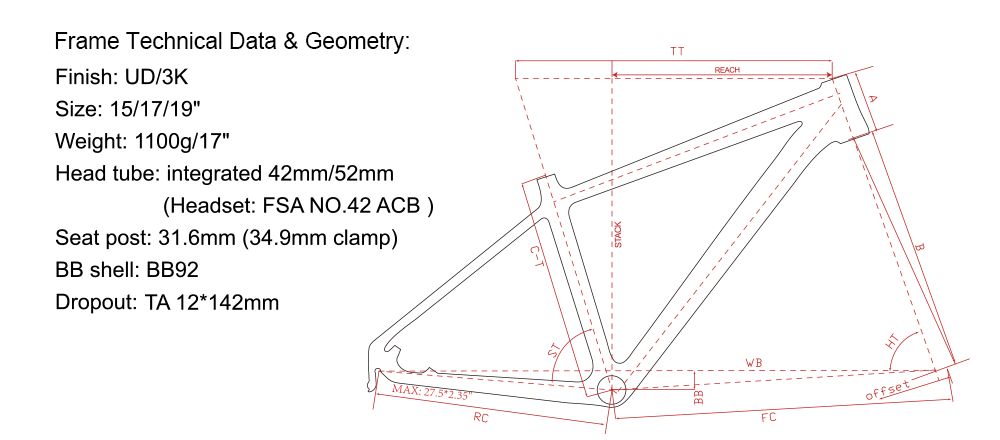

SIZE
C-T A B Offset TT Stack Reach HT ST BB RC WB H/T INSERT B/B INSERT
15"
380 110 490 42 555 594 373 71° 73°  40
430 1036

FSA

NO: 42 ACB

BB92
17"
430 110 490 42 575 594 393 71°
73° 40 430 1056
19" 480 115 490 42 610 598 427 71°
73° 40 430 1192




27.5er MTB Hardtail Carbon Bike Frame M702

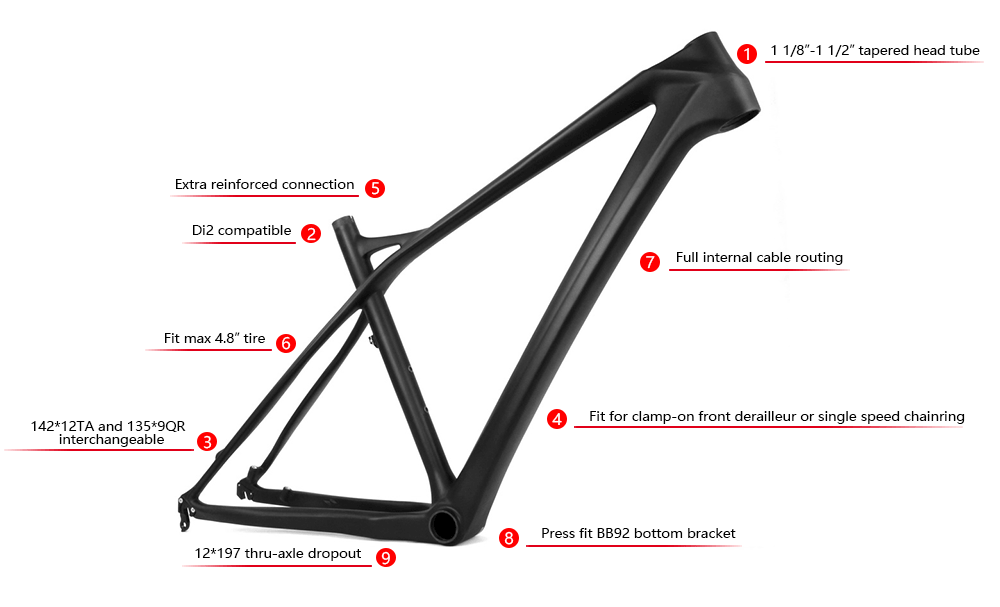

Features:
1) With most popular 1 1/8-1 1/2 tapered head tube

2) Di2 compatible (battery can be hidden in seat post)

3) 12*148mm boost thru axle

4) Round seat tube, fit for clamp-on front derailleur or single speed chainring

5) Extra reinforced connection between top tube and seat tube (for large size 19), improve the strength and stiffness

6) Larger tire clearance design to fit max 2.3 tire

7) Full internal cable routing, better protect cables in mountain riding

8) Available in press fit BB92 bottom bracket, light and stiff.

9) With post mount disc brake system.

10) Front derailleur use slide over cable routing
