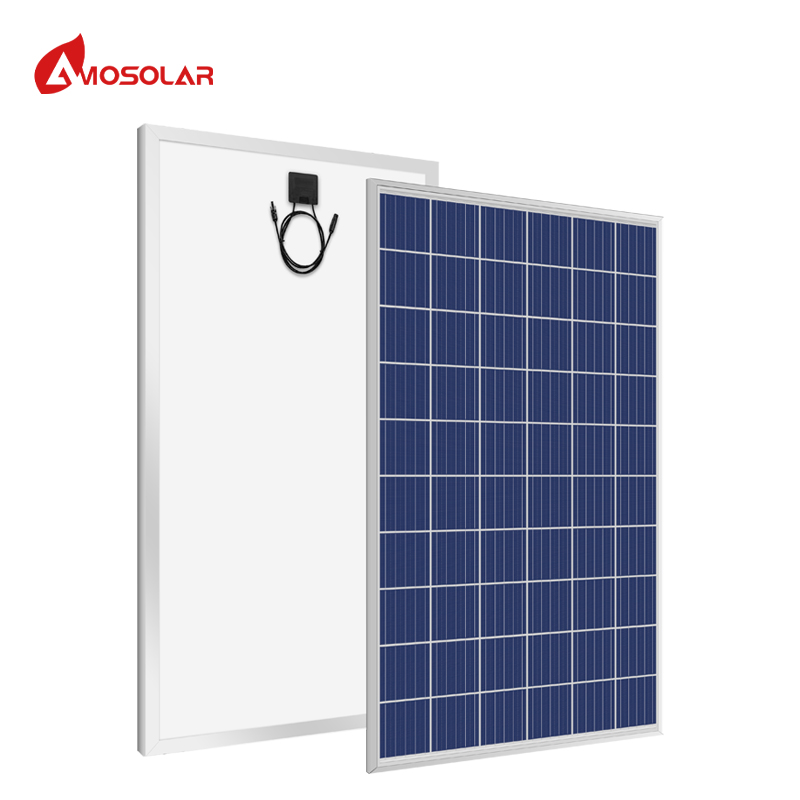

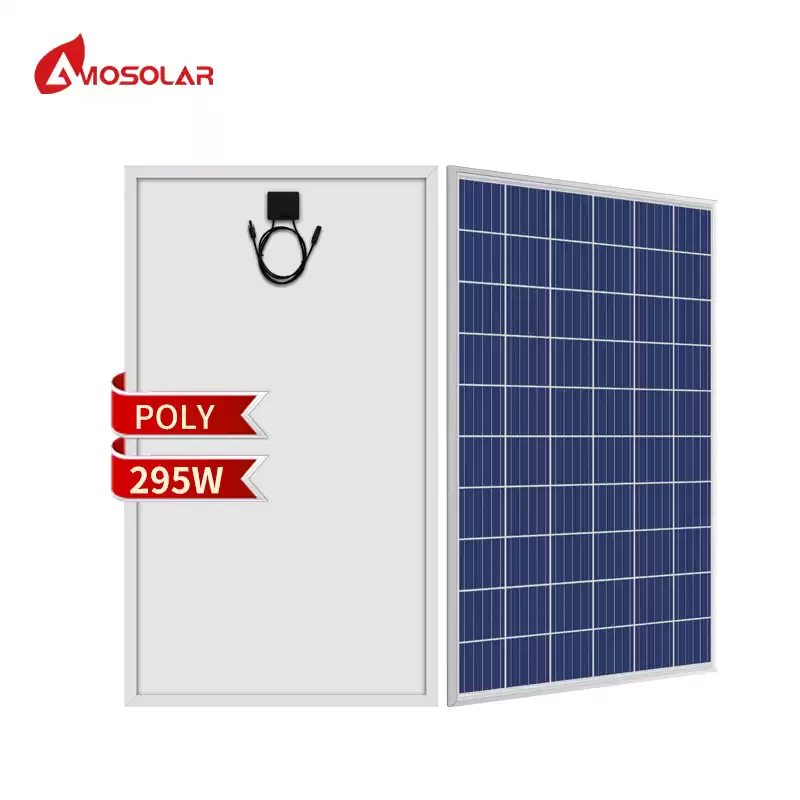

270W-295W Full Cell Polycrystalline PV Panel Chinese Manufactory : The Grade A solar cell ensures higher power output and maximum pv module perfomance.
Electrical Performance Parameters (STC Test)
Model
|
AS270P-60
|
AS275P-60
|
AS280P-60
|
AS285P-60
|
AS290P-60
|
AS295P-60
|
|
Rated Maximum Power at STC
|
270W
|
275W
|
280W
|
285W
|
290W
|
295W
|
|
Open Circuit Voltage (Voc)
|
38.82
|
39.47
|
40.05
|
40.38
|
40.66
|
41.19
|
|
Maximum Power Voltage (Vmp)
|
31.70
|
31.93
|
32.22
|
32.61
|
32.95
|
33.22
|
|
Short Circuit Current (Isc)
|
9.25
|
9.29
|
9.32
|
9.41
|
9.51
|
9.58
|
|
Maximum Power Current (Imp)
|
8.52
|
8.61
|
8.69
|
8.74
|
8.8
|
8.88
|
|
PV Module Efficiency (%)
|
16.60
|
16.90
|
17.21
|
17.52
|
17.83
|
18.13
|
|
Standard
|
Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5
|

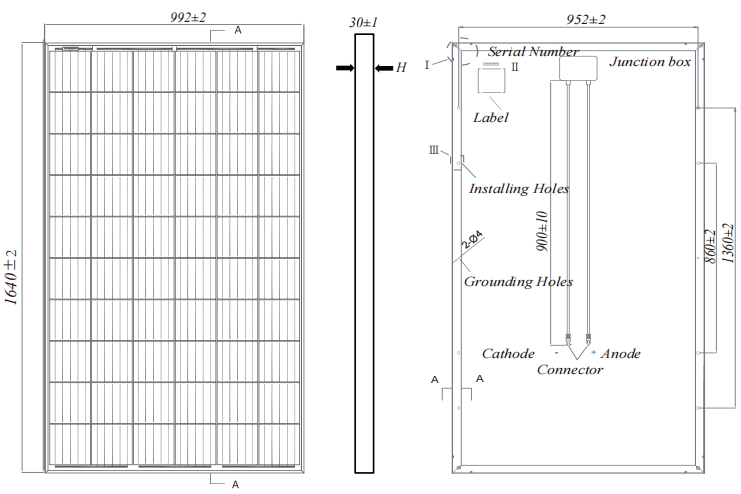

Mechanical Parameters
Layout : 60( 6 × 10 ）

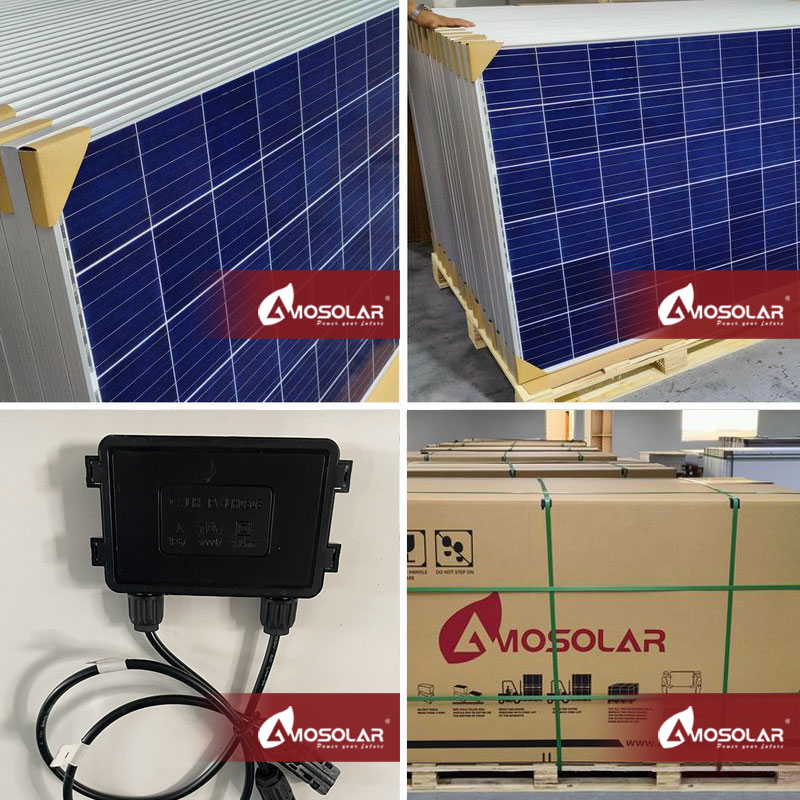

Junction Box : Split junction box, IP67, 3 diodes
Weight: 17.0KG
Cable Length : 300mm (+) / 300mm（-)
Cable Size : 4mm²（IEC)
PV Size: 1640×992×30mm
Packaging: 36 pcs / pallet
1078 pcs / 40HQ container
36 pcs / pallet
432 pcs / 20GQ container
· Question 1: What kind of Solar Cells we have?
Answer 1:Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm, Poly solar cell 156.75*156.75mm.
· Question 2: What is the lead time?
Answer 2:Normally 15 working days after advance payment.
· Question 3: What is your monthly capacity?
Answer 3:Monthly capacity is about 200MW.
· Question 4:What is the warranty period, how many years?
Answer 4: 12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power output warranty for bifacial solar panel.
· Question 5: How is your technical support?
Answer 5: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
