Technical Specifications:
Backlight 50,000 hr 1/2 life at 25 °C (77 °F)
Input Type Keypad / Touch
Product Family: PanelView Standard Terminals
Product Type: Operator Terminals
Display Type: Color active matrix TFT
Display Area: 115 x 86 mm (4.54 x 3.4 in.).
Resolution: 320 x 234
Touchscreen: Touch cells: 128 Actuation: 1 million presses
Keypad function keys: 10 function keys (F1…F10)
Application memory: 170 KB application runtime; 240 KB nonvolatile memory
(application objects plus text and bitmaps)
Communication ports: Remote I/O (RIO); RS232 (printer)
Input Voltage range: 85…264V AC, 47…63 Hz
Accessories: function key legend inserts; Anti-glare overlays; backlight replacements;
Real-time clock replacements; Mounting hardware; Power supply and terminal block; interface modules;

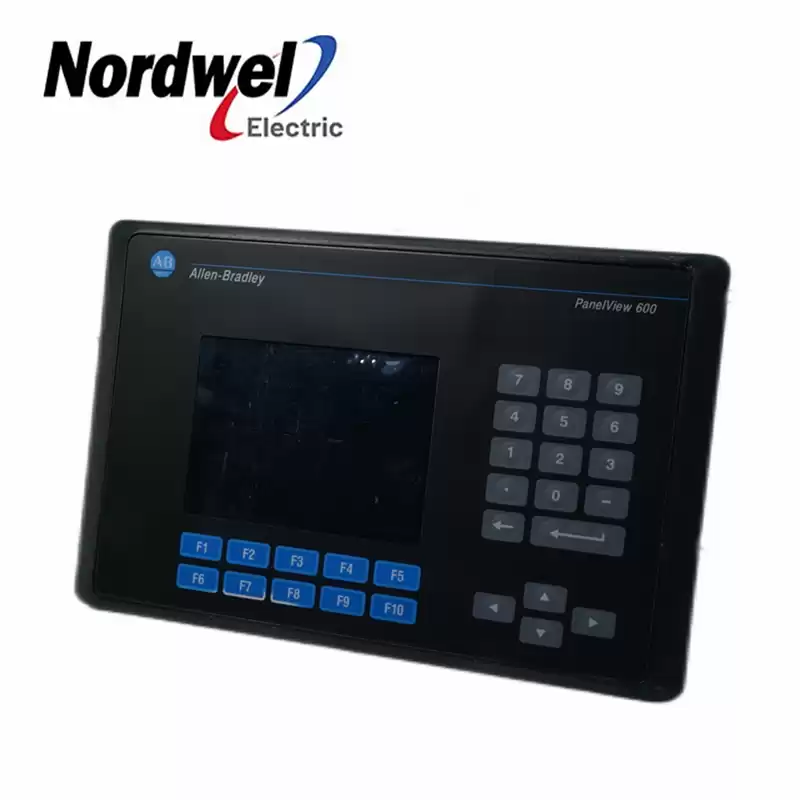

Part Number/Catalog No. 2711-B6C1
Product Line Panelview 600
Display Size 5 in.
Communication Remote I/O and RS-232 Printer
Input Power 85-264 VAC
Memory 240 KB
Communication Cable 2711-NC13
Series A, B, or C
Battery (Time Clock) 2711-NB3 or 2711-NB4
Product Lifecycle Status* Discontinued/Obsolete
