Technical Specifications for 2711-B6C2
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Display Size
|
5 inches
|
|
Part Number/Catalog No.
|
2711-B6C2
|
Memory
|
256 MB RAM
|
|
Module Type
|
Operator Terminals
|
Flash Storage
|
512 MB
|
|
Manufacture Year
|
2021
|
Input Power
|
85 to 264 Volts AC
|
|
Product Package
|
Original Package
|
UPC
|
10662072660185
|

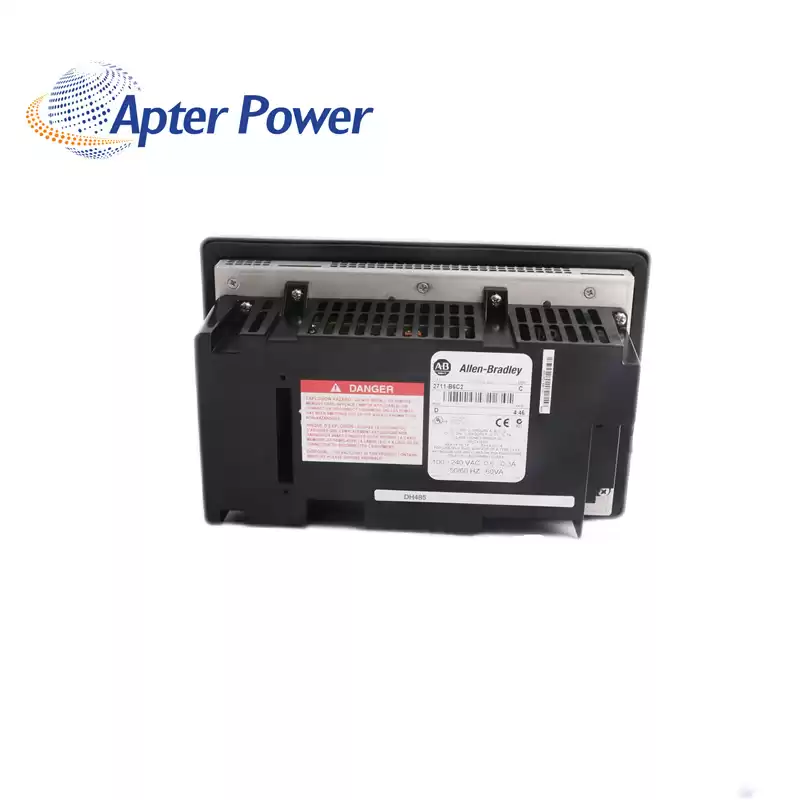

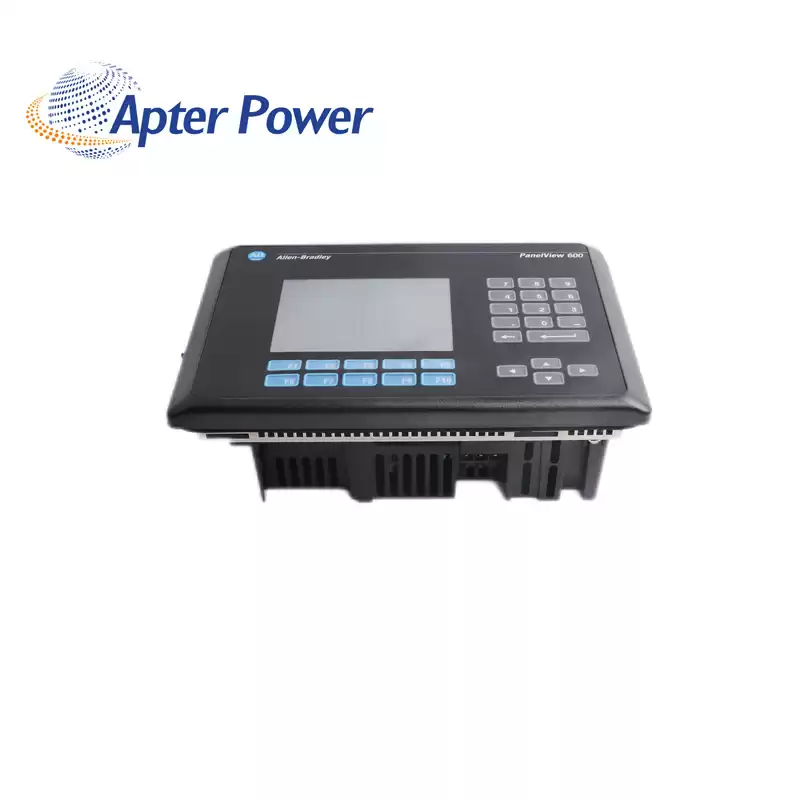

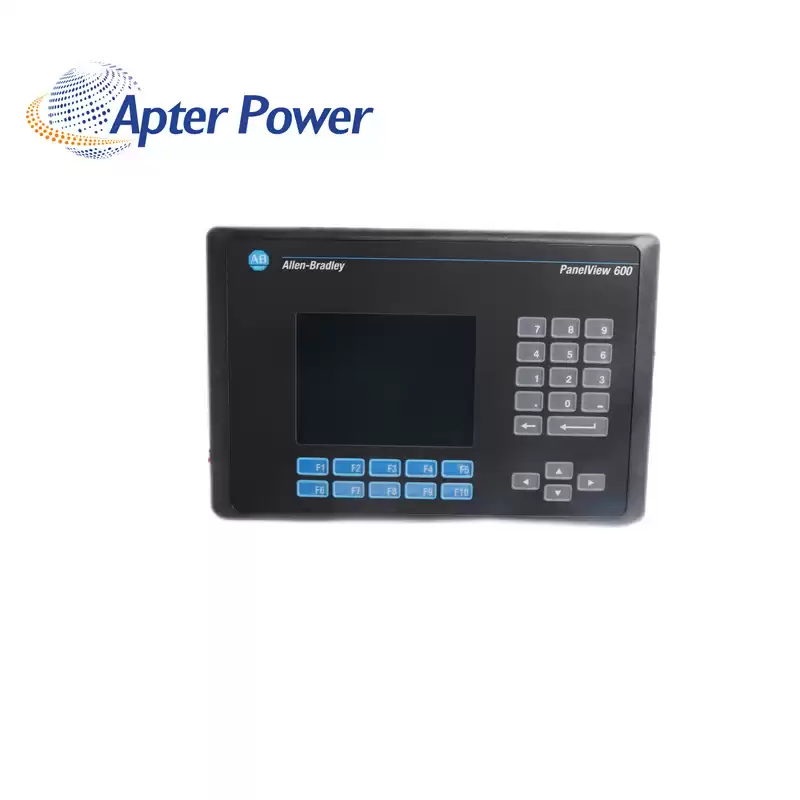

About 2711-B6C2
|
The 2711-B6C2 offers a single communication port supporting DH485 protocol. DH485 is a legacy communication protocol, which is especially designed for factory-floor communication. The embedded DH485 is basically an RS232 serial interface which supports peer-to-peer communication. If planning to implement multi-node communication, the 2711-B6C2 must be connected to a DevoceNet network with the use of the 1747-UIC interface converter. This allows the 2711-B6C2 to connect to a DH485 network in daisy-chain topology.
The 2711-B6C2 is powered with an external voltage supply range of 85 - 264 VAC. It is installed with an internal memory amounting to 240 KB. The 2711-B6C2 has an internal processor with speed up to 1 GHz. This module’s HMI display is measures 5 inches diagonally, with a field replaceable backlight, and comes with a full-color graphics. The screen transition rate for the 2711-B6C2 is up to 70% faster than it is for other terminals and it comes with an increased memory capacity ranging from 64 MB of RAM to 256 MB of RAM.
|
