Description:

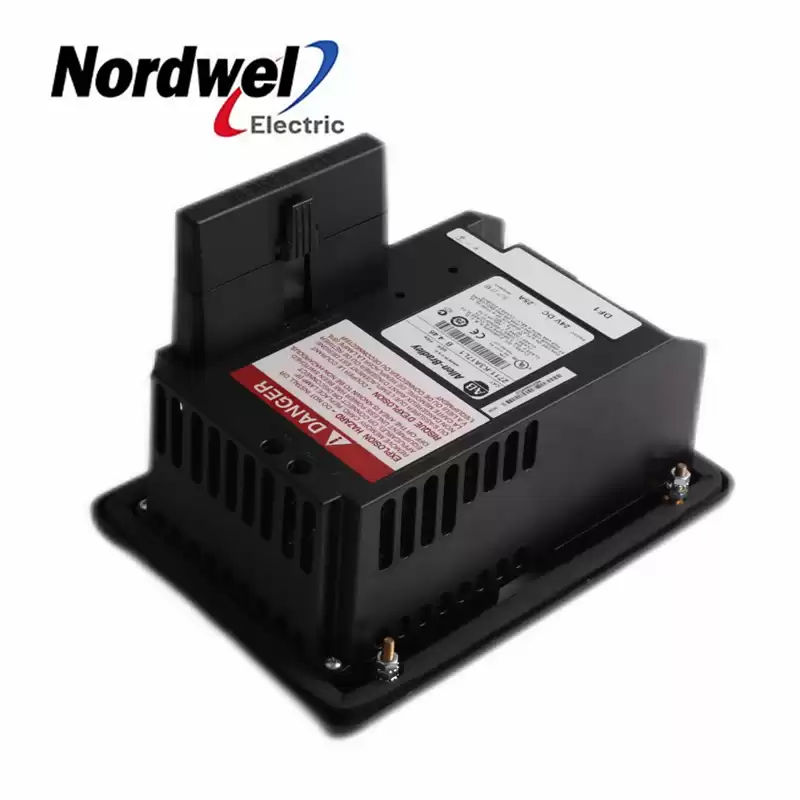

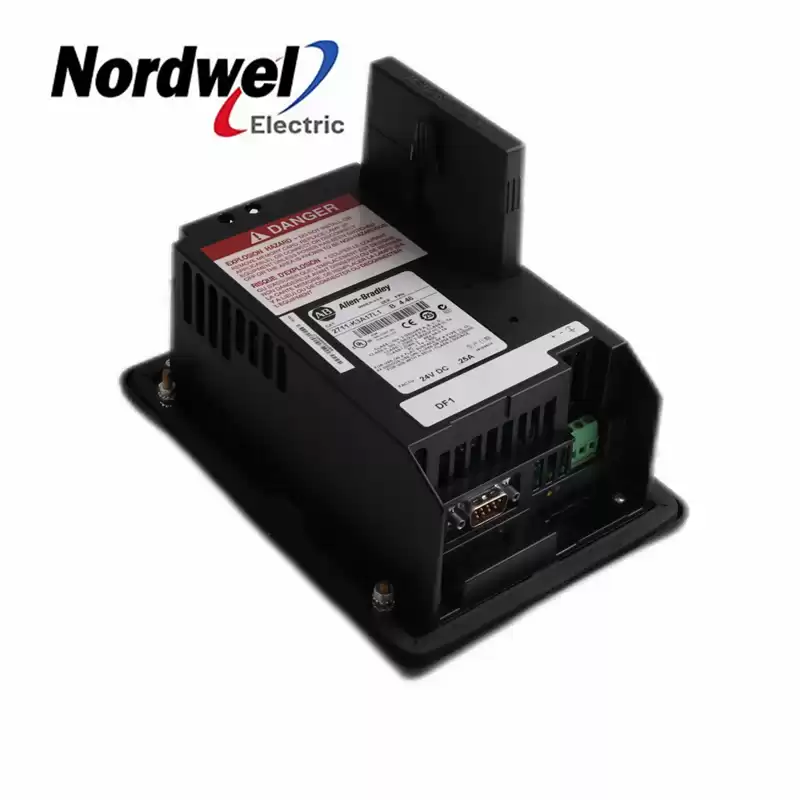

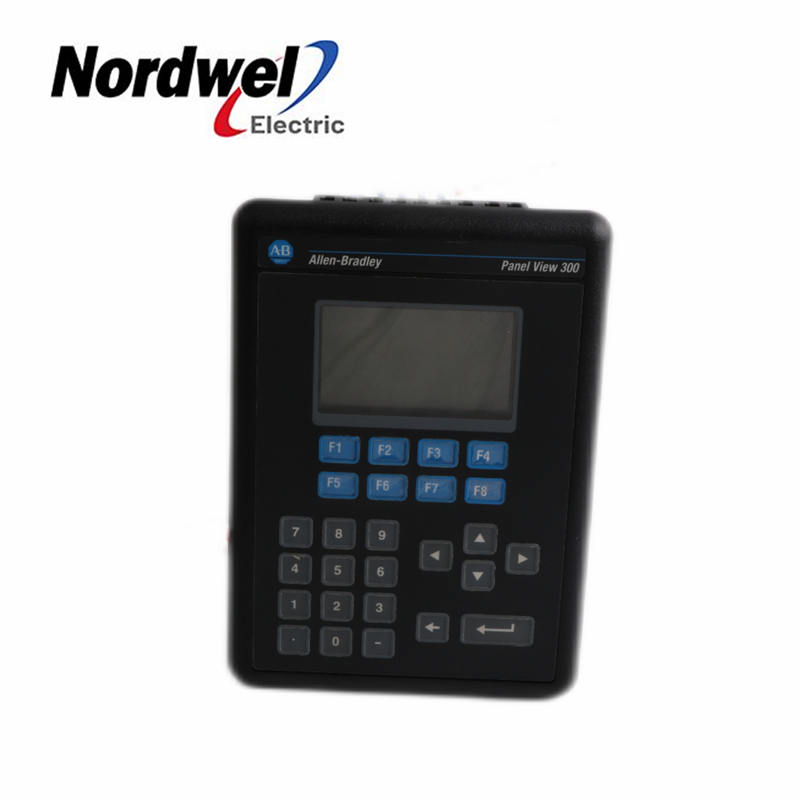

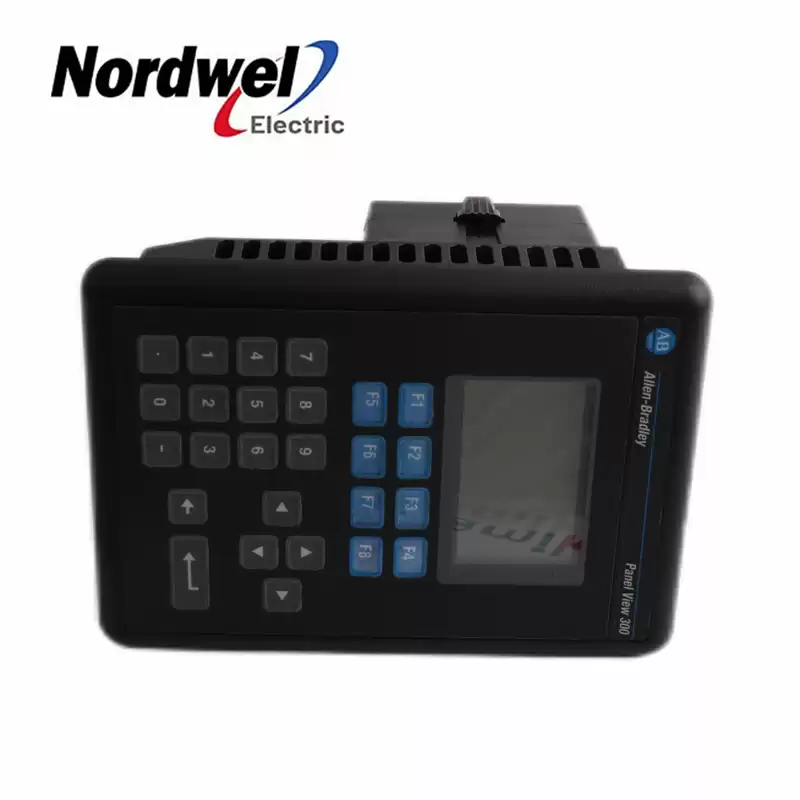

The 2711-K3A17L1 is a Panelview 300 Standard Operator Terminal. This operator terminal
is powered by an external 18-32V DC supply voltage and has a 3-inch monochrome display with embedded
RS232 port that supports DF1 protocol. It has Eight (8) Function keys and a Keypad operator interface.
Technical Specifications for 2711-K3A17L1
Backlight 100,000 hr LED backlight life
Brand
Manufacturer: Automation
Product Family: PanelView Standard Operator Terminals
Product Type: PanelView 300 Standard Operator Terminals
Display Type: Monochrome transflective LCD with LED backlight
Display Area: 73 mm (w) x 42 mm (h) 2.87 in. (w) x 1.67 in. (h)
Resolution: 128 x 64 Pixels
Keypad Assembly: 8 function keys (F1…F8); Cursor keys; Numeric entry keys
Application memory: 170 KB application runtime; 240 KB nonvolatile memory
(application objects plus text and bitmaps)
Communication ports: RS232 (DF1)
Input Voltage range: 18…32V DC (24V DC nom)
Enclosure: NEMA Type 12/13, 4X (Indoor use only), IP54, IP65
Status Indicators: COMM: Green Fault: Red
Product Line Panelview 300
Display Size 3 inches
Display Color Monochrome
Input Type Keypad
Communication RS-232 (DF1) Communication Port
Input Power 24 Volts DC
Memory 240 KB
Communication Cable 1761-CBL-PM02
