About product:

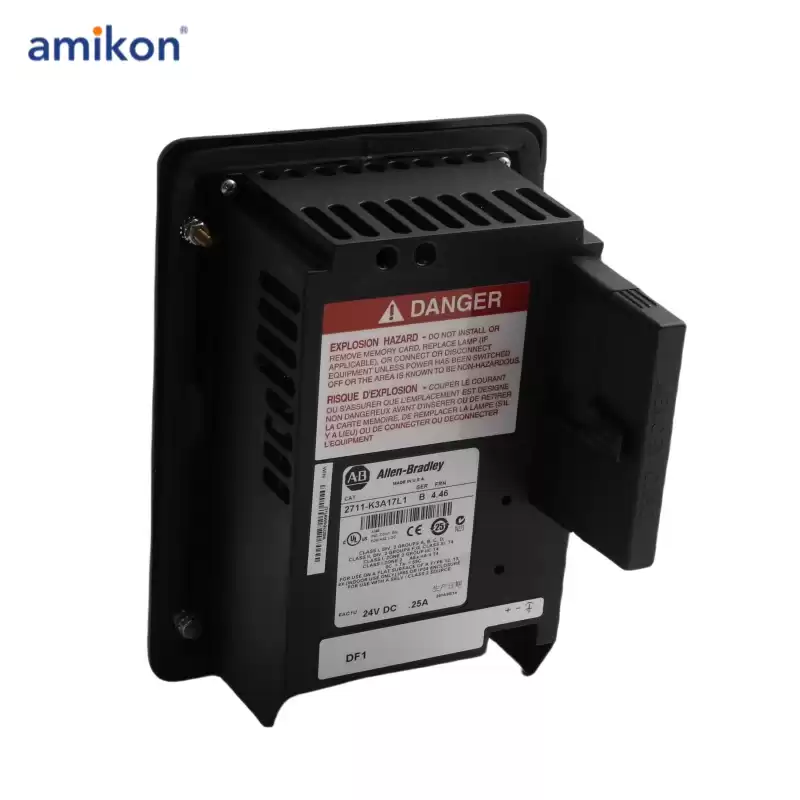

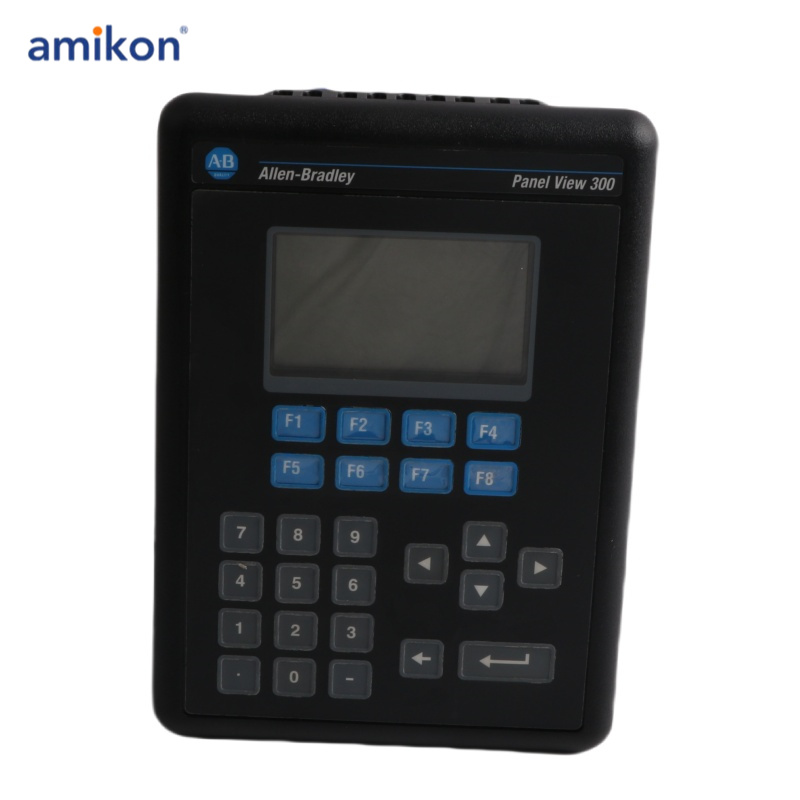

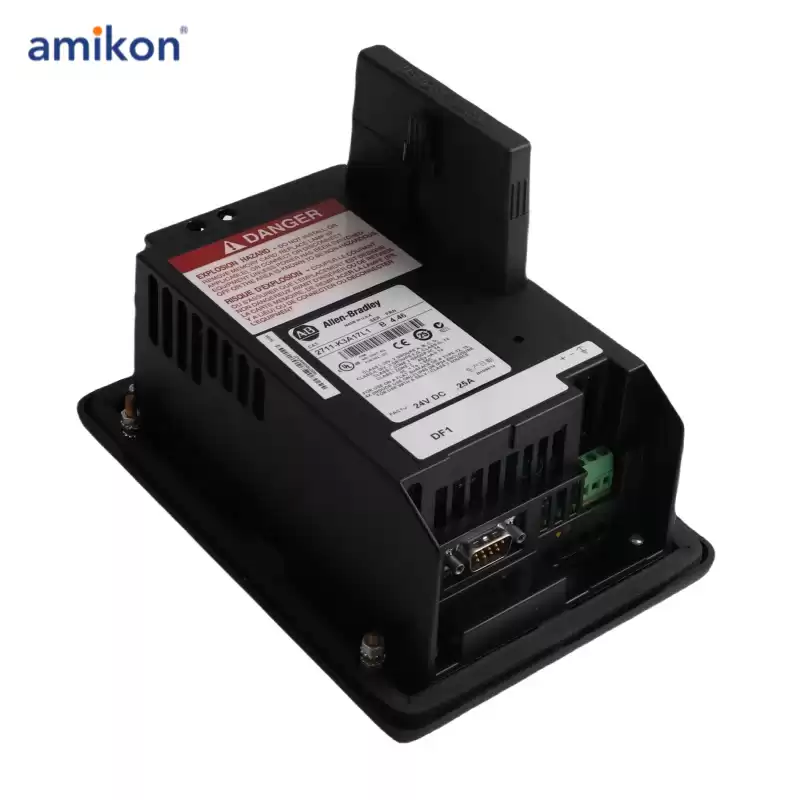

The 2711-K3A17L1 PanelView Standard 300 Terminal is a part of a widely used standard terminal series, though it is now discontinued. This terminal is designed for controlling machinery and applications, with an ATA PC memory card slot for storing application data. It features a 3-inch monochrome transflective LCD with an LED backlight, providing a resolution of 128 x 64 pixels, which makes it well-suited for use in brightly lit environments. The LED backlight is durable, lasting up to 100,000 hours. Additionally, it includes 8 function keys (F1-F8) for initiating various functions on the display, along with 4 arrow keys for navigation (up, down, left, and right), and a numeric keypad for data input. The terminal is equipped with an RS-232 port for point-to-point communication, enabling connection to various controllers and facilitating application transfers between a personal computer and the terminal.
Specifications:
|
Feature
|
Specification
|
|
Part Number/Catalog No.
|
2711-K3A17L1
|
|
Product Family
|
PanelView Standard Operator Terminals
|
|
Product Type
|
PanelView 300 Standard Operator Terminals
|
|
Display Type
|
Monochrome transflective LCD with LED backlight
|
|
Display Area
|
73 mm (w) x 42 mm (h) / 2.87 in. (w) x 1.67 in. (h)
|
|
Resolution
|
128 x 64 Pixels
|
|
Keypad Assembly
|
8 function keys (F1…F8); Cursor keys; Numeric entry keys
|
|
Input Voltage Range
|
18…32V DC (24V DC nominal)
|
|
Enclosure
|
NEMA Type 12/13, 4X (Indoor use only), IP54, IP65
|
|
Status Indicators
|
COMM: Green, Fault: Red
|
|
Product Line
|
PanelView 300
|
|
Display Size
|
3 inches
|
|
Display Color
|
Monochrome
|
|
Input Type
|
Keypad
|
