Technical Specifications for 2711-K3A5L1
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Display Size
|
3 in.
|
|
Part Number/Catalog No.
|
2711-K3A5L1
|
Memory
|
240 KB
|
|
Module Type
|
Monochrome Keypad
|
Input Voltage range
|
18…32V DC
|
|
Manufacture Year
|
2021
|
Input Power
|
24 VDC
|
|
Product Package
|
Original Package
|
UPC
|
10611320130888
|
About 2711-K3A5L1
|

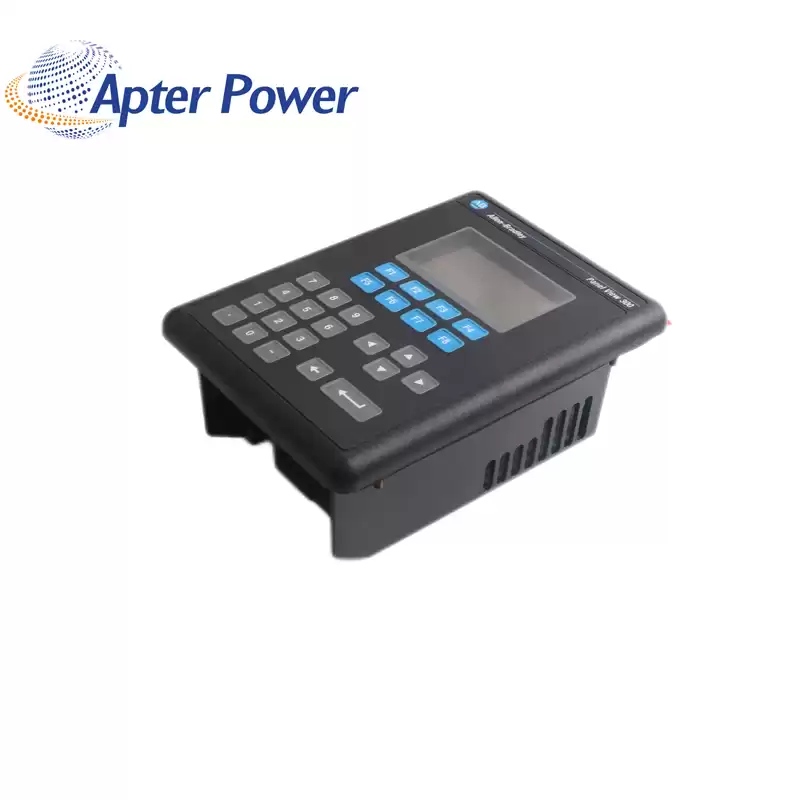

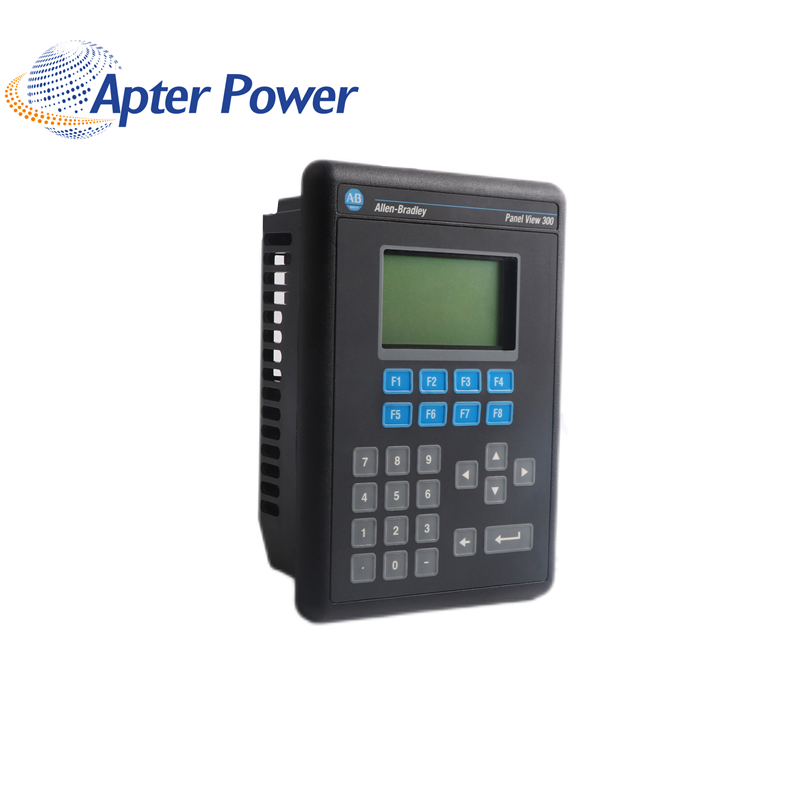

The 2711-K3A5L1 Panelview 300 is a product by that has a keypad operator input with eight function keys (F1 to F8) and a 3-inch LCD monochrome display with a LED backlight. It has a display dimension of 73 x 42 millimeters (2.87 x 1.67 inches), and a display resolution of 128 x 64, with a 100,000-hour, LED back-light standby life.
The 2711-K3A5L1 comes with an irreplaceable battery, an internal memory of 240 KB, and a runtime application memory of 170 KB. It accepts applications developed with PanelBuilder32 software. It has a DH-485 (RS-232) communication port and supports ATA Memory card. The input voltage range of the 2711-K3A5L1 is 18-32 Volts DC with 24 Volts DC nominal value and a maximum power consumption of 10 Watts (0.42 amps at 24 Volts DC).
The 2711-K3A5L1 is capable of communicating with Programmable Logic Controllers (PLC) such as PLC5, MicroLogix, SLC500 and Logix family of controllers. For storing application data, the 2711-K3A5L1 has an internal 240KB non-volatile memory along a 170KB runtime memory. The non-volatile memory may be expanded by installing an ATA memory card to accommodate larger files.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
